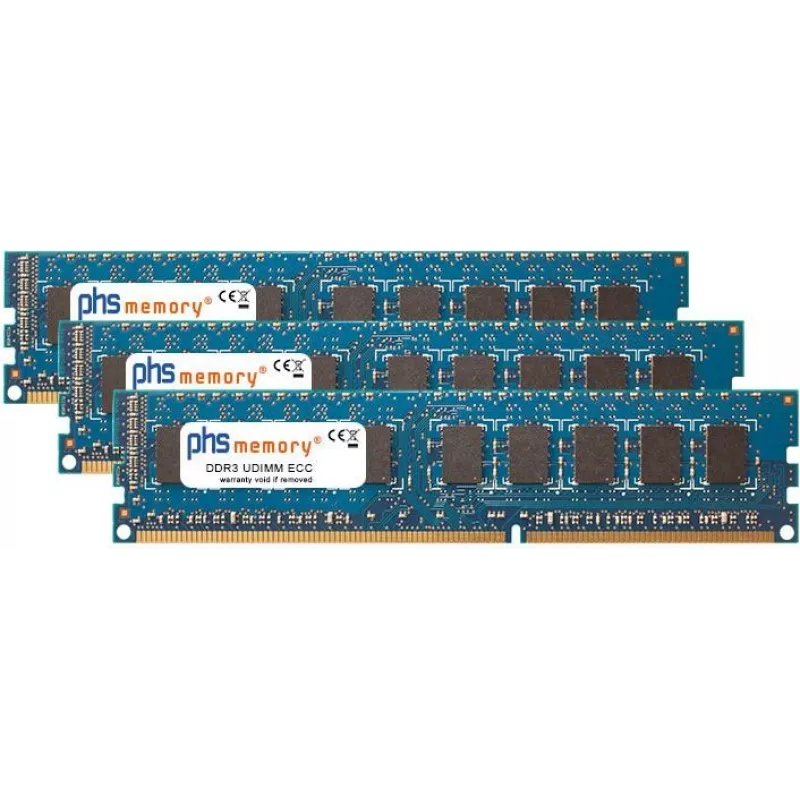

PHS-memory 24GB (3x8GB) DDR3 ECC UDIMM 1333MHz PC3-10600E Triple-Channel kit pre Supermicro X8DAE SP580232

System administrators upgrading a Supermicro X8DAE server or workstation can count on this PHS-memory 24GB triple-channel kit to deliver reliable ECC performance. Three 8GB DDR3 UDIMMs run at 1333MHz with CL9 latency, giving dual-socket Xeon platforms the bandwidth and error correction needed for virtualization, database, and compute-heavy workloads.

Key specifications

• Total capacity: 24GB (3 x 8GB modules)
• Memory type: DDR3 UDIMM with ECC
• Speed: 1333MHz (PC3-10600E)
• Form factor: 240-pin unbuffered DIMM
• Latency: CL9, dual rank (2Rx8)
• Voltage: 1.5V
• Compatibility: Supermicro X8DAE and similar triple-channel platforms

Why choose it

This kit is validated for the Supermicro X8DAE, eliminating guesswork and ensuring stable operation. ECC detects and corrects single-bit memory errors, reducing the risk of data corruption in always-on server environments. Triple-channel configuration maximizes memory throughput for demanding applications.

Ideal use cases

• Upgrading Supermicro X8DAE servers and workstations
• Virtualization hosts running VMware, Hyper-V, or KVM
• Database servers and business-critical applications
• Technical workstations for CAD, simulation, or rendering

Good to know

Installation is straightforward: insert the three modules into the matching slots for triple-channel operation. The unbuffered ECC design is compatible with Xeon E5600 and similar CPUs that support ECC UDIMMs. Always verify motherboard BIOS is up to date for best compatibility.
