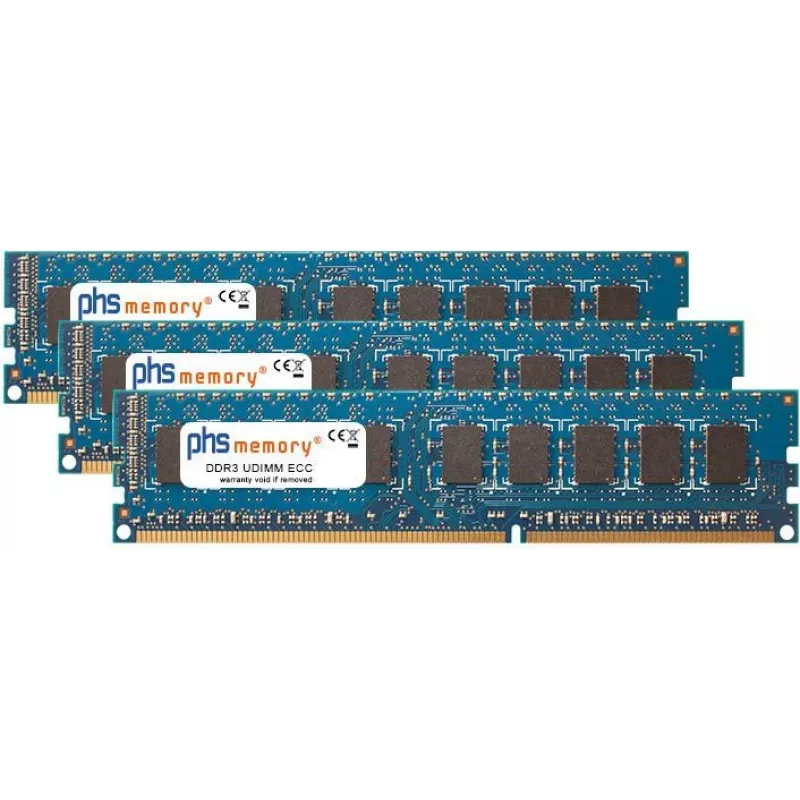

PHS-memory 24GB (3x8GB) DDR3 ECC UDIMM 1333MHz PC3-10600E Triple Channel Kit pre Supermicro X8DT6 SP580291

Server memory bottlenecks can cripple virtualization and database workloads, but this 24GB DDR3 ECC UDIMM kit eliminates stutter and data corruption risks on Supermicro X8DT6 platforms. Three matched 8GB modules deliver triple-channel bandwidth, ensuring your dual-socket Xeon board handles concurrent tasks without swapping to disk.

Who is it for

System integrators and IT administrators upgrading legacy Supermicro X8DT6 servers or workstations. Ideal for ESXi hosts, NAS appliances, or memory-hungry applications that demand error-correcting reliability and stable 1333MHz operation.

Main features

• 24GB total capacity (3x8GB) configured as a triple-channel kit for balanced performance
• DDR3 ECC UDIMM modules with 240-pin form factor and 1.5V low voltage
• PC3-10600E specification with 1333MHz data rate and CL9 latency
• Dual-rank design (2Rx8) for optimal compatibility with X8DT6 memory controllers
• Unbuffered ECC technology detects and corrects single-bit errors on the fly

Specifications

• Memory type: DDR3
• Total capacity: 24GB
• Module quantity: 3
• Module capacity: 8GB each
• Form factor: UDIMM (Unbuffered DIMM)
• Error correction: ECC
• Speed: 1333MHz (PC3-10600E)
• Pin count: 240-pin
• Voltage: 1.5V
• CAS latency: CL9
• Rank: Dual Rank (2Rx8)
• Chip organization: x8
• Compatibility: Supermicro X8DT6 motherboard
• Application: Server / Workstation
• Kit configuration: Triple Channel

Tips

Install modules in the three blue DIMM slots on the X8DT6 to enable triple-channel interleaving. Verify BIOS version supports 8GB UDIMMs, and run a memory test after installation to confirm ECC functionality. For mixed configurations, match this kit's rank and speed to avoid downclocking.
