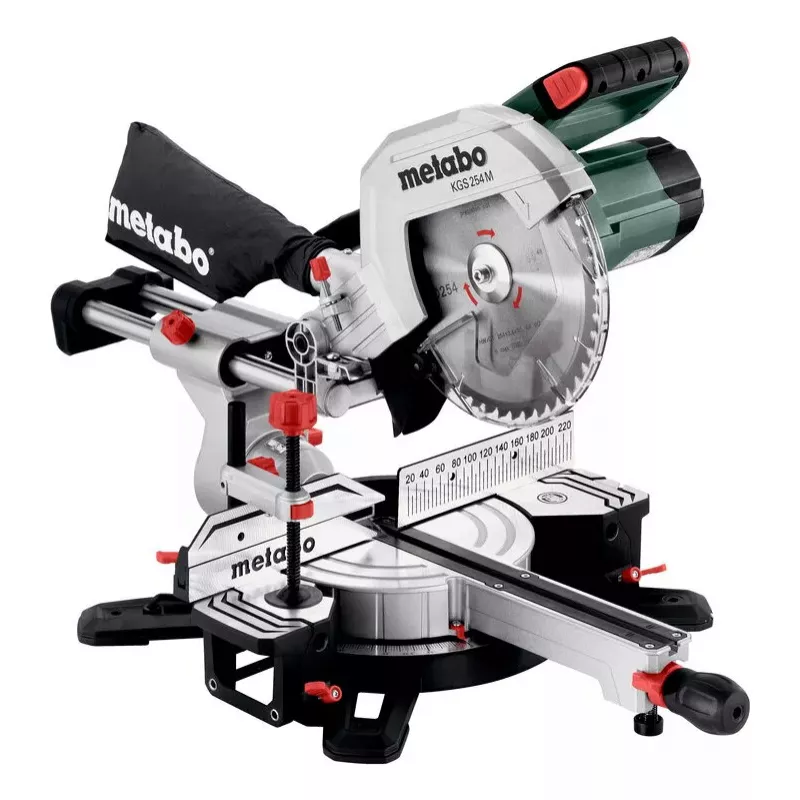

Píla Metabo KGS 254 M

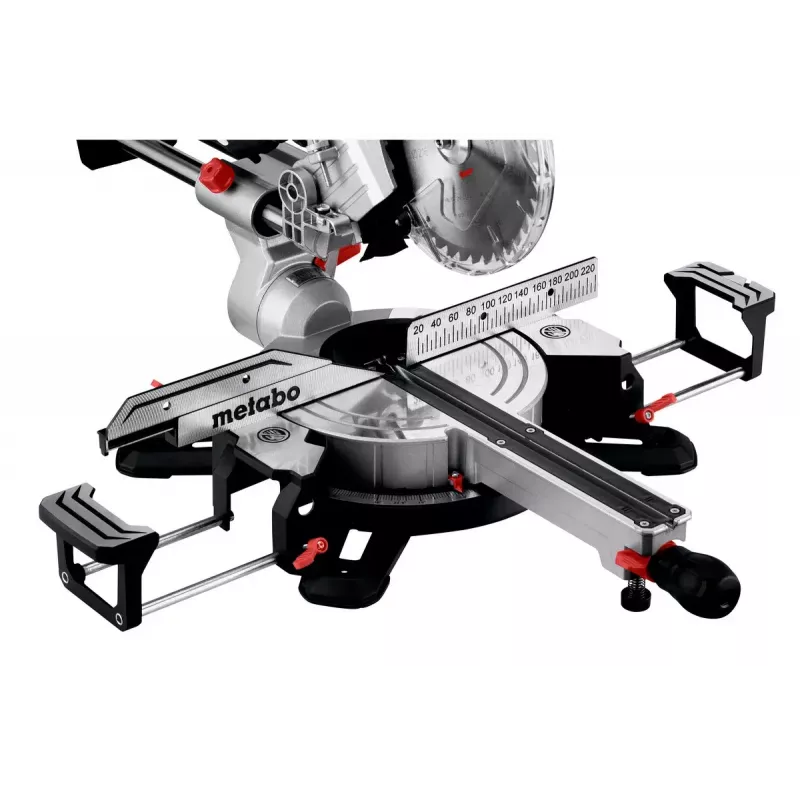

The Metabo KGS 254 M is a mobile crosscut and mitre saw with sliding function designed for precise, flexible workshop and jobsite use. It combines a powerful 1450 W motor with a compact, robust die-cast aluminium construction and delivers a no-load speed up to 4500 RPM. The saw supports mitre cuts to the left up to 50° and blade inclination from -2° to 47°, enabling standard mitres, bevels and undercuts. Integrated features include a Precision Cut Line (PCL) shadow cutting line, effective dust extraction, extendable table wings and a quick-action clamp for secure fixing of work pieces.

Advantages

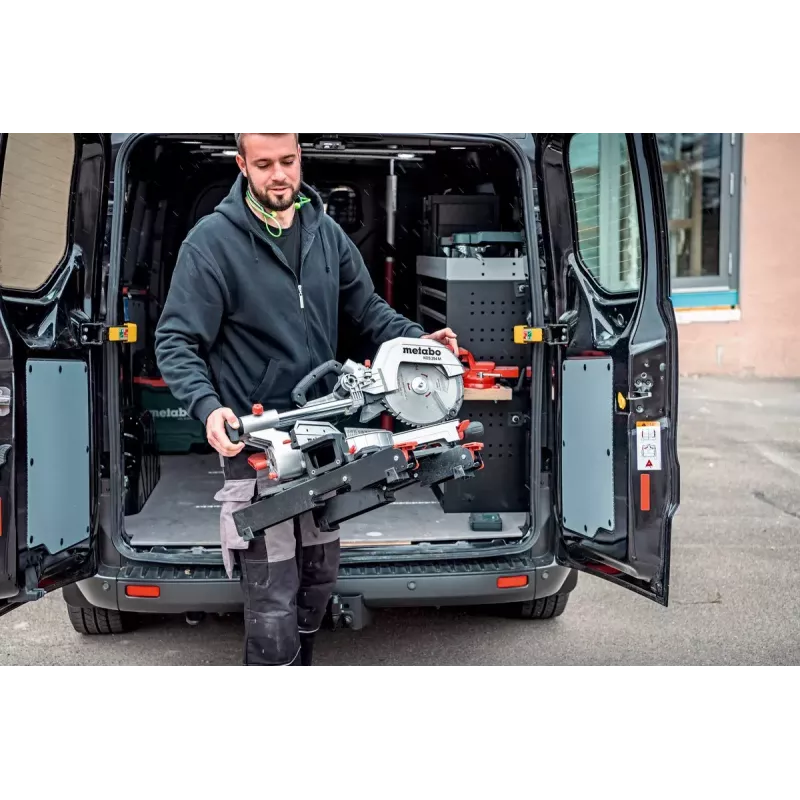

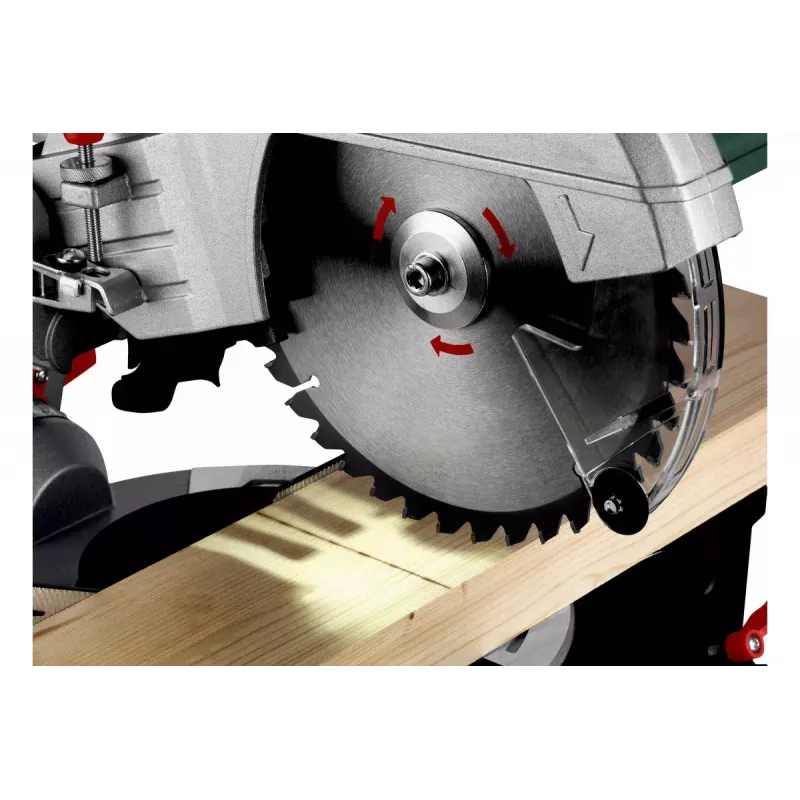

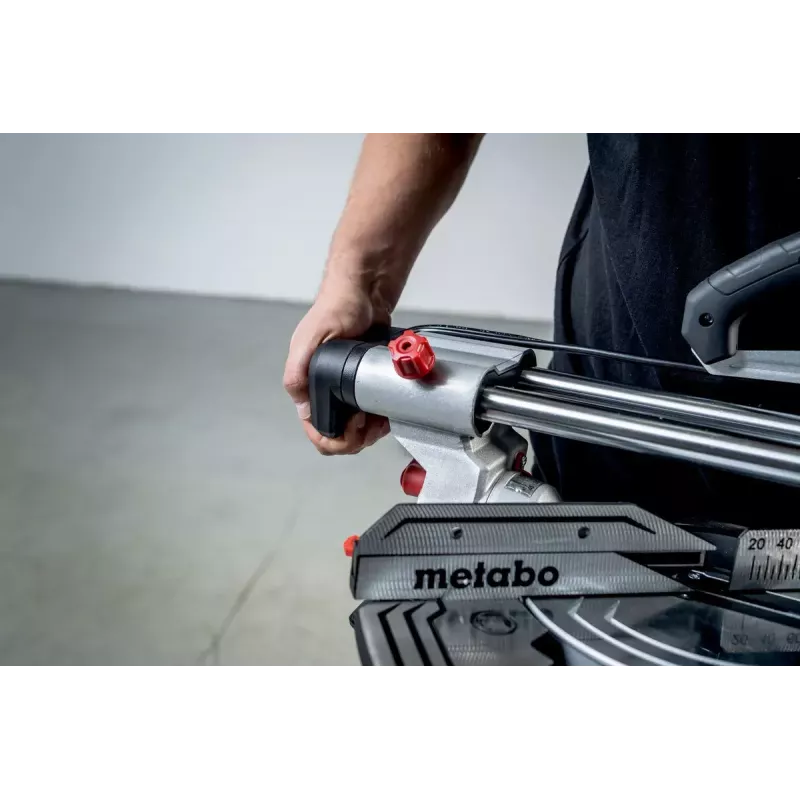

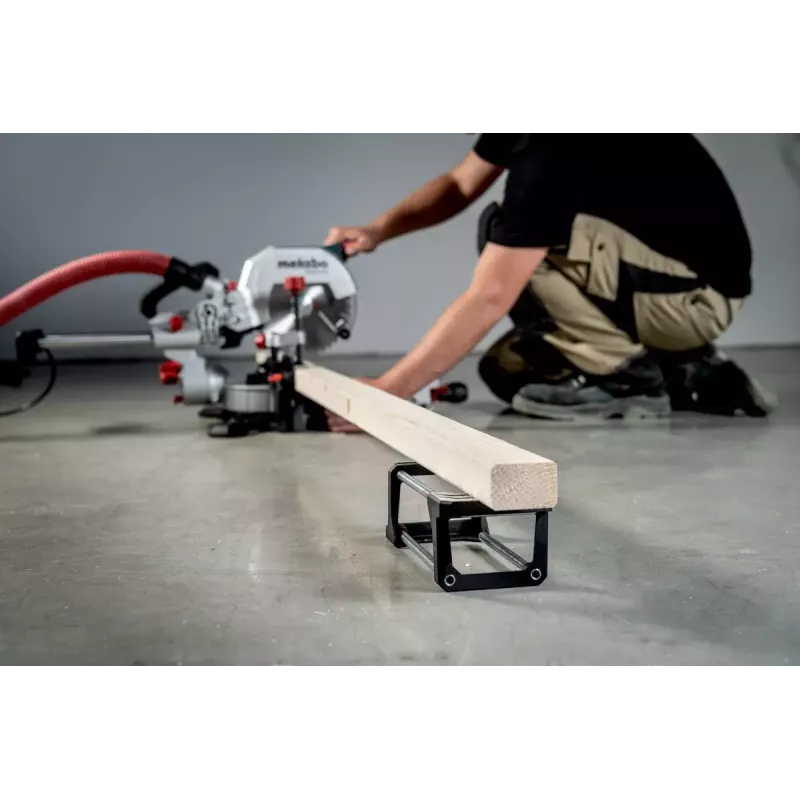

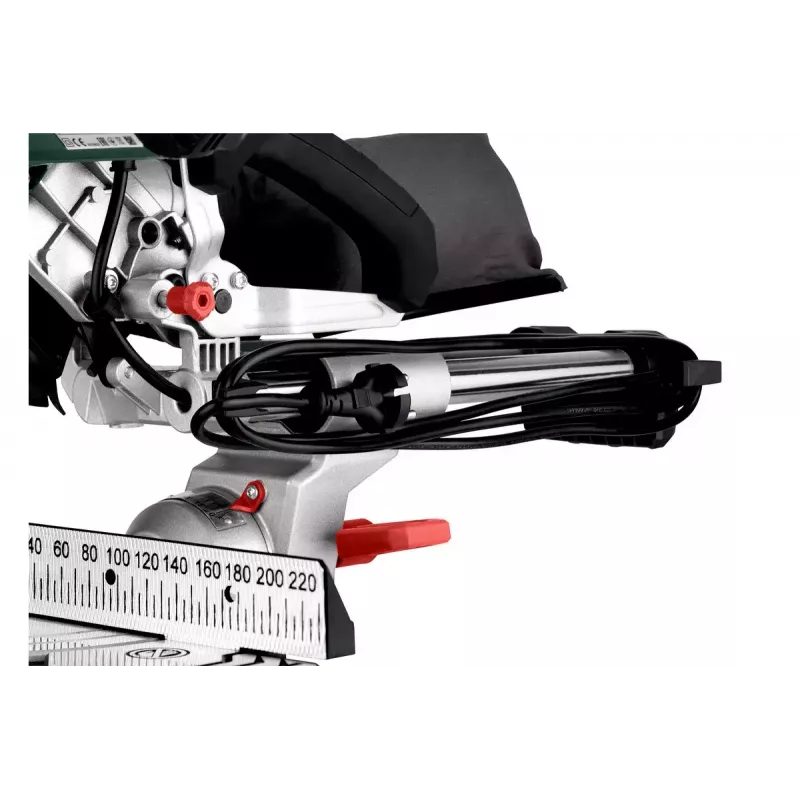

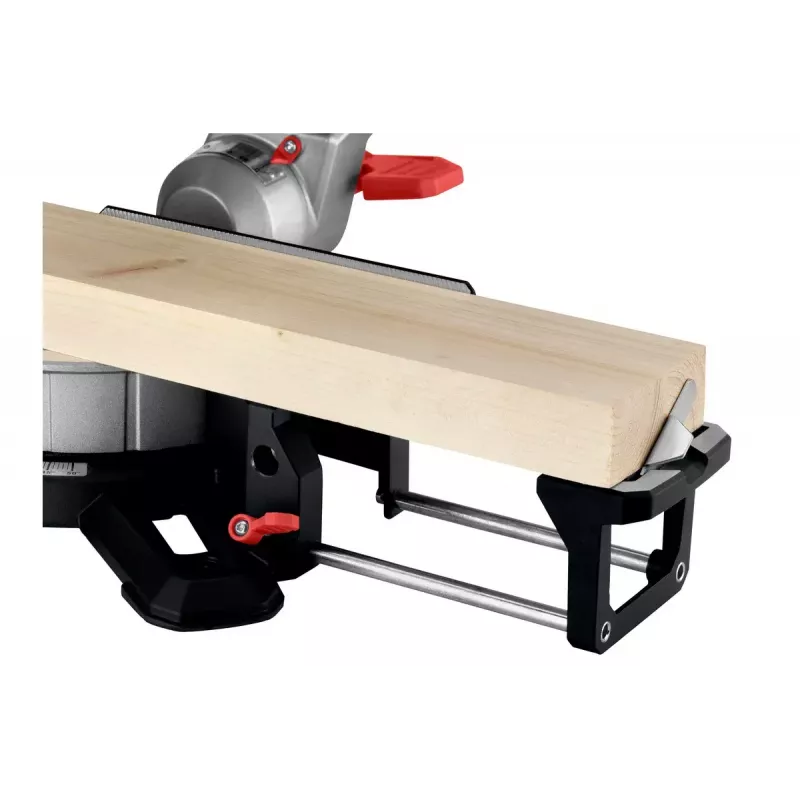

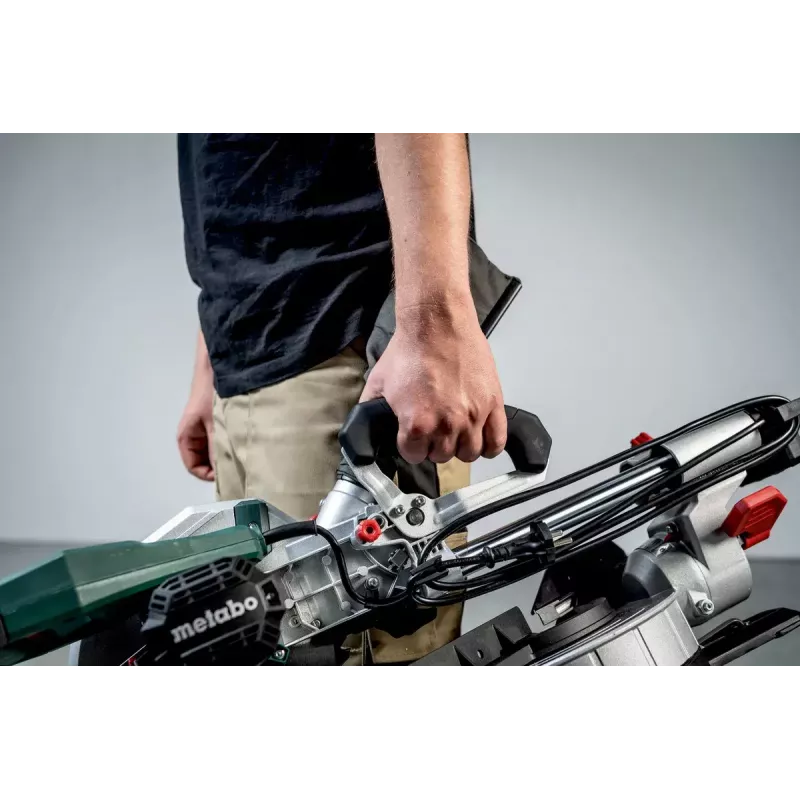

The KGS 254 M offers accurate cutting thanks to the Precision Cut Line LED and clearly visible scales and controls accessible from the working position. The sliding function increases cutting capacity for wide work pieces, while the robust die-cast aluminium design and soft-start motor extend tool longevity. Additional practical features such as depth guide for grooves, removable table extensions for very long work pieces and ergonomic carrying handles support versatile, user-friendly operation.

Suitable for

• Crosscutting and mitre cutting of timber and panel materials
• Bevel cuts and undercuts for trim and frame work

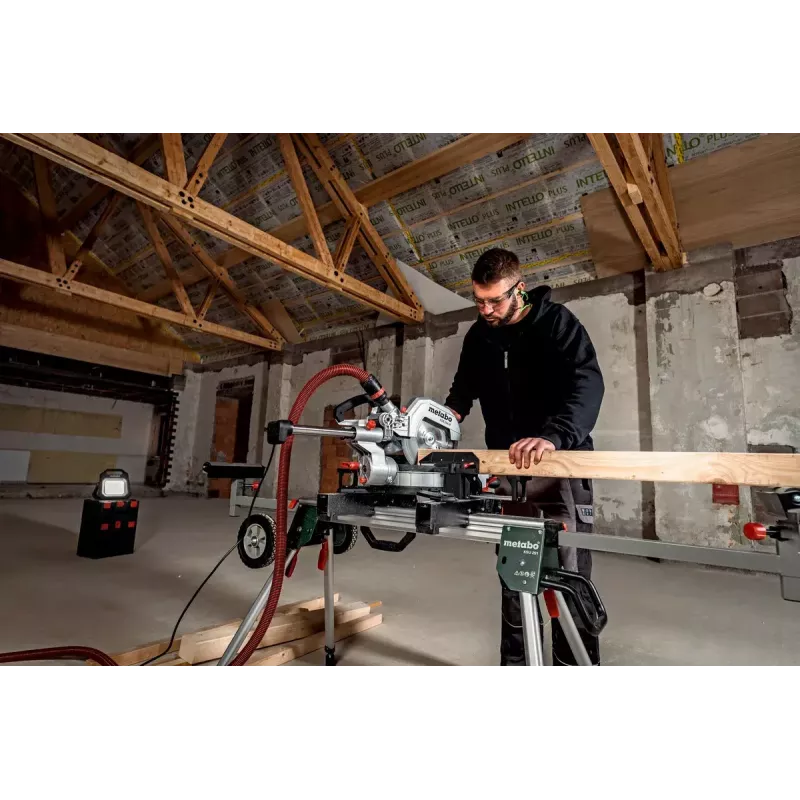

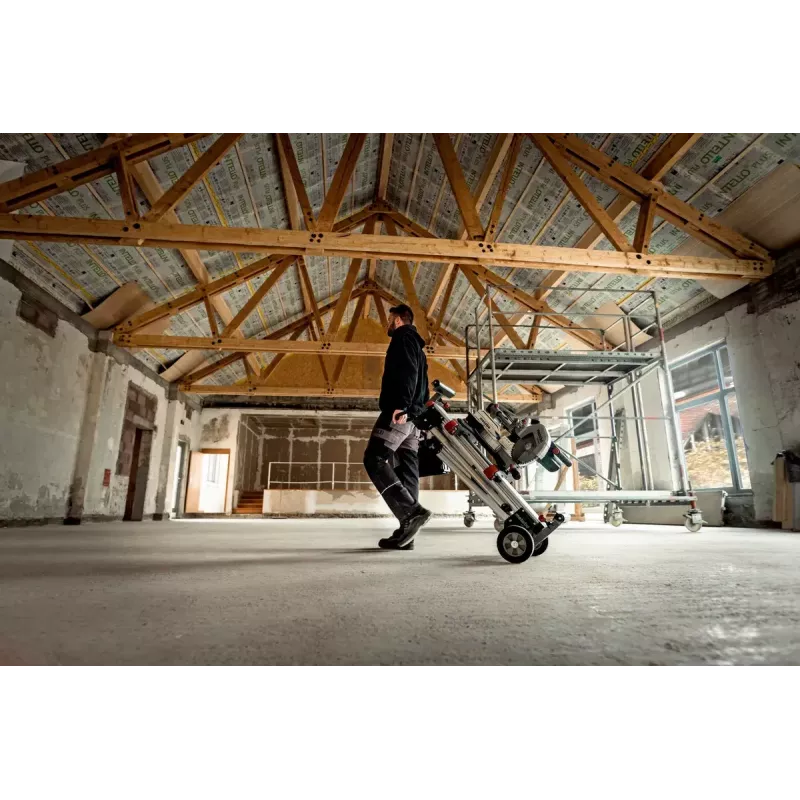

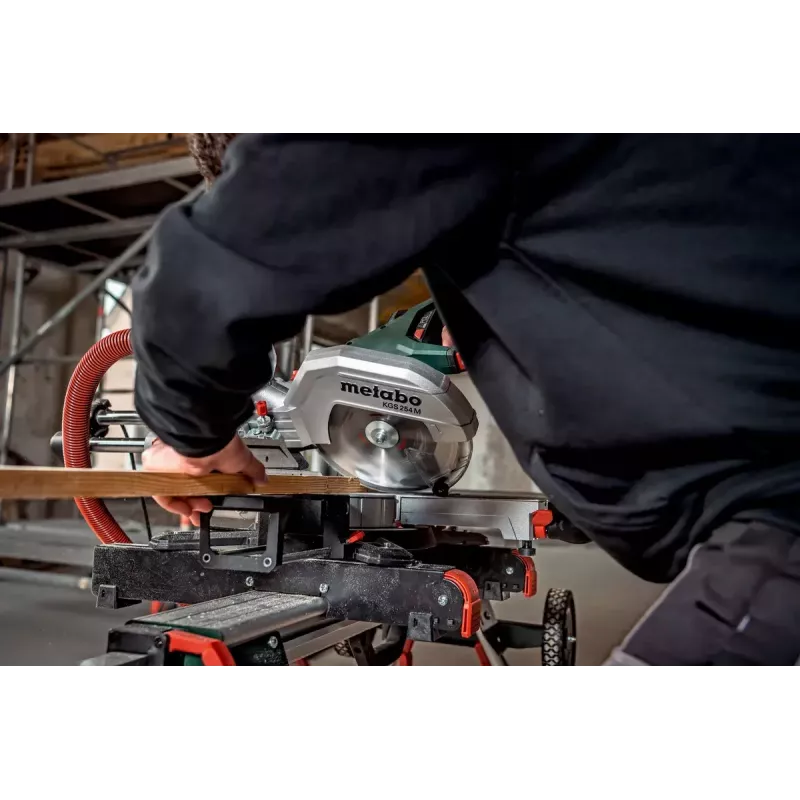

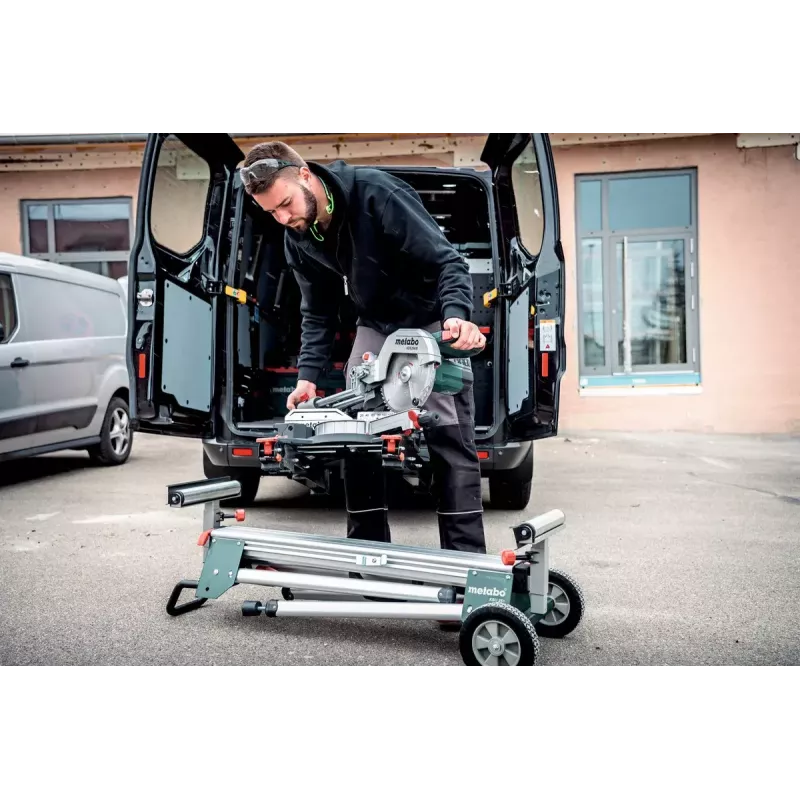

• Workshop and mobile jobsite applications requiring accurate repeatable cuts

Key specifications

• Brand: Metabo
• Model: KGS 254 M (MPN 613254000)
• Power input: 1450 W
• No-load speed: up to 4500 RPM
• Blade diameter: 254 mm
• Blade thickness: 3 mm
• Mitre setting: up to 50° to the left
• Bevel range: -2° to 47°
• Power supply: AC 220–240 V
• Dimensions (W×D×H): 726 × 485 × 543 mm
• EAN: 4061792218192

How to use

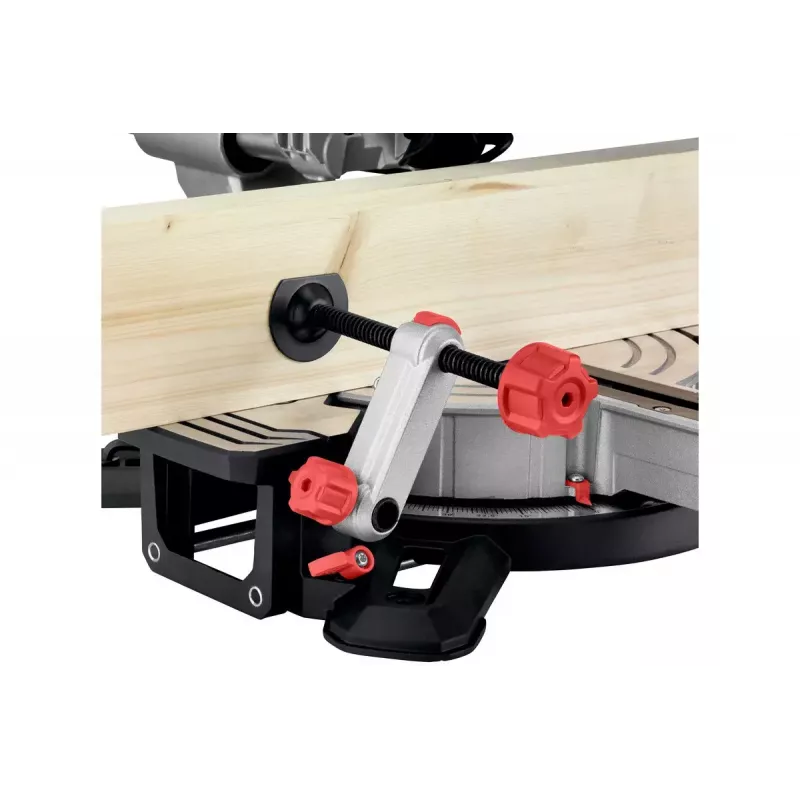

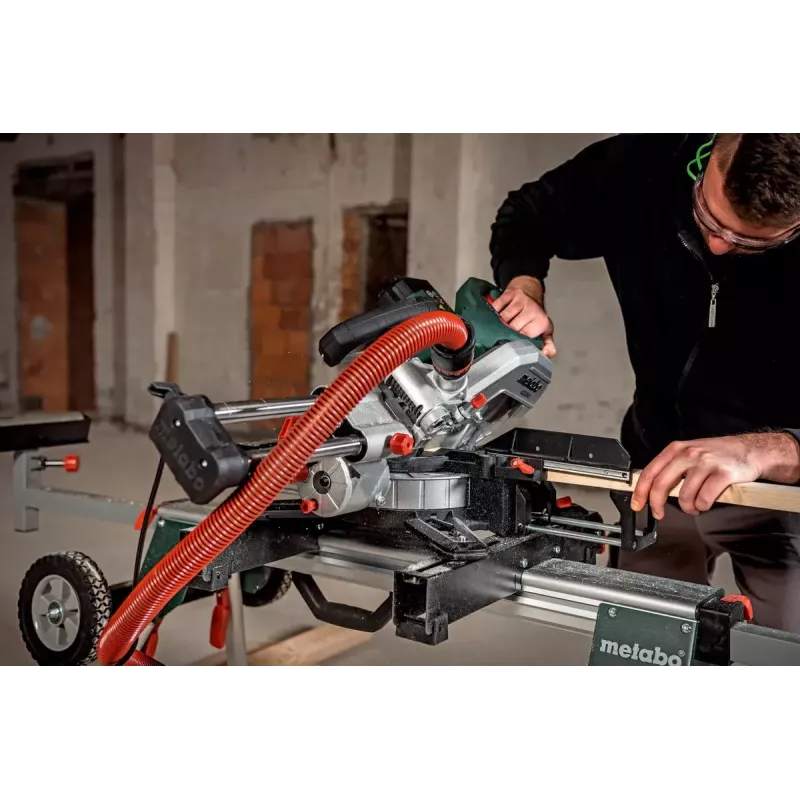

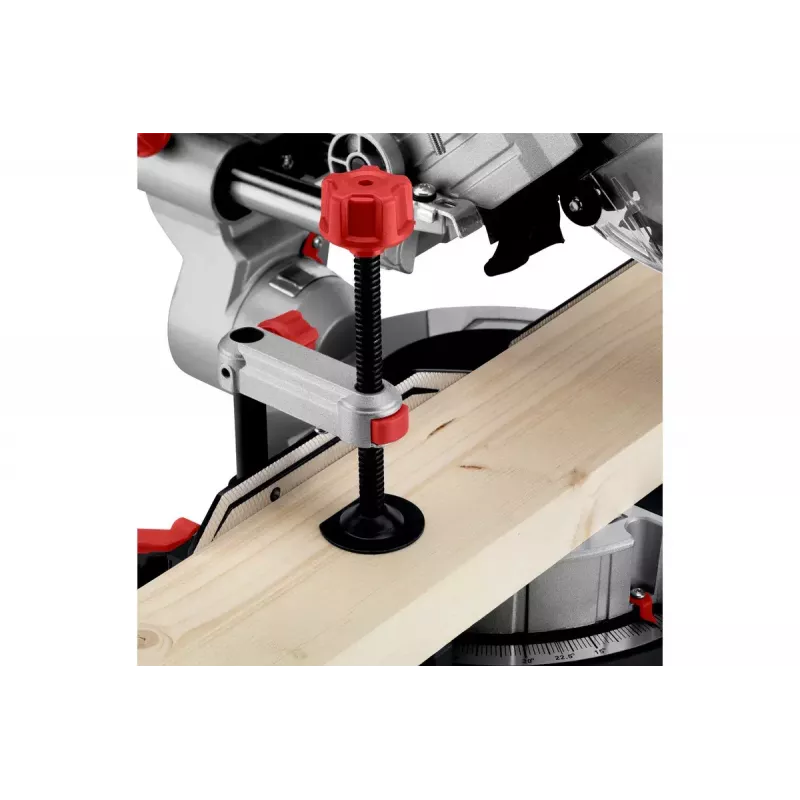

Position the saw on a stable surface and connect to the correct AC supply (220–240 V). Secure the work piece with the quick-action clamp from the top or front. Set the required mitre and bevel angles using the turntable and stop points, verify the cut line with the PCL shadow marker, then start the machine. Use the sliding function for wide pieces and the depth guide when cutting grooves. Keep dust extraction connected to the integrated dust scoop to reduce debris during cutting.

Recommendations

Operate the saw with appropriate personal protective equipment (safety glasses, hearing protection and dust mask). Allow the soft-start to reach full speed before feeding material, and avoid forcing the blade to maintain precision and prolong motor life. Regularly clean the dust scoop and check scales and stops for correct calibration.
