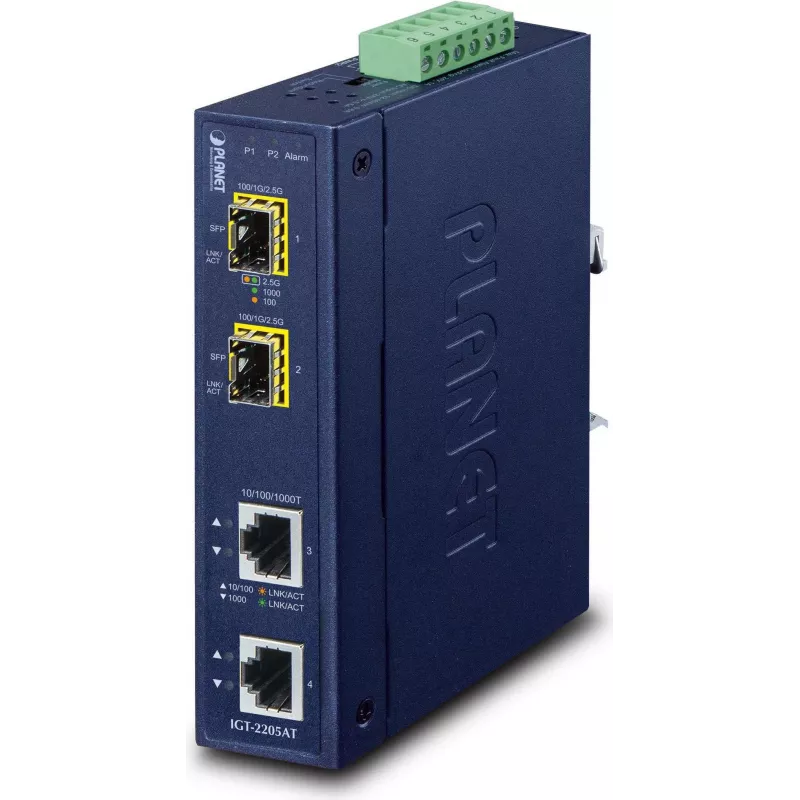

Planet IGT-2205AT priemyselný 2-portový Gigabit Ethernet na SFP media konvertor, IP30, -40°C až 75°C

The Planet IGT-2205AT is a rugged industrial-grade media converter designed to extend Gigabit Ethernet connections over fiber optic cabling. Featuring two 10/100/1000BASE-T RJ45 ports and two 100/1000BASE-X SFP slots, this converter provides reliable and high-speed data transmission in harsh environments. With an IP30-rated metal housing, redundant DC power input, and wide operating temperature range from -40°C to 75°C, the IGT-2205AT is ideal for industrial automation, surveillance, and outdoor applications.

Advantages

Robust industrial design with IP30 protection, redundant power supply (12-48V DC or 24V AC), and advanced features like LFP (Link Fault Pass-through) and jumbo frame support up to 10K bytes ensure maximum network uptime and performance. The converter supports both 100Mbps and 1Gbps fiber speeds via SFP modules, offering flexibility for various network distances.

Suitable for

• Industrial Ethernet networks in factories, warehouses, and process control
• IP surveillance systems requiring long-distance fiber connections
• Outdoor and extreme temperature environments (-40°C to 75°C)
• Transportation and utility infrastructure

Key specifications

• 2 x 10/100/1000BASE-T RJ45 ports with auto-negotiation and auto MDI/MDI-X
• 2 x 100/1000BASE-X SFP slots for fiber connectivity
• Data rates: 10/100/1000 Mbps (copper), 100/1000 Mbps (fiber)
• Jumbo frame support: 10K bytes
• Power input: Redundant 12-48V DC (terminal block) or 24V AC
• Power consumption: Max. 5.76 Watts
• Operating temperature: -40°C to 75°C
• IP30 rated metal case
• Mounting: DIN-rail and wall-mount
• DIP switch for LFP and SFP speed selection
• ESD and surge protection: 6KV DC
• LED indicators: Power 1, Power 2, Fault, LFP, Link/Act per port

Recommendations

For optimal performance, use Planet SFP modules (sold separately) compatible with 100BASE-FX or 1000BASE-SX/LX standards. Ensure proper grounding and power supply redundancy for mission-critical applications.
