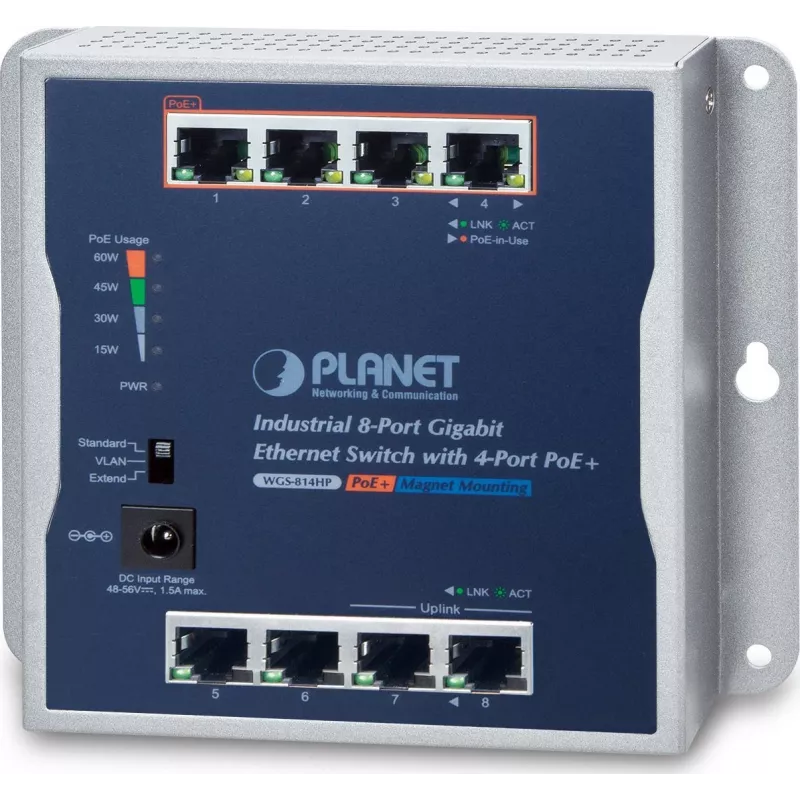

Planet WGS814HP priemyselný Gigabit PoE+ switch, 8 portov (4 PoE+), nástenná montáž, IP30, 60 W budget

In industrial environments, temperature extremes, vibration, and power fluctuations can disrupt standard networking gear. The Planet WGS814HP is built to keep your Gigabit network running reliably in harsh conditions, while also delivering Power over Ethernet to devices like IP cameras and wireless access points.

Who is it for

Designed for system integrators, plant engineers, and network administrators, the WGS814HP suits factory floors, outdoor cabinets, transport systems, and security installations. It provides a rugged, plug-and-play solution for connecting and powering PoE devices such as surveillance cameras, Wi-Fi access points, and remote sensors.

Main features

• 8 x 10/100/1000BASE-T RJ45 ports, 4 of which (ports 1-4) support IEEE 802.3af/at Power over Ethernet Plus
• 60W PoE power budget when powered with 24V DC input
• Redundant 12~48V DC terminal block power input for reliable operation
• IP30-rated metal case protects against dust and debris
• Operating temperature range from -40 to 75°C for extreme environments
• 6kV DC Ethernet ESD protection and 6kV DC surge protection per port
• 16 Gbps switching capacity and 11.9 Mpps forwarding rate
• Supports 9K jumbo frames for improved throughput
• Unmanaged design, ideal for simple, maintenance-free deployments

Specifications

• Ports: 8 x 10/100/1000BASE-T, Ports 1-4 PoE+ compatible
• PoE Standard: IEEE 802.3af/at
• PoE Power Budget: 60W (with 24V DC input)
• Switching Capacity: 16 Gbps
• Forwarding Rate: 11.9 Mpps
• MAC Address Table: 8K entries
• Jumbo Frame: 9K bytes
• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Power Input: Redundant 12~48V DC terminal block
• Enclosure: IP30 metal case, wall-mount and DIN-rail mountable
• Power Consumption: Max 6.5W (system only, without PoE)
• LED Indicators: Power, PoE Usage, Link/Act per port

Tips

To leverage the full 60W PoE budget, use a 24V DC power source with adequate current. For installations with higher power requirements, consider the total power draw of connected PoE devices and select an appropriate power supply. Always connect PoE devices to ports 1-4.
