Počítačová skriňa Supermicro SuperChassis GS5A-754K Midi Tower čierna, sivá

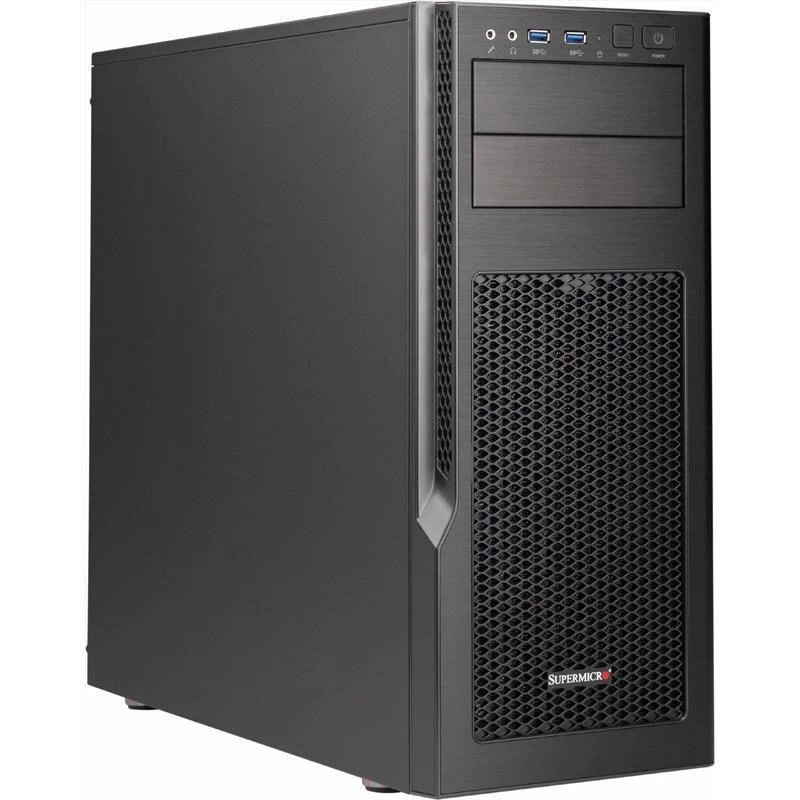

The Supermicro SuperChassis GS5A-754K Midi Tower is a server-grade computer case in a two-tone black and grey finish. Designed for compact server builds, it integrates a bottom-mounted 750 W power supply and supports Micro ATX and ATX motherboards. The chassis accepts multiple drive sizes — 2.5", 3.5" and 5.25" — and comes with two 120 mm front fans and one 120 mm rear fan to maintain airflow across storage and expansion components. Its external footprint of 200 mm (W) x 493 mm (D) x 460 mm (H) and a product weight of 9 kg offer a balance between rackable server density and desktop-friendly placement.

Advantages

The case includes an integrated 750 W power supply located at the bottom for stable power delivery and simplified cable routing. Built from aluminium, the chassis provides rigidity while helping to manage overall weight. Cooling is addressed by two front 120 mm fans and a single rear 120 mm fan, promoting front-to-back airflow suitable for server components and multiple storage drives. Front-panel connectivity includes two USB 3.2 Gen 1 Type-A ports for contemporary peripheral access. The design supports a range of drive bay configurations and common motherboard sizes, enabling versatile server or workstation builds.

Suitable for

• Small office or home server installations
• Storage-heavy builds with multiple 3.5" and 2.5" drives
• Compact workstation or lab servers using ATX or Micro ATX motherboards
• Environments requiring a bottom-mounted power supply and front-to-back cooling

Key specifications

• Type: Server midi tower
• Supported motherboard form factors: Micro ATX, ATX
• Power supply: 750 W, included, bottom-mounted
• Drive bays: 6 × 3.5" bays, 4 × 2.5" bays, 2 × 5.25" bays
• Cooling: 2 × 120 mm front fans, 1 × 120 mm rear fan
• Front ports: 2 × USB 3.2 Gen 1 (Type-A)
• Material: Aluminium
• Dimensions (W × D × H): 200 mm × 493 mm × 460 mm
• Weight: 9 kg
• Colour: Grey and Black

How to use

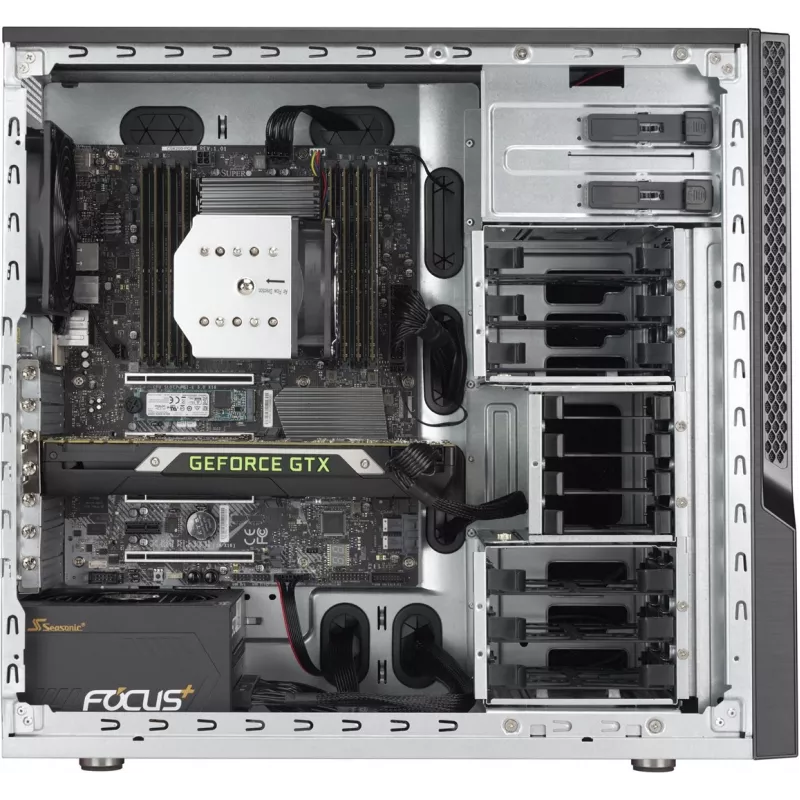

Install a compatible ATX or Micro ATX motherboard and secure it to the standoffs provided inside the chassis. Mount storage drives in the appropriate 2.5", 3.5" or 5.25" bays using standard screws or tool-less trays if available. Position expansion cards and connect them to the motherboard PCIe slots. Connect the included 750 W power supply to the motherboard, drives and any expansion cards, routing cables along the case edges to maintain airflow. Verify that the two front 120 mm fans and the rear 120 mm fan are connected to the motherboard fan headers or fan controller to ensure proper cooling management before powering on the system.

Recommendations

For reliable operation, ensure adequate front-to-back airflow by avoiding obstruction of the intake vents and using cable-routing channels where available. When populating multiple 3.5" drives, monitor internal temperatures and consider configuring fan curves in the system BIOS or using a motherboard-based fan controller. Use appropriate anti-static precautions during component installation and place the case on a stable, flat surface with clearance for the rear exhaust.
