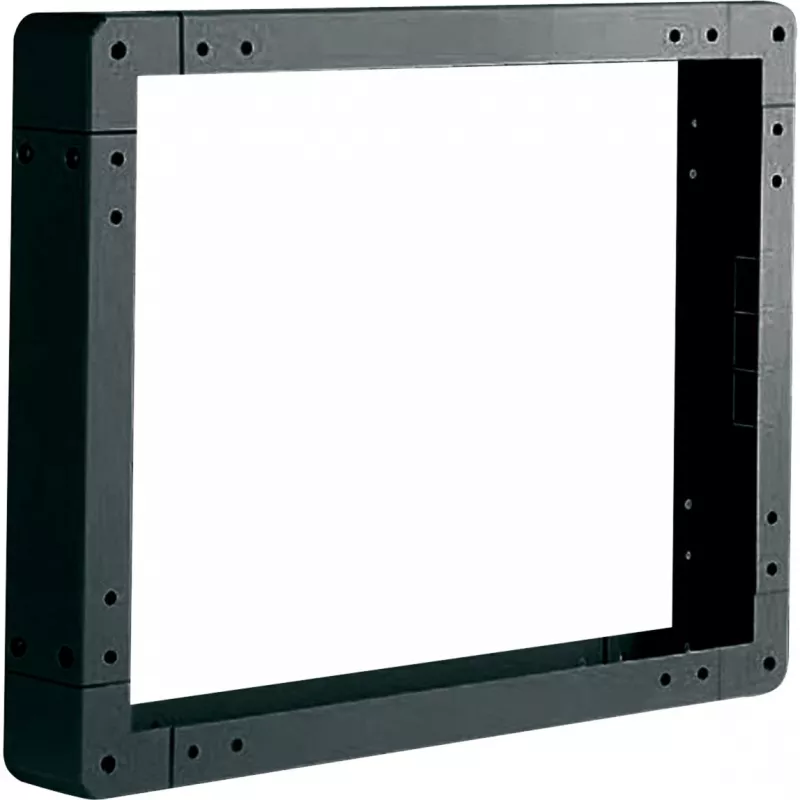

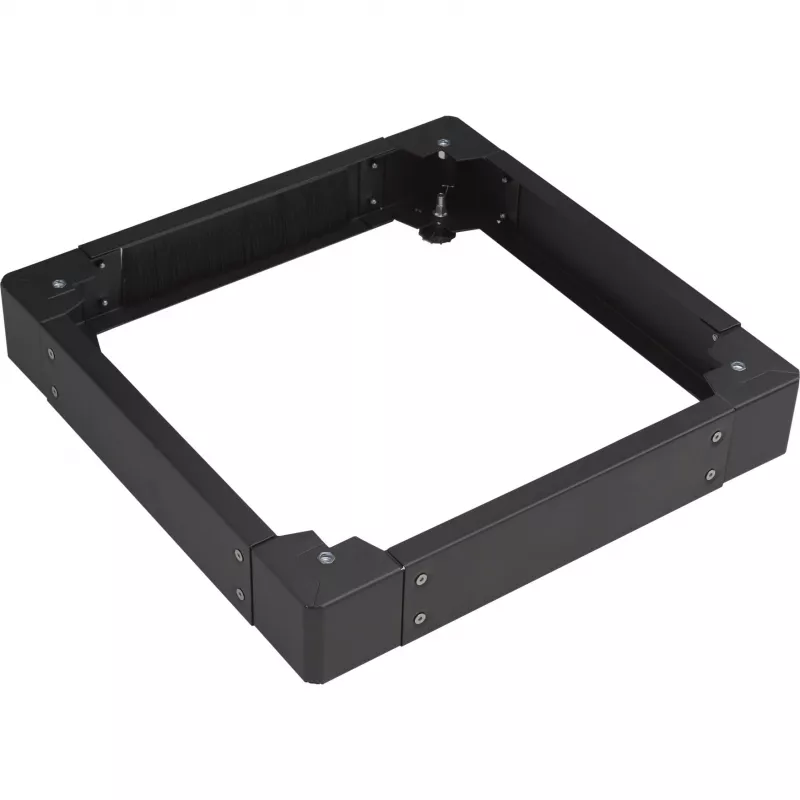

Podstavec sieťovej skrine Digitus DN-19 PLINTH-6/8-B

Network cabinets often sit directly on the floor, leaving little room for cable routing and exposing equipment to dust and moisture. The DIGITUS DN-19 PLINTH-6/8-B solves this by raising the cabinet 100 mm, creating a dedicated space for cable management and improving airflow. Compatible with DIGITUS Unique Series and Dynamic Basic Series 483 mm (19") cabinets, this plinth offers a clean, professional solution for installations that demand better organization and protection.

Who is it for

IT administrators, data center technicians, and network installers who need to elevate DIGITUS 19-inch cabinets for enhanced cable access, floor clearance, and equipment safety. Ideal for server rooms, office networks, and industrial environments where cable routing and dust protection are critical.

Main features

• Extends cabinet height by 100 mm; stack two plinths for up to 200 mm clearance.
• Integrated brush strips on front and rear provide organized cable entry while blocking dust.
• Robust steel construction with powder-coated black finish (RAL 9005) for durability and a professional look.
• Modular design with 4 corner pieces and 4 side panels; ships unassembled for easy transport.
• Direct screw mounting to the cabinet frame ensures a stable, secure connection.

Specifications

• Brand: DIGITUS
• Model: DN-19 PLINTH-6/8-B
• MPN: DN-19 PLINTH-6/8-B
• EAN: 4016032334996
• Type: Network cabinet plinth
• Compatible cabinet width: 600 mm
• Compatible cabinet depth: 600 mm, 800 mm
• Plinth height: 100 mm
• External dimensions (W x D x H): 600 x 800 x 100 mm
• Material: Steel sheet
• Colour: Black (RAL 9005)
• Finish: Powder-coated
• Cable management: Integrated brush strips (front and rear)
• Protection: Guards against dust and water from floor
• Mounting: Screws to cabinet frame
• Included accessories: Mounting hardware
• Weight: 7.5 kg

Tips

For installations requiring extra floor clearance, stack two plinths to achieve 200 mm of elevation. Ensure the cabinet is empty before lifting it onto the plinth, and use the included hardware to secure the plinth to the cabinet frame for maximum stability.
