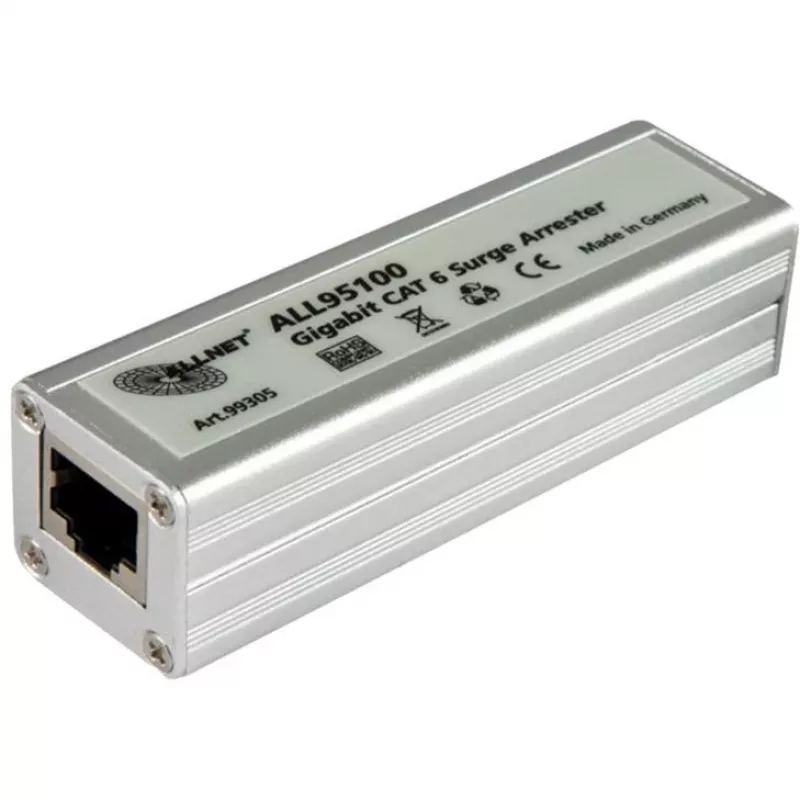

PoE adaptér ALLNET ALL95100

The ALLNET ALL95100 PoE adapter provides compact, plug-and-play surge protection for networked devices. Designed for Fast and Gigabit Ethernet (10/100/1000 Mbit/s) and compatible with CAT5/CAT6 cabling, the adapter is housed in a stainless steel casing and integrates easily between a network cable and the protected device to prevent damage from transient overvoltages such as lightning-induced surges.

Advantages

The ALLNET ALL95100 installs without configuration and offers reliable protection for devices with network ports. Its stainless steel housing and compact size make it suitable for integrated installations, while compliance with IEEE 802.3 standards ensures compatibility with common network equipment. When used together with a mains surge protector and equipotential bonding, it helps protect infrastructure in security-sensitive areas.

Suitable for

• Switches
• Routers and firewalls
• Notebooks and PCs/servers
• Televisions and multimedia devices

Key specifications

• Model: ALLNET ALL95100
• Data rates: 10/100/1000 Mbit/s (Fast and Gigabit Ethernet)
• Standards: IEEE 802.3
• Cable compatibility: CAT5, CAT6
• Power output: 90 W
• Material / colour: Stainless steel
• Dimensions: 82 x 25 x 25 mm
• Weight: 0.2 kg
• Certifications: CE, RoHS

How to use

Insert the ALL95100 inline between the network cable and the device to be protected. No configuration is required: the adapter begins providing surge protection as soon as it is connected. Ensure correct cable termination and a secure physical connection to maintain network performance at 10/100/1000 Mbit/s.

Recommendations

For effective protection against lightning-induced surges, use the ALL95100 together with a mains surge protector and proper equipotential bonding. Place the adapter as close as possible to the protected device and verify compatibility with your PoE setup and power budget when powering devices via PoE.
