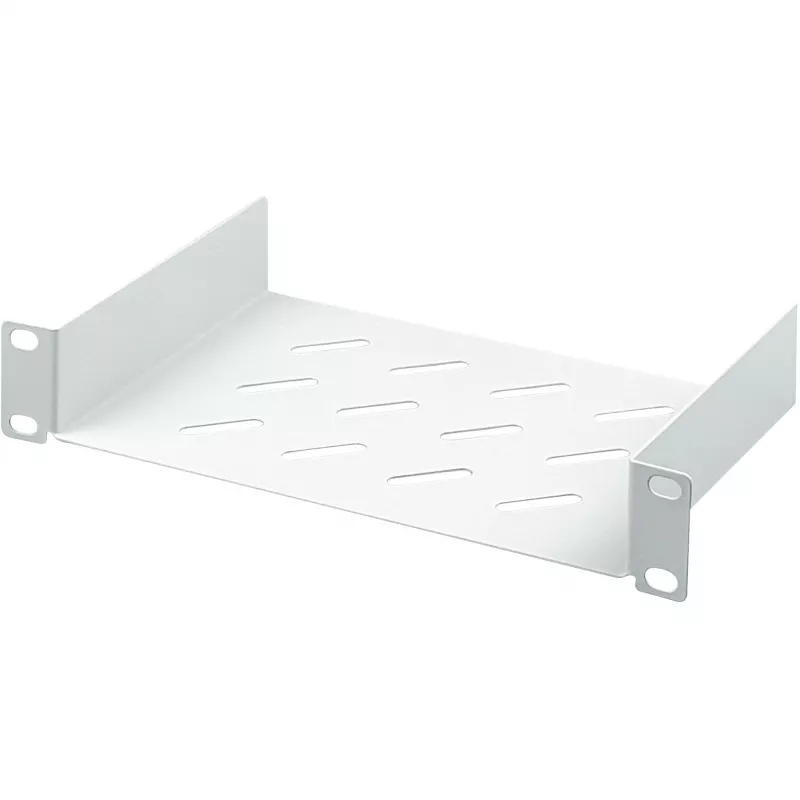

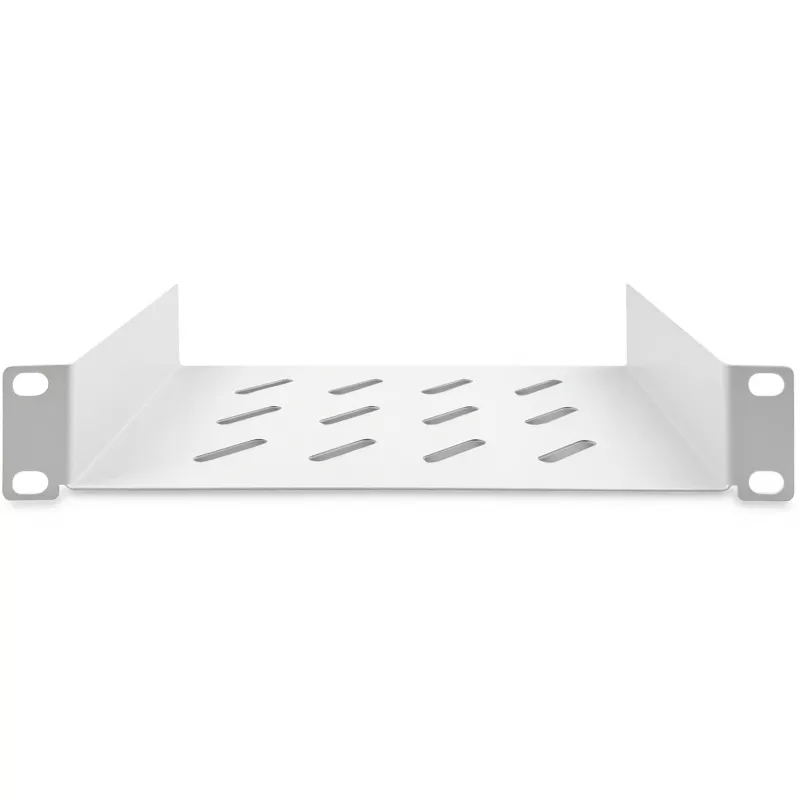

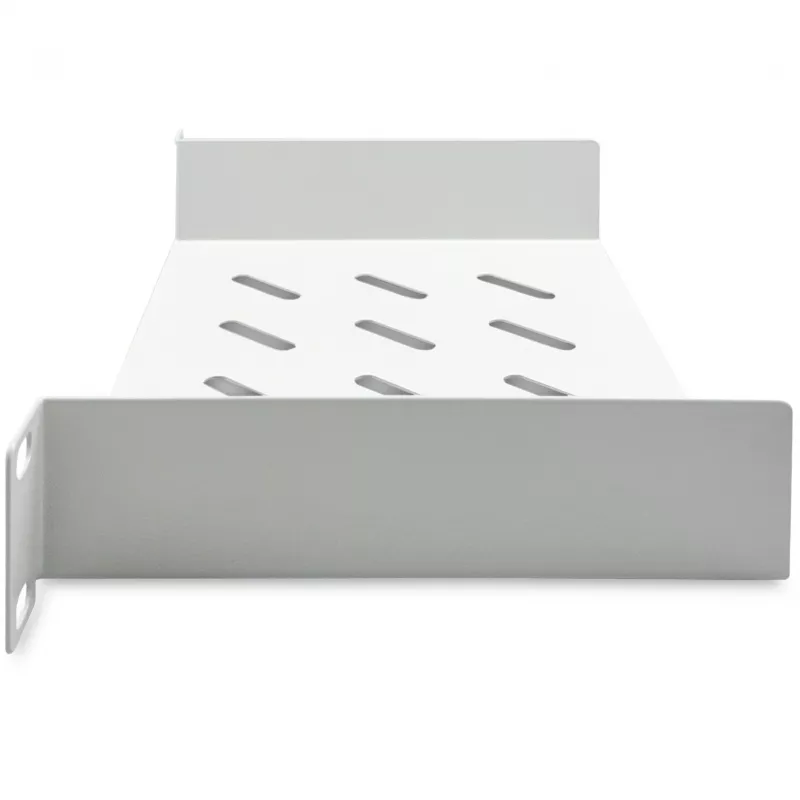

Polica Digitus 254 mm (10 inch) 1U

The Digitus 254 mm (10") 1U shelf provides compact storage for accessories and components in 254 mm (10") cabinets. It occupies a single height unit (1U), is constructed from robust perforated sheet steel to improve airflow inside the cabinet, and is supplied complete with mounting hardware for immediate installation.

Advantages

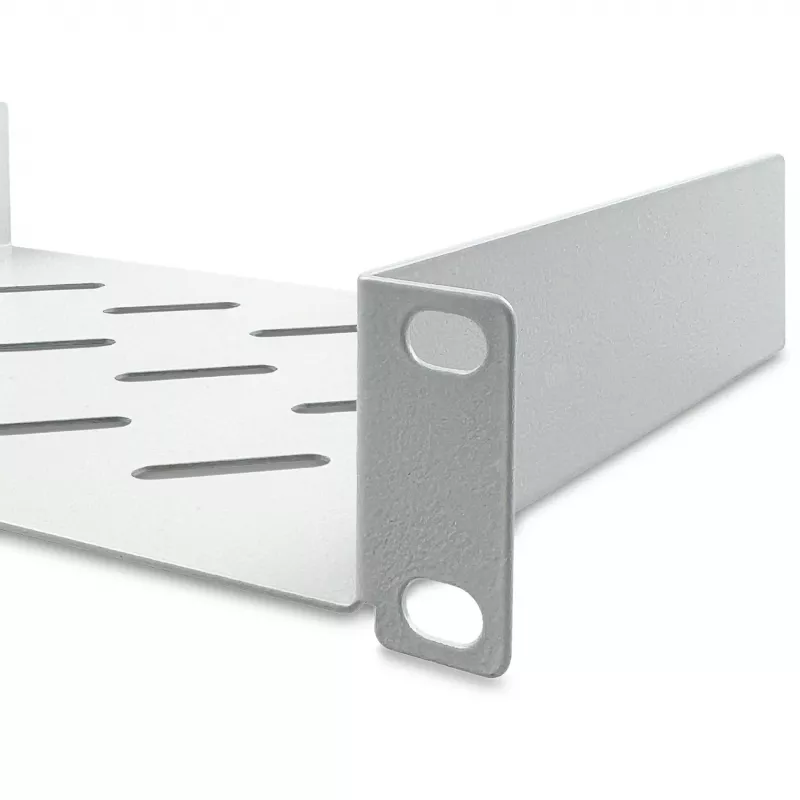

The shelf mounts with a simple two-point attachment to the 254 mm (10") profile rails using integrated mounting brackets with two screw holes each. Its slim 1U design saves rack space while offering an installation depth of 150 mm and a load capacity of up to 25 kg. The perforated metal construction increases ventilation and contributes to a sturdy, durable support surface.

Suitable for

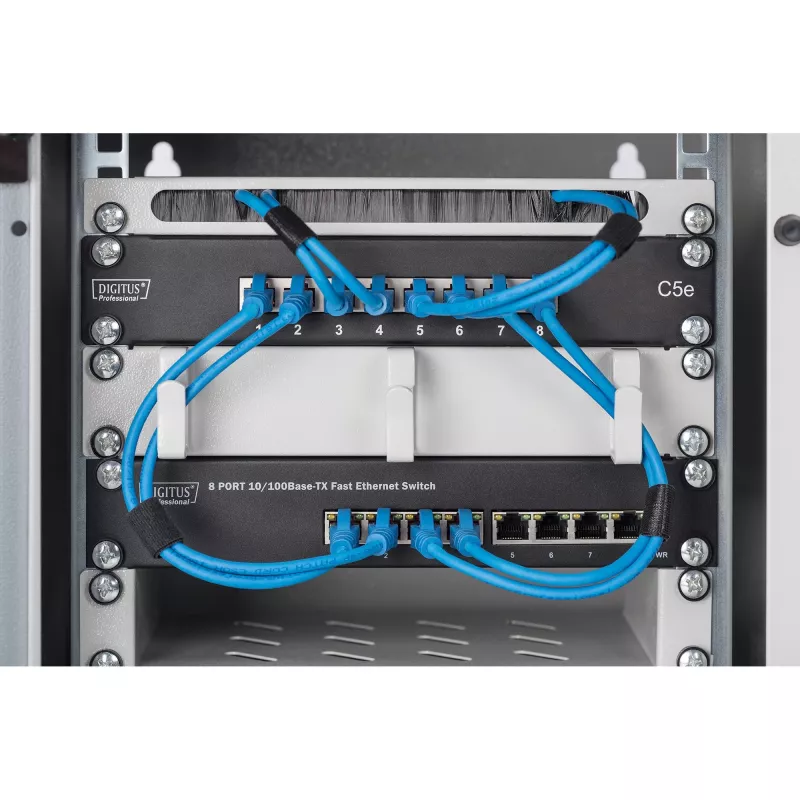

• Storing small network components and accessories in 10" (254 mm) server cabinets
• Holding devices or parts that are not rack-mounted directly
• Use in server rooms, telecommunication cabinets, and network racks

Key specifications

• Width: 254 mm (10")
• Height: 1U
• Installation depth: 150 mm
• Load capacity: up to 25 kg
• Material: perforated sheet steel
• Colour: Grey

How to use

Position the shelf on the front 254 mm (10") profile rails and align the integrated mounting brackets with the rail holes. Secure the shelf using the supplied screws through the two screw holes in each bracket. Ensure the shelf is level and tightened evenly on both sides before placing equipment on it.

Recommendations

Distribute loads evenly and avoid exceeding the 25 kg maximum. Maintain clear airflow around perforations and avoid placing heat-sensitive equipment directly on the shelf without additional insulation or support.
