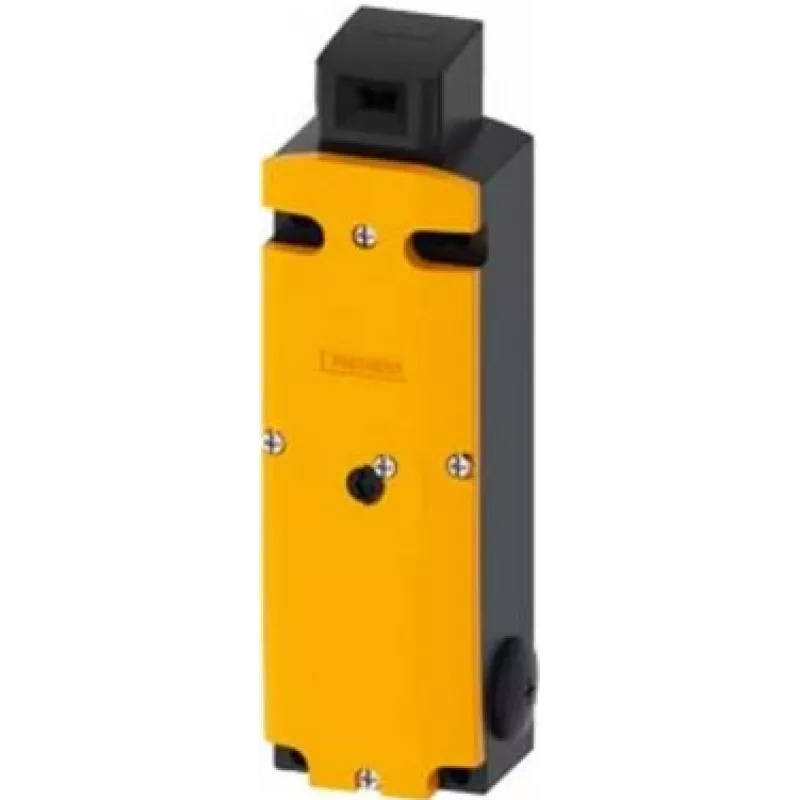

Polohový spínač Siemens 3SE53120SD11 — mechanický koncový spínač, jednoduchý ovládač

Siemens Position switch 3SE53120SD11 is a mechanical limit switch with a single actuator designed to detect and transmit the position of moving machine elements. The device provides a defined electrical contact change when an actuator is operated, enabling reliable feedback for control circuits in industrial automation. Its compact construction allows integration into switchgear, conveyor systems, valves and various types of machinery where simple mechanical position sensing is required.

Advantages

The switch offers precise actuation feedback from a single actuator mechanism, a robust mechanical design for repeated operations, and compatibility with standard control wiring practices. It supplies clear NO/NC contact transitions for PLCs and relay logic, and its form factor supports mounting in control panels or on machinery housings. The mechanical construction minimizes electronics dependence, providing a straightforward solution for position detection in industrial environments.

Suitable for

Key specifications

How to use

Install the mechanical limit switch at the location where a moving part will reliably engage the actuator. Secure the unit using the recommended mounting points and ensure the actuator travel corresponds to the required switch activation point. Wire the switch contacts to the control circuit following the system documentation and observe correct polarity and protective measures for the connected control devices. After installation, verify proper operation by manually actuating the mechanism and confirming the expected contact status at the control input.

Recommendations

Position the actuator so that engagement is positive and avoids partial or glancing contact; perform periodic visual inspections and functional checks, and ensure wiring and protective devices match the application's voltage and current requirements.
