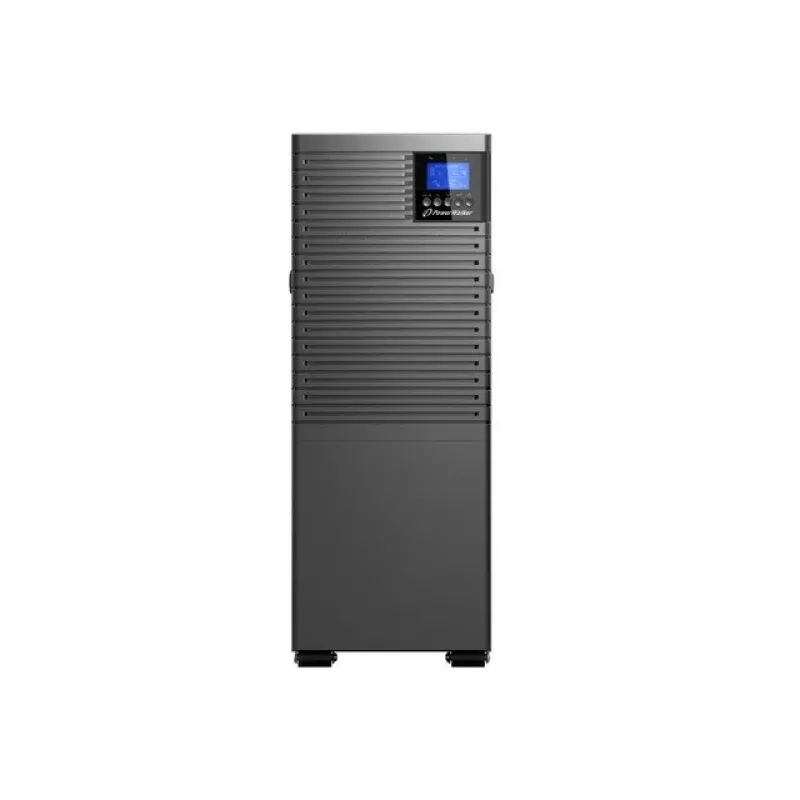

PowerWalker VFI 10000 ICT IoT 3/1 BI PF1 10KVA online UPS

The PowerWalker VFI 10000 ICT IoT 3/1 BI PF1 is a high-performance online double-conversion uninterruptible power supply (UPS) designed for critical IT infrastructure, industrial applications, and data centers. With 10 kVA / 10 kW capacity and a unity power factor of 1.0, it delivers maximum efficiency and reliable power protection. The UPS features three-phase input and single-phase output, making it ideal for environments requiring balanced load distribution. Its IoT connectivity via an RJ45 port enables remote monitoring and management, while the Smart Slot allows for optional network management cards.

Advantages

This UPS ensures zero transfer time, pure sine wave output, and tight voltage regulation (±1%), safeguarding sensitive equipment from power disturbances. The ECO mode achieves up to 98% efficiency, reducing energy costs. The tower form factor and terminal block connections simplify installation in server rooms or industrial settings. The internal VRLA battery pack (20 x 12V/9Ah) provides reliable backup power with a recharge time of 9 hours to 90%.

Suitable for

• Data centers and server rooms
• Industrial automation and control systems
• Telecommunications equipment
• Medical devices and laboratory instruments
• Network and security systems

Key specifications

• UPS Topology: Online Double-Conversion
• Capacity: 10 kVA / 10 kW (PF=1.0)
• Input: 3-phase (380/400/415 VAC), Range: 190-520 VAC
• Output: 1-phase (208/220/230/240 VAC), Regulation ±1%
• Waveform: Pure Sine Wave, Transfer Time: 0 ms
• Battery: VRLA, 20 x 12V/9Ah internal
• Recharge Time: 9 hours to 90%
• Communication: USB, RS-232, EPO, Smart Slot, IoT Port (RJ45)
• Efficiency: Up to 95% (AC-AC), Up to 98% (ECO mode)
• Noise Level: <58 dB
• Form Factor: Tower
• Input/Output Connection: Terminal Block

Recommendations

For optimal performance, install the UPS in a well-ventilated area with ambient temperature between 0-40°C. Use the IoT port for remote monitoring via PowerWalker's management software. Regular battery maintenance is recommended to ensure long service life.
