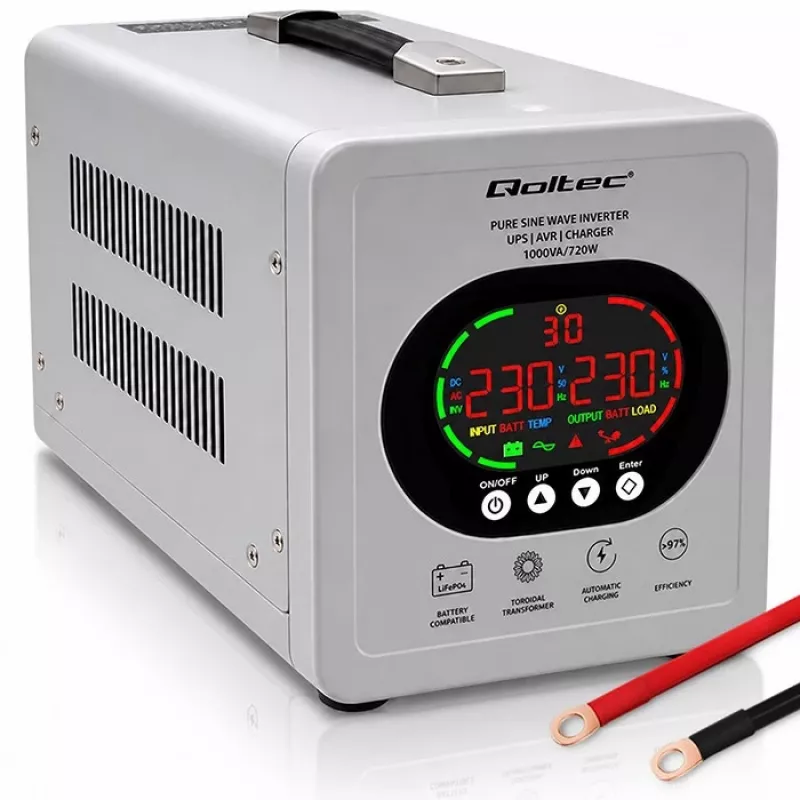

Qoltec Pure Sine Wave USV 1000VA/720W Line-Interactive AVR LCD LiFePO4 AGM GEL

The Qoltec Pure Sine Wave UPS 1000VA/720W is a line-interactive uninterruptible power supply designed to protect sensitive electronic equipment from power disturbances. Featuring automatic voltage regulation (AVR) and a pure sine wave output, it ensures stable and clean power for devices such as computers, servers, networking equipment, and home entertainment systems. With support for multiple battery types including LiFePO4, AGM, GEL, and lead-acid, this UPS offers flexibility and reliability for various applications.

Advantages

This UPS provides reliable backup power and surge protection, ensuring your equipment remains operational during outages. The pure sine wave output is compatible with active PFC power supplies and sensitive electronics. The LCD display offers real-time status information, and the selectable charging current (up to 20A) allows optimization for different battery types. The compact tower design saves space while delivering robust performance.

Suitable for

• Home offices and small businesses
• Computer workstations and servers
• Networking and telecommunications equipment
• Audio/video systems and gaming consoles
• Medical devices and laboratory instruments

Key specifications

• UPS Topology: Line-Interactive
• Apparent Power: 1000 VA
• Real Power: 720 W
• Output Waveform: Pure Sine Wave
• Input Voltage Range: 140V - 275V AC
• Output Voltage (AC Mode): 230V AC ±10%
• Output Voltage (Battery Mode): 230V AC ±3%
• Input Frequency: 50 Hz / 60 Hz (Auto-sensing)
• Output Frequency: 50 Hz / 60 Hz (Auto-sensing)
• Transfer Time: 4-6 ms (Typical)
• External Battery Voltage: 12V DC
• Battery Type Compatibility: LiFePO4, AGM, GEL, Lead-Acid
• Max Charging Current: Up to 20A (Selectable)
• Automatic Voltage Regulation (AVR): Yes
• Display Type: LCD
• AC Output Sockets: 2x Schuko (Type F)
• Communication Ports: USB, RS232
• Protection Features: Overload, Short Circuit, Overcharge, Over-discharge, Over-temperature

Recommendations

For optimal performance, use with compatible batteries (LiFePO4, AGM, GEL, or lead-acid) and ensure proper ventilation. The selectable charging current should be set according to the battery manufacturer's specifications. This UPS is ideal for protecting critical loads where clean sine wave power is required.
