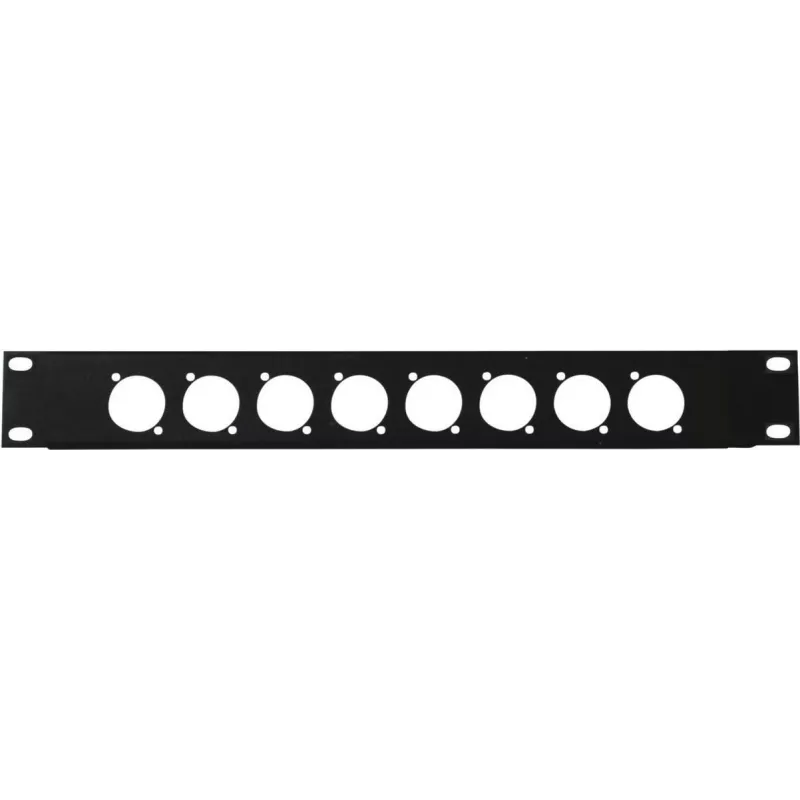

Predný panel Omnitronic Z-19 8x XLR D-Type 1U – rackový adaptér s ôsmimi XLR konektormi

The Omnitronic Z-19 front panel is a 1U rack adapter fitted with eight XLR connectors in a D‑Type arrangement, providing a compact solution for routing balanced analog audio in standard 19" racks. The product places all XLR connections at the front of the rack for quick access, simplified cable routing and convenient signal patching in live sound, broadcast and studio setups.

Advantages

The front-facing XLR D‑Type layout reduces time spent reaching into the rack and keeps cables organized. Its 1U form factor conserves rack space while delivering eight standard XLR jacks for balanced microphone- and line-level connections. The solid metal housing and panel mounting ensure stable mechanical support when multiple cables are connected, and the standard rack dimensions allow seamless integration with other equipment.

Suitable for

Key specifications

How to use

Mount the panel in a vacant 1U space of a 19" rack and secure it using standard rack screws. Connect internal cable assemblies or D‑Type breakout cables to the rear of the unit according to your system’s wiring scheme, then plug microphones, DI boxes or line-level sources into the front XLR connectors. Verify pin wiring and signal polarity before applying signal to avoid phase issues. Label front connectors if required for quick identification during operation.

Recommendations

For reliable performance, use balanced XLR cables of appropriate quality and keep cable runs clear of high-power mains or noisy electronics. Ensure rack mounting is secure and avoid excessive mechanical strain on front connectors by supporting heavy cable bundles. Periodically check connector seating and wiring continuity as part of routine system maintenance.
