Prenosná čítačka čiarových kódov Newland WD2 1D/2D CMOS čierna káblová bezdrôtová

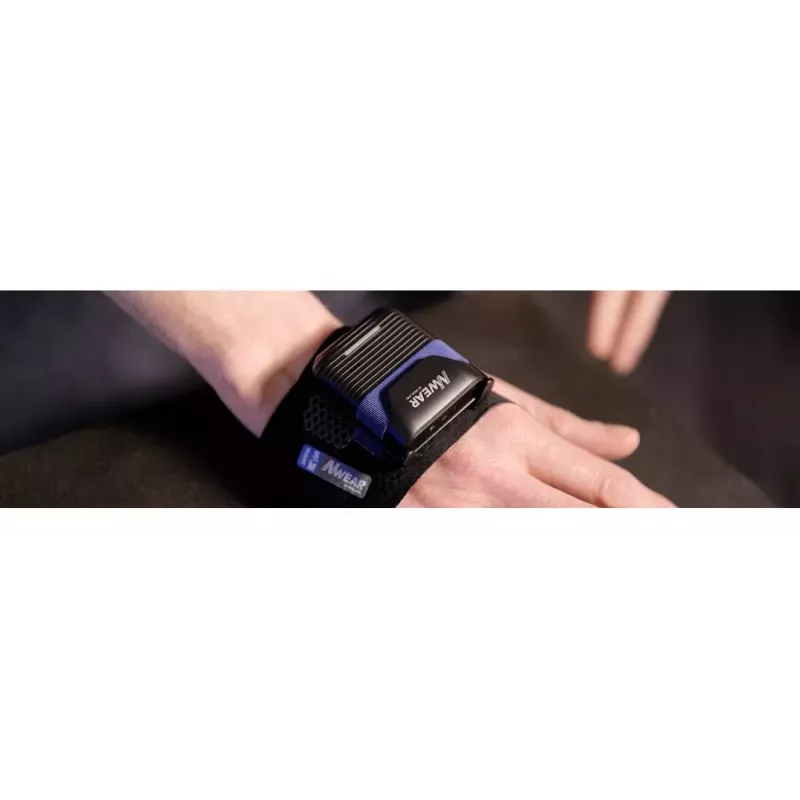

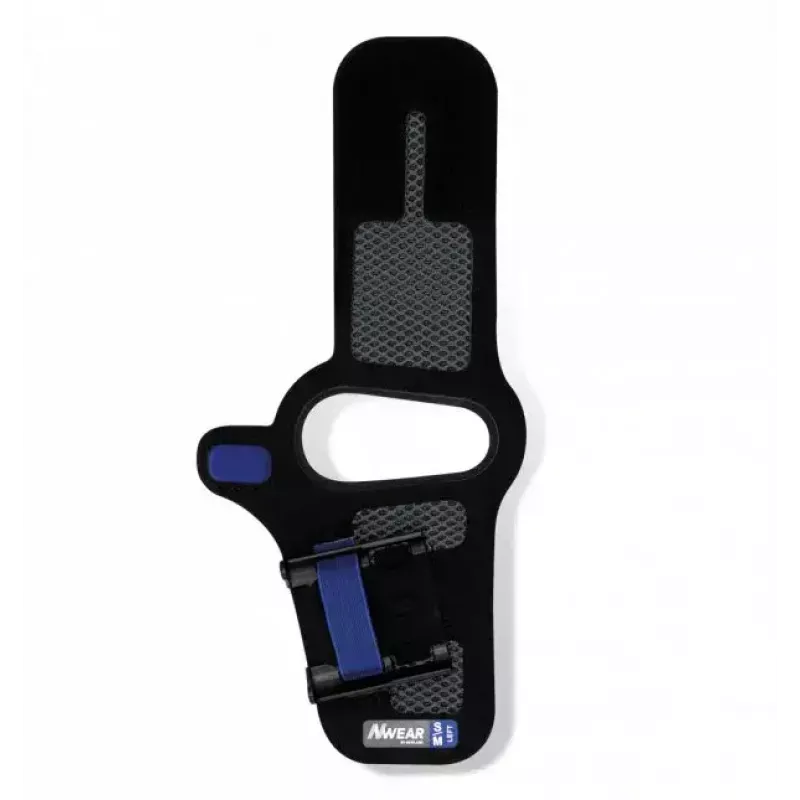

The Newland WD2 is a lightweight wearable bar code reader designed for hands-free scanning of 1D and 2D barcodes in retail, warehousing and logistics environments. It can be used wired or wirelessly, features a CMOS sensor and supports a broad range of linear and matrix barcodes. The device includes a comfortable adjustable hand strap available in two sizes for left- or right-hand use, a responsive thumb trigger and a compact 2-bay charging cradle that can be linked into a multi-dock system.

Advantages

The WD2 combines Acuscan image processing and Newland 2D megapixel scanning technology to read high-density, distorted or closely placed barcodes with fewer errors. Its compact, lightweight design reduces user fatigue during long scanning sessions. The strap fits over gloves for cold or heavy-duty use and the optional daisy-chain charging cradle allows multiple units to be charged efficiently from a single PSU. Bluetooth 5.0 provides stable wireless communication and the device can pair directly with compatible wrist-mounted hosts.

Suitable for

• Wearable, hands-free picking and packing in warehouses
• Retail inventory and replenishment tasks
• High-volume scanning workflows where sustained use and reduced fatigue are needed
• Cold or heavy-duty environments requiring glove-compatible straps

Key specifications

• Scanner type: 1D/2D
• Sensor type: CMOS
• Connectivity: Wired & Wireless (Bluetooth 5.0)
• Weight: 0.043 kg
• Supported 1D codes: EAN-13, Code 93, EAN-8, GS1 DataBar, GS1-128, ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, MSI, Matrix 2 of 5, Plessey, UPC-A, UPC-E, Code 39, Code 32, Code 128, Code 11, Codabar, China Post
• Supported 2D codes: Data Matrix, Code 1, Aztec Code, QR Code, PDF417, MicroPDF417, Micro QR Code, MaxiCode, Grid Matrix Code
• Colour: Black
• MPN: WD2-BS50-SR
• EAN: 5704174859048

How to use

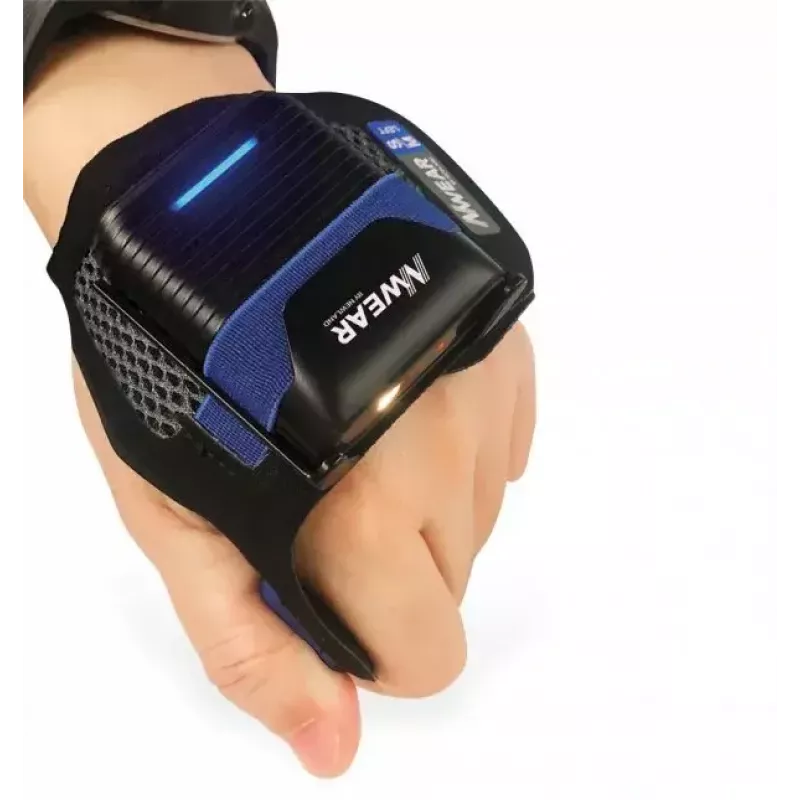

Attach the WD2 to the hand strap appropriate for left or right hand and size, placing the integrated trigger between thumb and forefinger. Power the scanner and pair via Bluetooth 5.0 or connect using the wired interface as required. Aim the scanner at the barcode using the red aiming crosshair (standard range) or red dot (mid range) and press the thumb trigger lightly to capture the code. After use, dock the scanner in the 2-bay charging cradle or link multiple cradles to charge several units from a single PSU.

Recommendations

For reliable scanning of small or closely spaced codes, use the standard range model with the red crosshair and enable Acuscan processing. For longer read distances and larger isolated codes, choose the mid-range model with the red dot aiming point. Ensure the strap size is correct and fits over any required gloves to maintain comfort and secure mounting during sustained operations.
