Priamočiara píla Einhell TC-JS 80/1

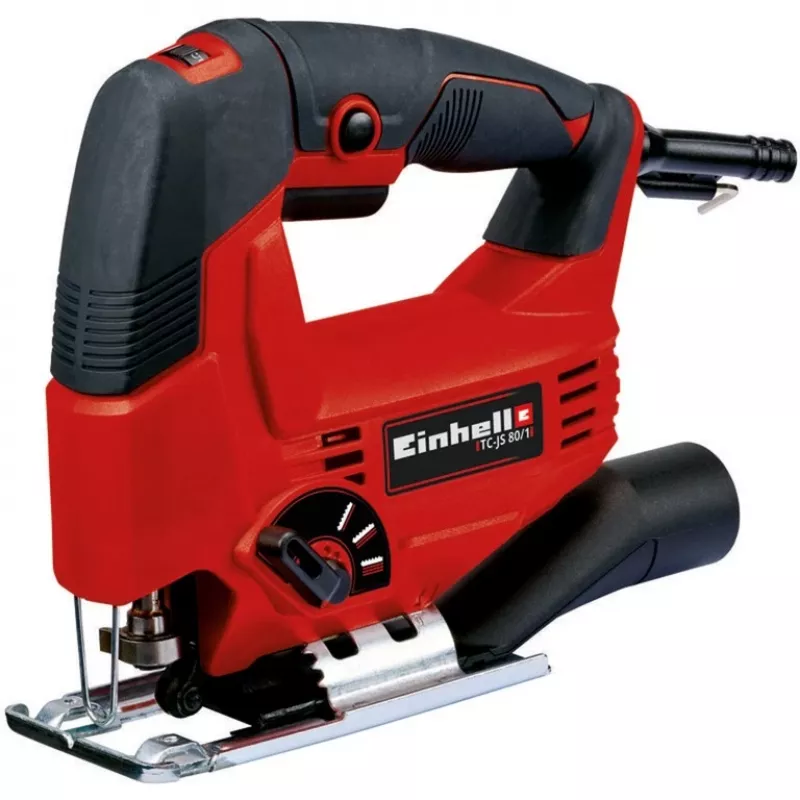

The Einhell TC-JS 80/1 jigsaw is a compact corded power tool with a 550 W motor and a maximum idle stroke rate of 3000 spm. It is designed for cutting wood, plastic and thin steel in workshops, garages and for home DIY tasks. The saw delivers a maximum cutting depth of 80 mm in wood, 20 mm in plastic and 10 mm in steel. The tool is lightweight (approx. 1.86 kg) and features a 20 mm stroke height and a soleplate that can be swiveled for bevel cuts up to 45°.

Advantages

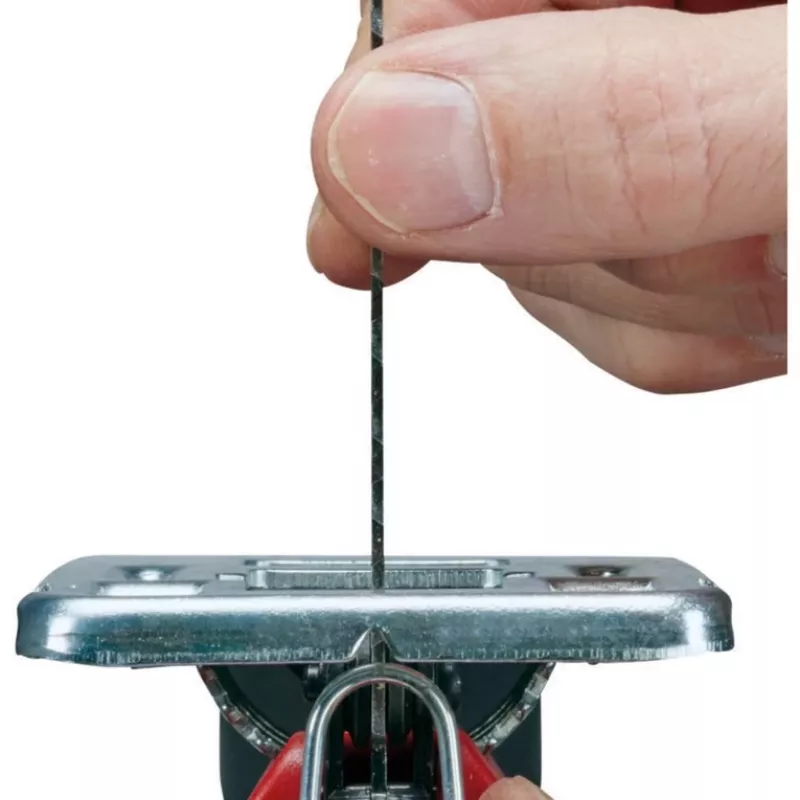

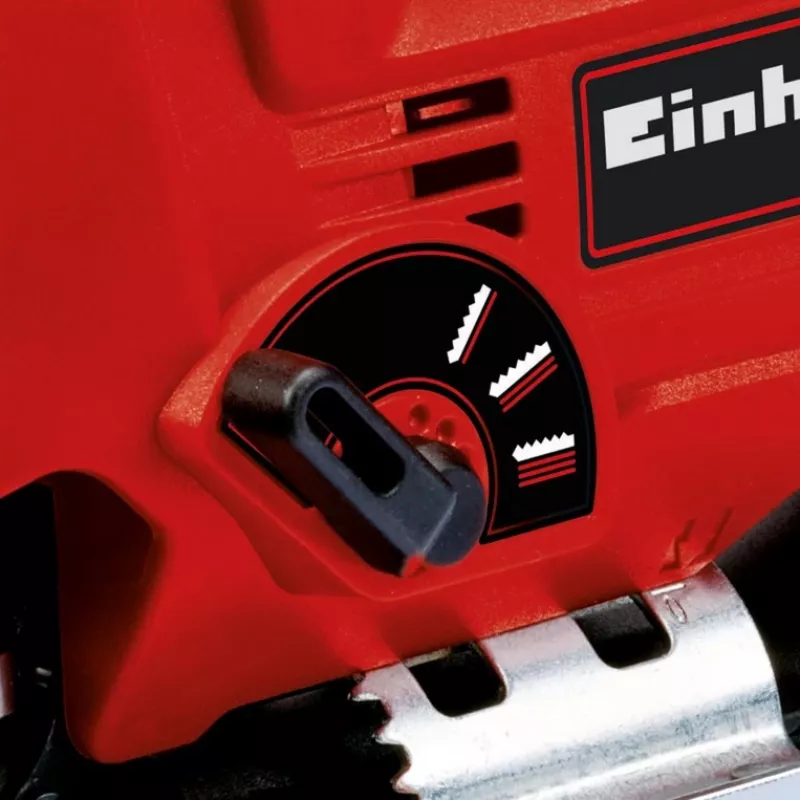

The jigsaw offers a four-setting pendulum action for precise and fast cuts, a tool-free blade change system for quick blade replacement, and softgrip surfaces for comfortable handling. A dust extractor connection helps keep the work area clear, and the robust 550 W motor provides sufficient power for common workshop and DIY cutting tasks.

Suitable for

• Cutting wooden boards and panels up to 80 mm
• Shaping and trimming plastic parts up to 20 mm
• Cutting thin steel sheets up to 10 mm
• Bevel cuts and angled cuts up to 45°
• General workshop and DIY cutting applications

Key specifications

• Brand: EINHELL
• Model: TC-JS 80/1 (MPN 4321145, EAN 4006825619737)
• Power: 550 W
• Voltage: 220–240 V AC
• Maximum stroke rate (idle): 3000 spm
• Stroke height: 20 mm
• Cutting depth (wood): 80 mm
• Cutting depth (plastic): 20 mm
• Cutting depth (steel): 10 mm
• Bevel capacity: up to 45°
• Weight: approx. 1.86 kg

How to use

Secure the workpiece before starting and select the appropriate blade for the material. Set the pendulum-action level according to the required cutting speed and finish. Adjust the soleplate to the desired bevel angle if an angled cut is needed. Switch on the jigsaw and allow it to reach full speed before guiding it steadily along the cutting line. Use moderate feed pressure; let the blade do the cutting. After finishing, switch off power and wait for the blade to stop before setting the tool down or changing the blade.

Recommendations

For best results, use blades matched to the material (fine-tooth blades for steel, coarser blades for wood), wear appropriate eye and hearing protection, and connect a dust extractor or vacuum for cleaner working conditions.
