Príslušenstvo čítačky prístupového systému DAHUA DEE1010B-S2 — čierna, 58,2×20,2×49,2 mm, certifikát CE/FCC

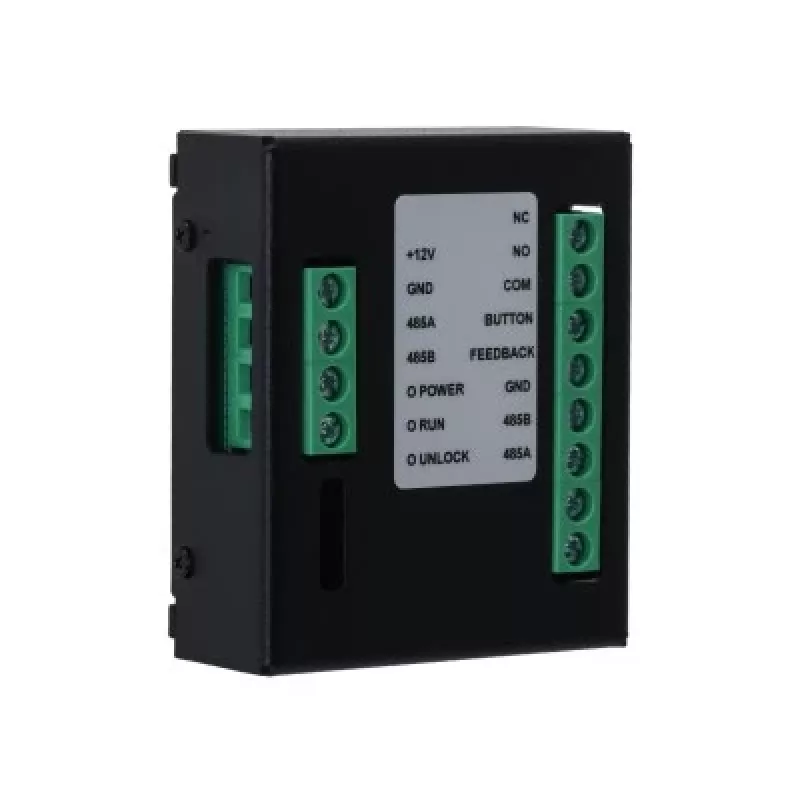

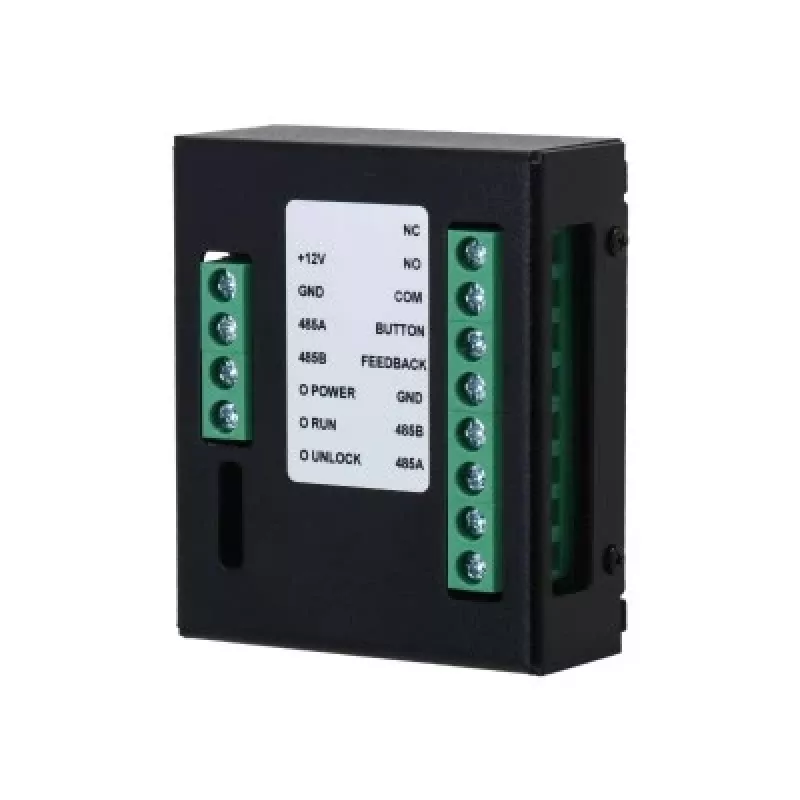

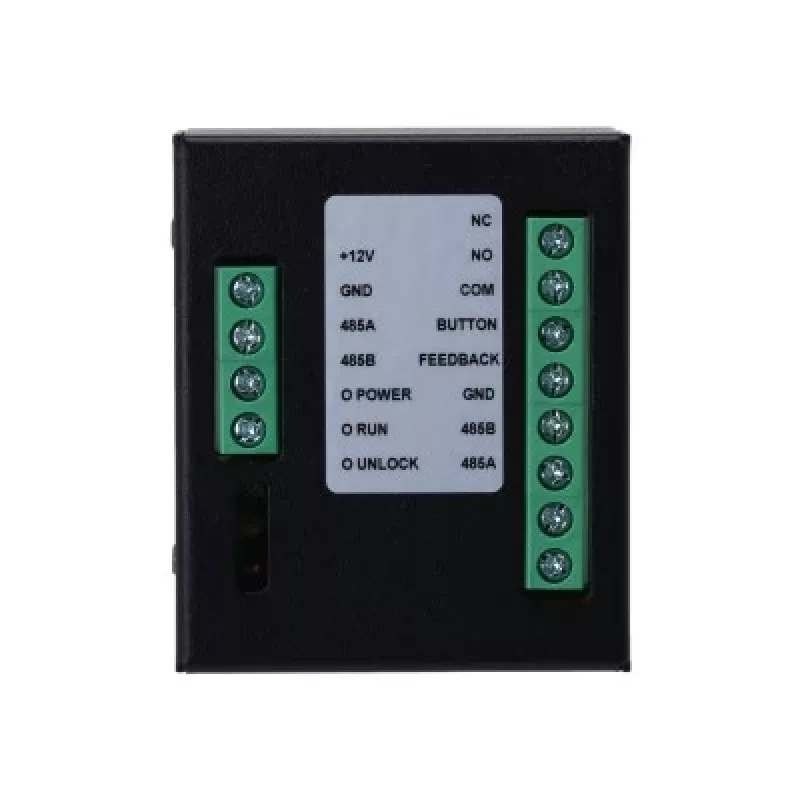

DAHUA DEE1010B-S2 is a compact access control reader accessory in black (58.2×20.2×49.2 mm) designed to integrate with compatible DAHUA access control terminals and door stations. CE and FCC certified, the module enables credential reading and secure entry management by connecting to electronic or magnetic locks and supporting RS-485 communication.

Advantages

The DEE1010B-S2 expands access control functions by working with access control terminals and door stations. Its RS-485 support ensures reliable serial communication with control panels, while three status indicators provide clear signals for power, operation and door status. The small form factor and certification (CE/FCC) make it suitable for installations with limited space and regulatory requirements.

Suitable for

• Door access points in offices and commercial buildings
• Gates and entry barriers requiring credential readers
• Controlled areas where a compact, certified reader module is needed

Key specifications

• Dimensions: 58.2×20.2×49.2 mm
• Color: Black
• Communication: RS-485
• Interfaces: connection to electronic or magnetic locks
• Indicators: 3 status LEDs (power, operation, door)
• Certifications: CE, FCC
• Brand/Model: DAHUA DEE1010B-S2

How to use

Install the DEE1010B-S2 module near the access point and connect it to the access control terminal or door station following the system manufacturer’s wiring diagram. Use the RS-485 interface for communication with the control panel and wire the module to the electronic or magnetic lock according to lock specifications. After wiring, power the system and verify indicator LEDs to confirm power, normal operation and door status.

Recommendations

Ensure installation by qualified personnel and follow local electrical and safety codes. Verify compatibility with your DAHUA access control system and perform functional tests after installation. Use the RS-485 wiring best practices (twisted pair, correct termination) to maintain communication reliability.
