Projekčné plátno Avtek International Tripod Standard 200

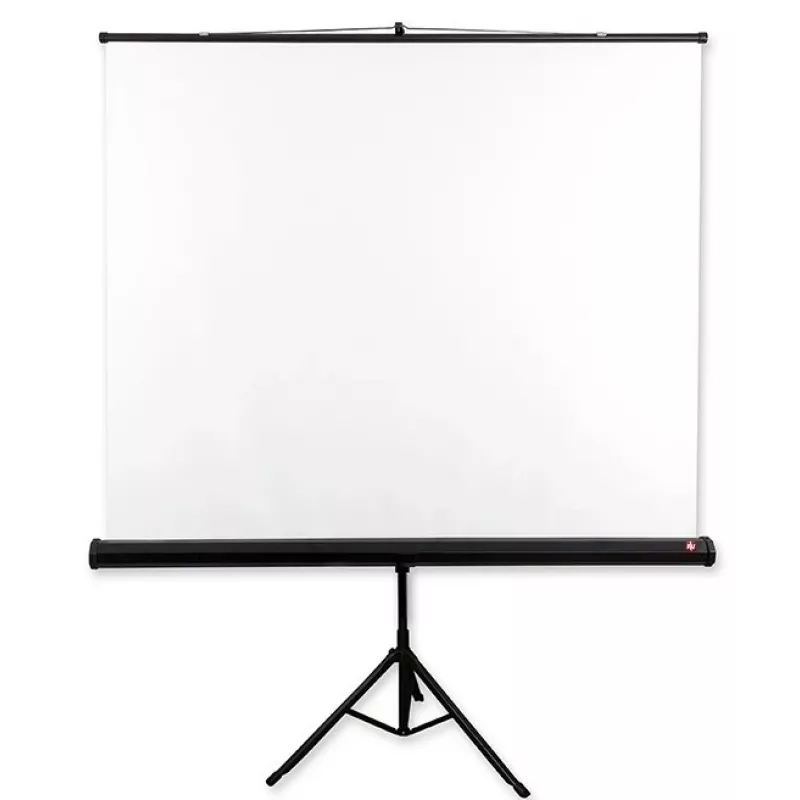

The Avtek International Tripod Standard 200 is a manual projection screen designed for mobile presentations and portable home cinema setups. It provides a viewable area of 2000 x 2000 mm with a native 16:10 capability and supports common aspect ratios including 1:1, 4:3, 16:9 and 16:10 through manual adjustment. The screen surface is matt white with a gain of 1.0 to deliver neutral color reproduction and even brightness across the image. The tripod construction and compact black metal casing allow quick setup, folding and transport for indoor and outdoor use.

Advantages

The screen combines a lightweight tripod mechanism with a robust black metal casing for durability and portability. An ergonomic carriage and height adjustment handle simplify deployment and allow precise positioning. A special adjustable arm reduces keystone distortion by changing the screen angle, improving image geometry without electronic correction. The matt white surface and gain factor 1.0 provide consistent, neutral image quality suitable for data and video content.

Suitable for

• Business presentations and meetings
• Portable training and classroom use
• Home cinema and movie viewing
• Outdoor events with sheltered projection equipment

Key specifications

• Viewable area: 2000 x 2000 mm
• Supported aspect ratios: 1:1, 4:3, 16:9, 16:10 (manual)
• Projection surface: matt white
• Gain factor: 1.0
• Casing material: black metal
• Upper bar height range: 250–310 cm

How to use

Place the tripod on a stable, level surface and unfold the legs until the unit stands vertically. Use the ergonomic carriage and height adjustment handle to raise the upper bar to the desired height within the 250–310 cm range. Pull the projection surface up from the casing and lock it in place according to the mechanical latch. Adjust the screen angle with the special arm to reduce keystone distortion and align the image with the projector output. For transport, unlock the surface, retract it into the casing, fold the tripod and secure the unit in its metal housing.

Recommendations

Position the projector perpendicular to the screen when possible and use the adjustable arm to make fine corrections to the viewing angle; this minimizes keystone distortion and preserves image geometry. For best results with the matt white surface and gain 1.0, control ambient light and use a projector with suitable brightness for the chosen screen size and viewing distance.
