Projekčné plátno Elite Screens Saker SK110XHW-E12

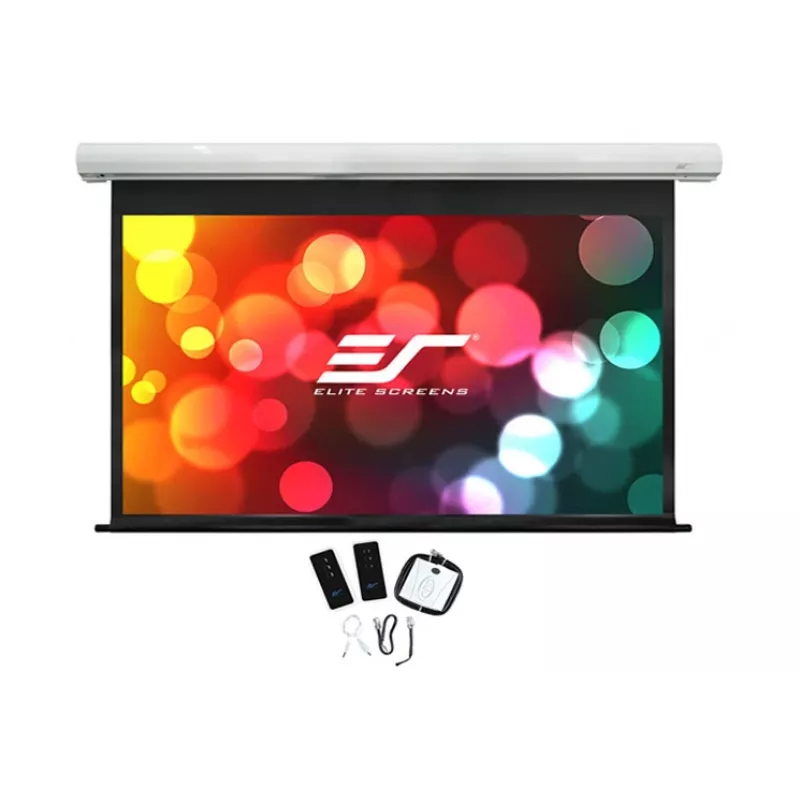

The Elite Screens Saker SK110XHW-E12 is a motorized projection screen with a 110" (2.79 m) diagonal and a 16:9 native aspect ratio. The viewable area measures 2.44 m in width and 136.9 cm in height. The screen uses MaxWhite Fiberglass (FG) material with 1.1 gain, a 180° wide viewing angle, is Active 3D and 4K Ultra HD ready, and includes standard black masking borders plus black backing for improved contrast and light rejection.

Advantages

The motorized drive provides smooth, quiet operation with a synchronous motor and low power consumption. The MaxWhite FG surface is GREENGUARD and GREENGUARD Gold certified and meets NFPA 701 flame retardant standards. Integrated RF/IR receivers with included remotes, an RJ45 control port, detachable 3‑way wall switch keypad and a wireless 5–12 V trigger offer multiple control options. The screen’s tab‑tension system and extra top black masking border maintain a flat, well‑framed image suitable for different ceiling heights.

Suitable for

• Home theater screening and living-room cinema
• Conference rooms and presentation environments
• Classrooms and lecture halls

Key specifications

• Diagonal: 110" (2.79 m)
• Aspect ratio: 16:9
• Viewable width x height: 244 cm x 136.9 cm
• Screen material: MaxWhite Fiberglass (FG), 1.1 gain, 180° viewing angle
• Masking/backing: Standard black masking borders, black backing; extra top masking border

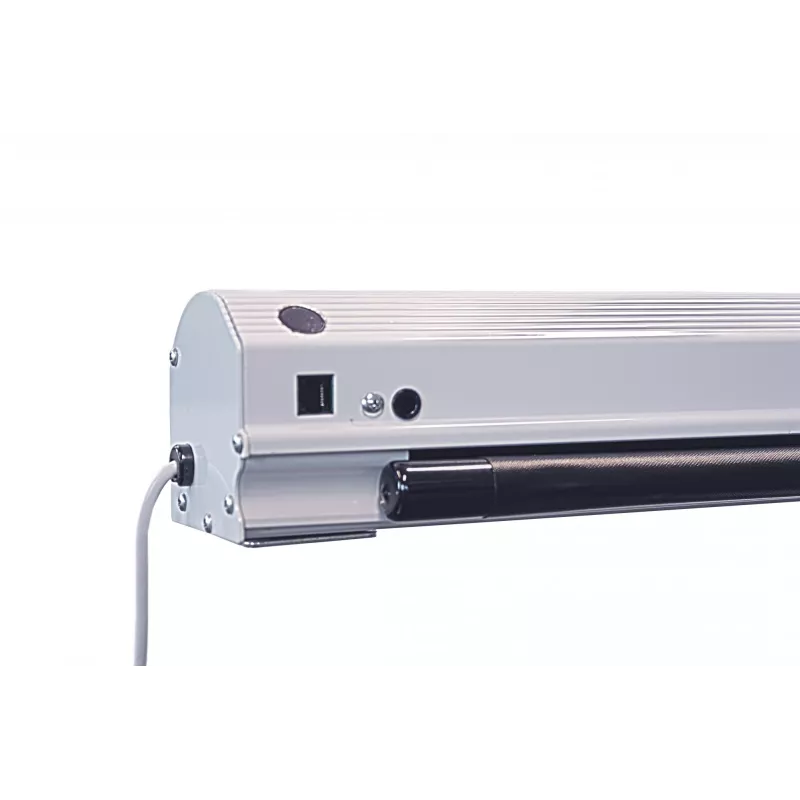

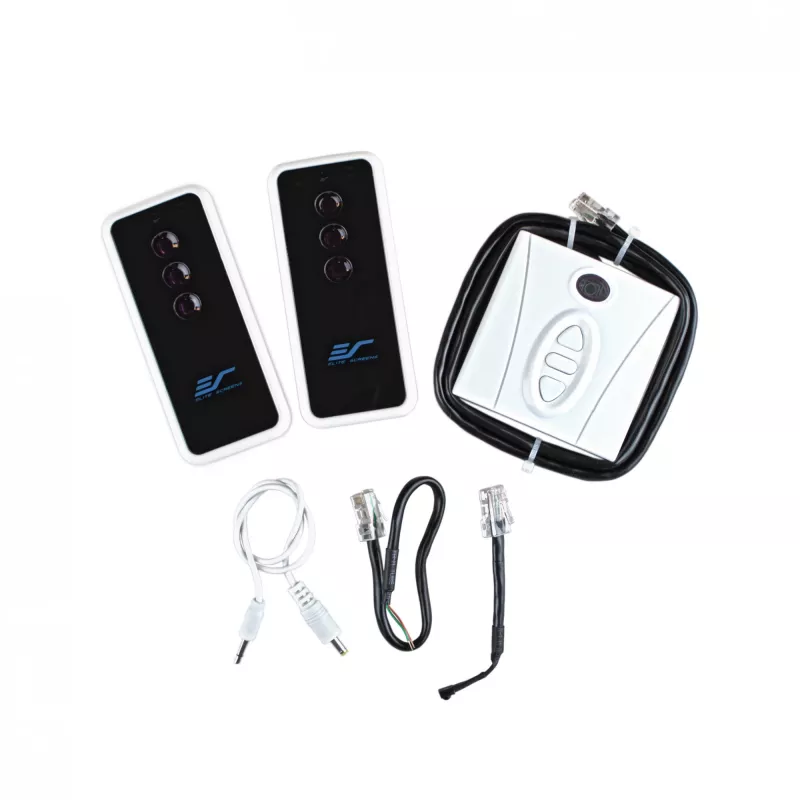

• Control: Internal RF/IR receivers, IR and RF remotes included, detachable 3‑way wall switch, wireless 5–12 V trigger, RJ45 port for integration

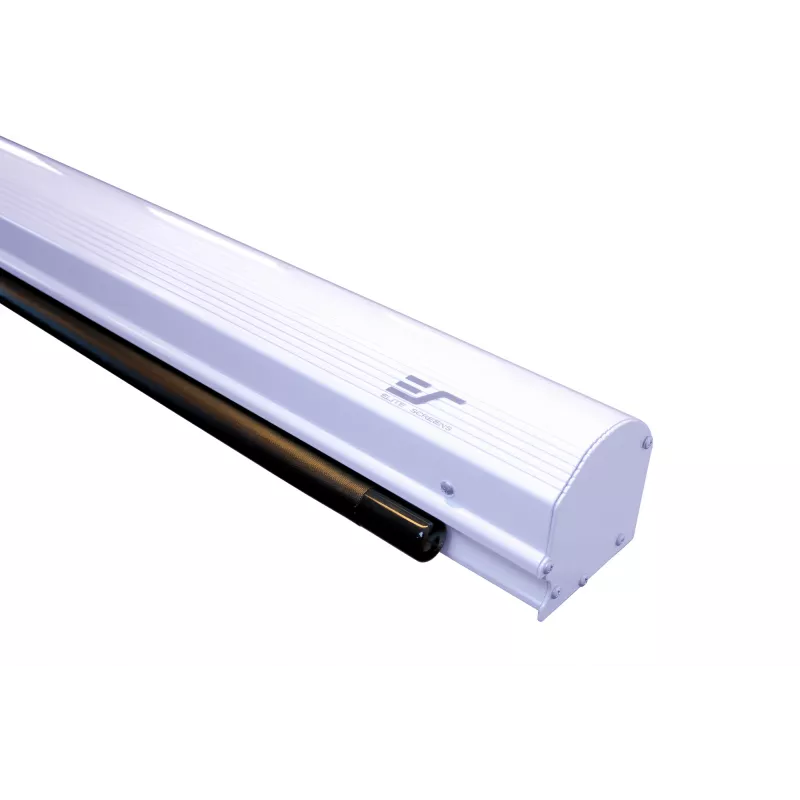

• Housing: Curved enamel white aluminum case with parallel grooves; wall or ceiling mountable

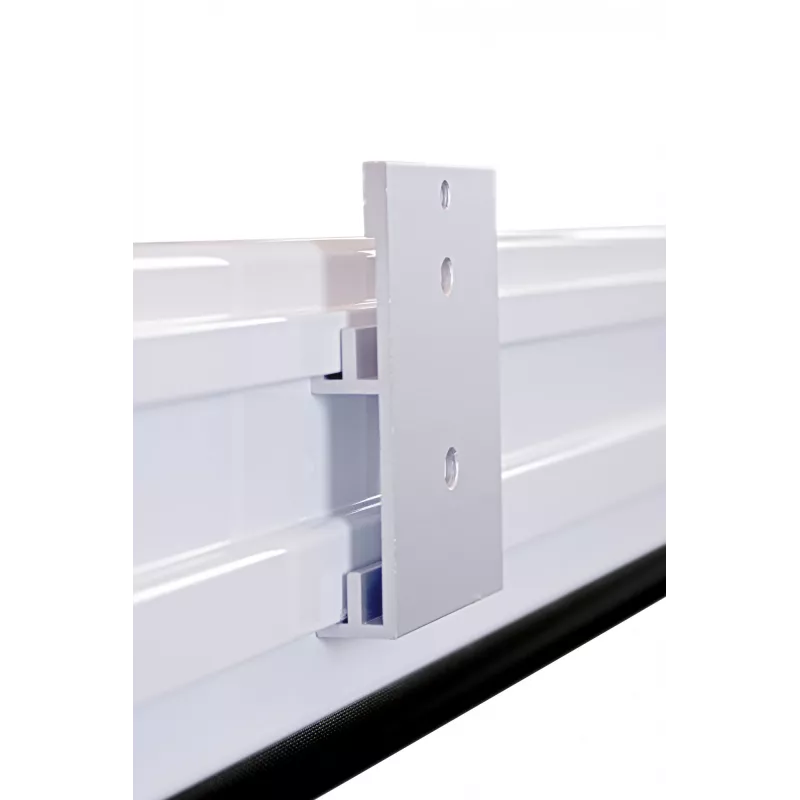

• Design features: Tab‑tension, flush hidden wall mounts for horizontal adjustment, plug & play (no hardwire required)
• Certifications: GREENGUARD and GREENGUARD Gold; NFPA 701 (MaxWhite FG)
• Weight: 12.89 kg
• Overall size (H x W): 243.6 x 136.9 cm

How to use

Install the supplied mounting hardware on a wall or ceiling following the included instructions; the flush hidden mounts allow horizontal adjustment for centering. Connect power and use the included IR or RF remote, the detachable 3‑way wall keypad, or the wireless 5–12 V trigger to raise, stop or lower the screen. For integration with third‑party control systems, connect via the RJ45 port. The motor is silent during operation; allow the screen to fully extend or retract before releasing the control.

Iesaka lietošanai

Locate the screen at a suitable height so the extra top masking border can be used if you have a high ceiling. For best image quality, pair the screen with a projector matched to a 16:9 surface and adjust projector keystone and focus while the screen is fully extended. Periodically check the mounting hardware and tension system for secure attachment and flatness.
