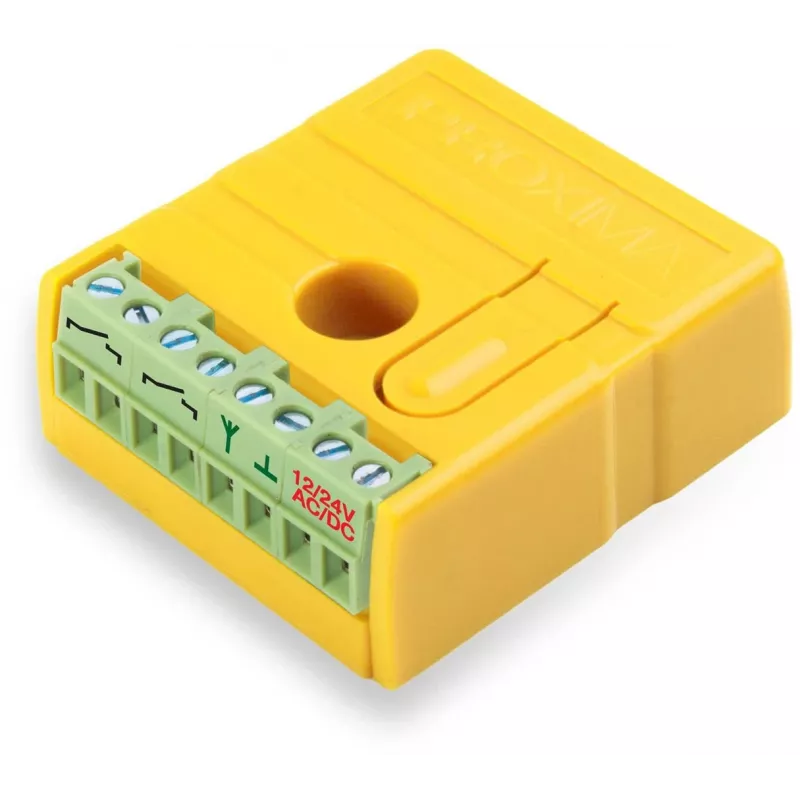

Proxima NW2 PR4 ovládač/rádiový prijímač - systém Proxima 433,92MHz

The Proxima NW2 PR4 is a universal two-channel controller/radio receiver operating on the Proxima 433.92MHz system. It is powered by 12–24V AC/DC and works with rolling-code Proxima 433.92MHz remotes, and may also be compatible with remotes from other manufacturers based on the KeeLoq 433.92MHz system. The receiver allows button combinations to be programmed to a channel and is designed for controlling gate drives and other devices.

Key features

• Two-channel receiver
• Rolling-code operation with Proxima 433.92MHz remotes
• May be compatible with other manufacturers' remotes based on KeeLoq 433.92MHz
• Button combinations can be programmed to a channel
• Designed for controlling gate drives and other devices

Specifications

• Brand: Proxima
• MPN: NW2 PR4
• Power supply: 12–24V AC/DC
• Current consumption: 15 mA
• Outputs: 2 channels / 24V-1A relay NO
• Number of remotes: 999 remotes 433.92MHz
• Channel modes: Monostable (1–999 seconds), Bistable, TDJN – As Long As You Press
• Dimensions: 37 x 41 x 15mm (hole 4/8 mm)
• Weight: 23g
