Proxima PSA Fotoelektrické bunky (proti kolízii) - 1 pár

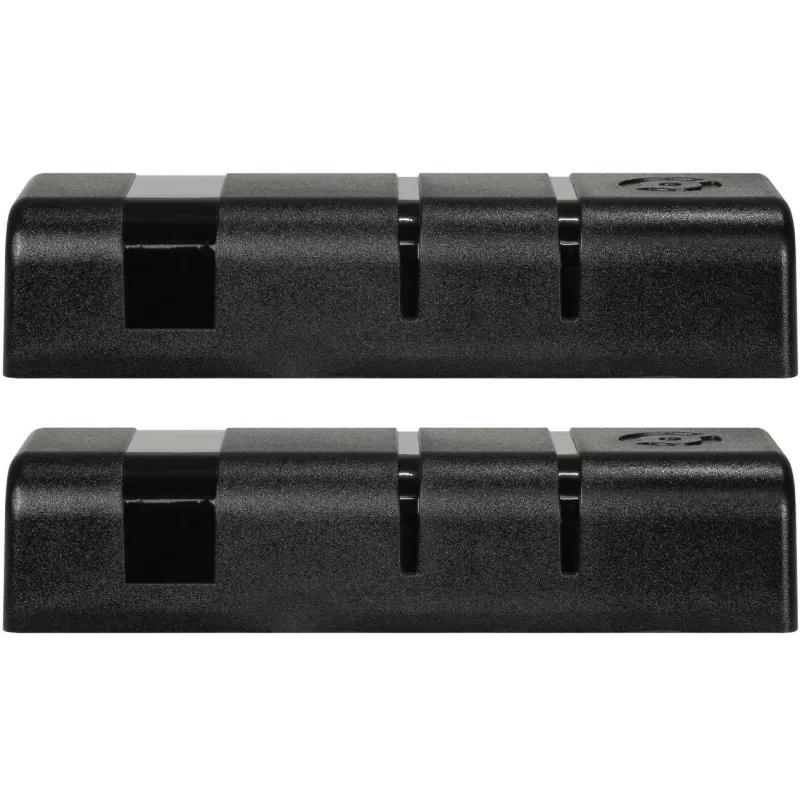

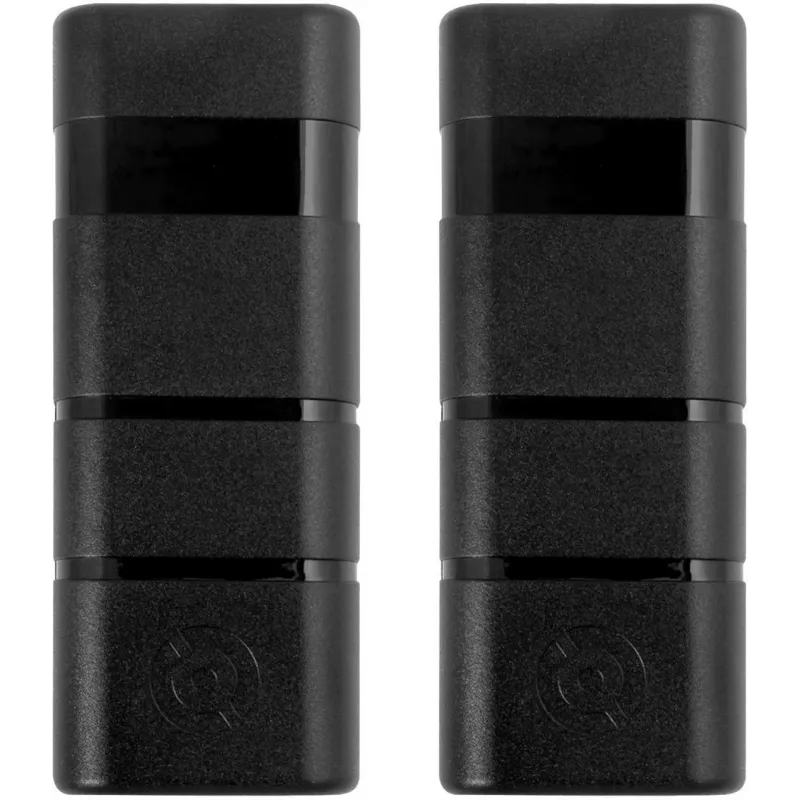

The Proxima PSA photoelectric cells are a high-quality safety solution designed for automated gate systems, garage doors, and barriers. This anti-collision pair consists of a transmitter and receiver, ensuring reliable detection and preventing accidents. With a detection range of up to 15 meters and an IP54 protection rating, these sensors are suitable for both indoor and outdoor use.

Advantages

Easy to install with surface mount design, durable construction with IP54 rating, and versatile power supply (12-24V AC/DC). The relay output (NO/NC) allows integration with various control systems.

Suitable for

• Automated gate safety
• Garage door obstruction detection
• Industrial barrier systems
• Access control applications

Key specifications

• Sensor Type: Photoelectric (Transmitter/Receiver Pair)
• Detection Range: Up to 15 m
• Power Supply: 12-24V AC/DC
• Output Type: Relay (NO/NC)
• Receiver Current Consumption: 30 mA
• Transmitter Current Consumption: 20 mA
• Operating Temperature: -20°C to +60°C
• Protection Rating: IP54
• Beam Type: Infrared
• Anti-Collision Function: Yes
• Mounting Method: Surface Mount
• Quantity: 1 Pair (Transmitter and Receiver)

Recommendations

For optimal performance, ensure proper alignment of the transmitter and receiver. Test the system regularly to maintain safety standards.
