Vŕtačka | TBM 220 | 85 W

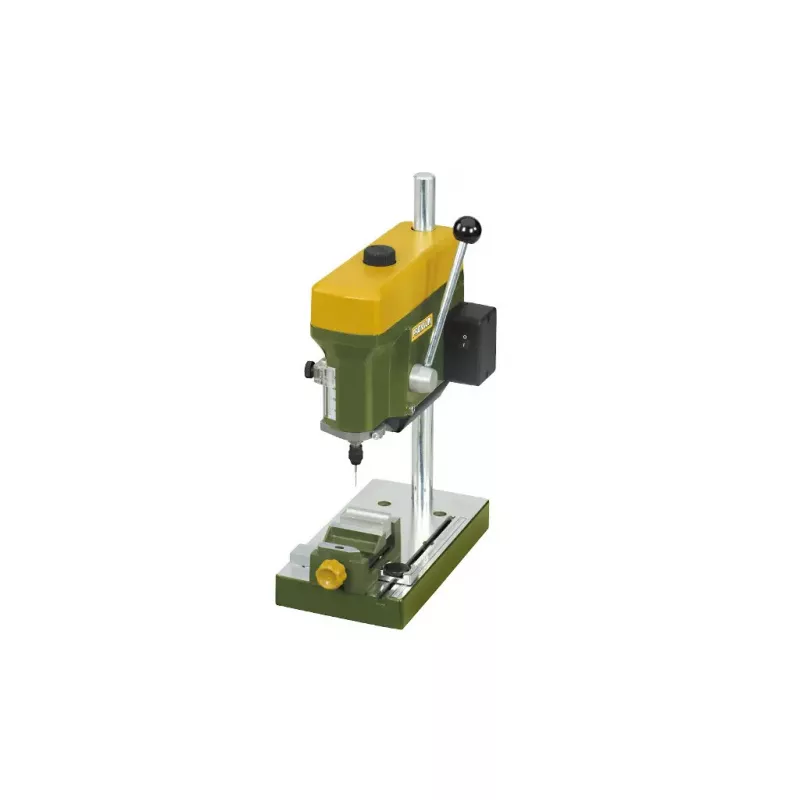

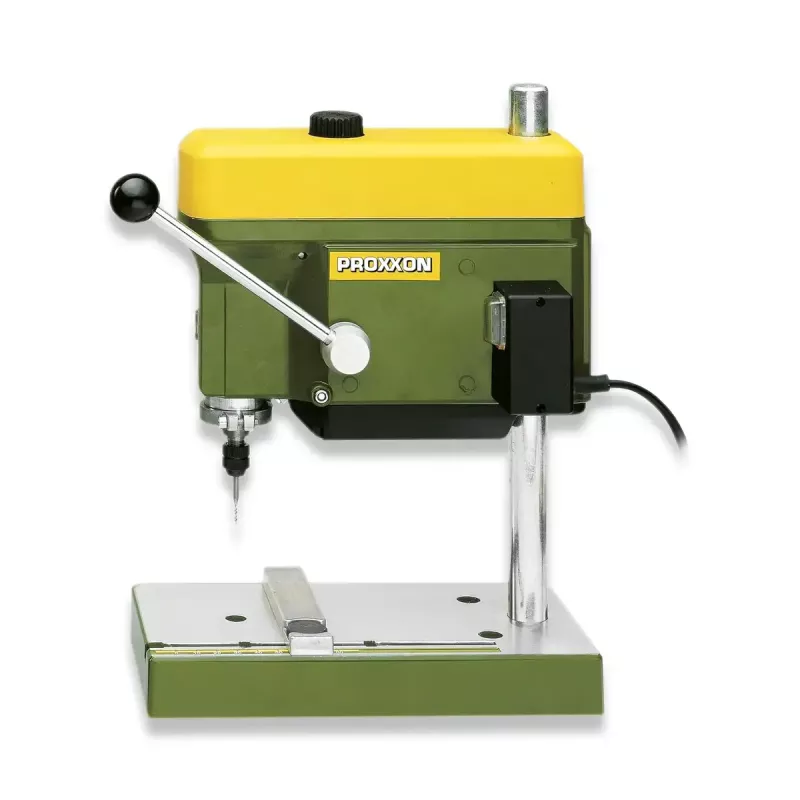

The TBM 220 drilling machine is a compact benchtop drill designed for light workshop and hobby use. It features a cast-aluminium table with adjustable supports and threaded holes for mounting a mini workbench, a sturdy steel column and a VDE-approved quiet motor. Power is transmitted via aluminium pulleys and a flat belt drive, and three spindle speeds provide increased torque at low speed.

Advantages

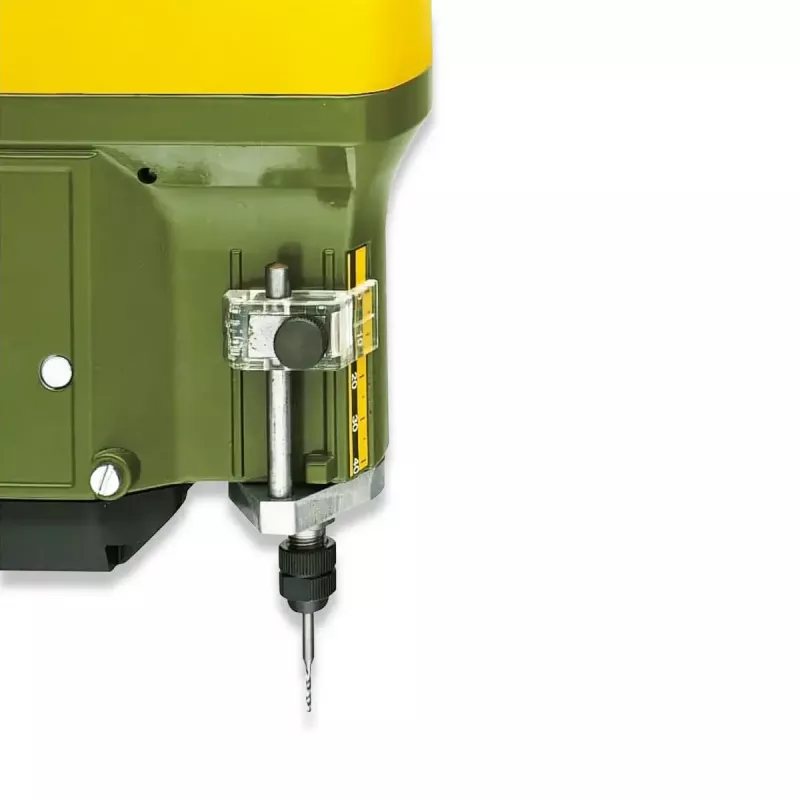

The unit offers a smooth milled work table (220 x 120 mm) with scale and adjustable supports, a robust chrome-plated steel column for stable operation, and a die head engineered for quiet, durable performance. Three selectable spindle speeds (1800 / 4700 / 8500 RPM) multiply torque at lower speeds while an adjustable feed lever with depth scale enables repeatable drilling depth control. The drill runs on standard 230 V supply and has an overall lightweight, compact package for easy placement on a workbench.

Suitable for

• Light drilling tasks in metal, wood and plastics
• Hobbyist and model-making work
• Small workshop and bench-top repair jobs

Key specifications

• Power: 85 W
• Voltage: 230 V
• Rotational speeds: 1800 / 4700 / 8500 RPM
• Work table: cast aluminium, 220 x 120 mm, with adjustable supports and scale
• Column: chrome-plated steel, approx. 340 x 20 mm
• Net weight: 3.33 kg
• Gross weight (packed): 3.70 kg
• Package dimensions (L×W×H): 320 × 240 × 130 mm
• Packaging materials: paper/cardboard and plastic components
• Warranty: 24 months

How to use

Mount the TBM 220 securely on a stable workbench or the optional KT 70 mini workbench using the threaded holes on the table. Connect the machine to a 230 V power supply and select the appropriate spindle speed for the material and drill bit size. Use the adjustable supports and table scale to position the workpiece, and lower the feed lever while monitoring the depth scale to achieve the required drilling depth. After use switch off power and clean the table and column to remove chips and dust.

Recommendations

Use appropriate drill bits and cutting speeds for the material to avoid overheating. Wear eye and hearing protection during operation and secure small workpieces with clamps or a vice. Do not use the machine in wet conditions and follow local waste disposal rules for packaging materials and electrical equipment.
