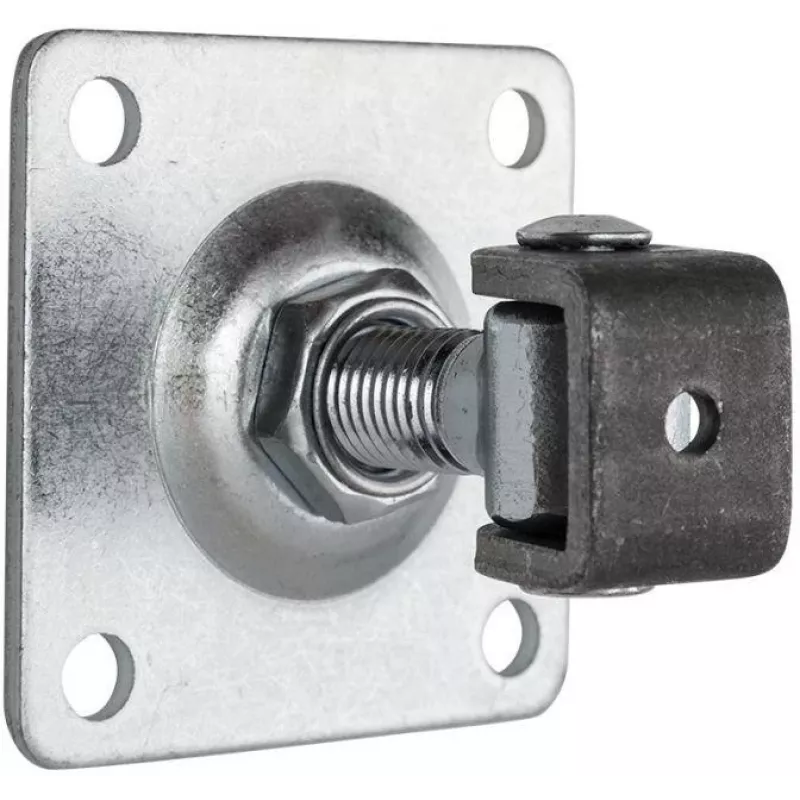

PSG 61.018 Nastaviteľný záves brány s 80x80x3 mm privarovacou doskou, závit M16

Fabricators and metalworkers building heavy gates, industrial doors, or structural frames often need a hinge that can handle serious weight while still allowing fine adjustment after welding. The PSG 61.018 adjustable gate hinge answers that call with a robust steel body, a generous 80 x 80 x 3 mm weld-on plate, and an M16 threaded pin that lets you fine-tune the gate's position vertically and horizontally.

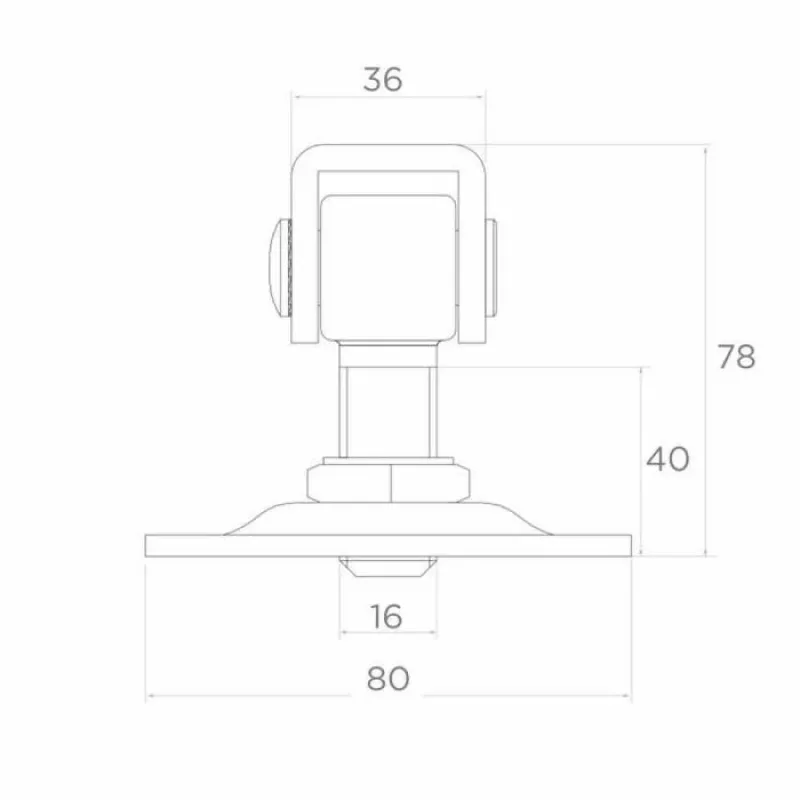

Key specifications

• Hinge type: Adjustable gate hinge with threaded pin
• Mounting method: Weld-on plate, 80 x 80 x 3 mm
• Thread type: M16 (metric 16 mm)
• Material: Steel, raw (uncoated) finish
• Adjustability: Vertical and horizontal, approx. 25 mm range
• Pin diameter (pivot): 16 mm
• Overall hinge height: approx. 110 mm
• Threaded pin length: approx. 60 mm
• Bearing type: Plain bearing
• Corrosion resistance: Low — requires painting or coating
• Application: Gates, heavy doors, industrial structures
• Country of origin: Poland

Why choose it

Unlike fixed hinges that demand perfect alignment during welding, this model's M16 threaded pin allows post-installation adjustment. You can compensate for slight frame movement, sag, or uneven ground without cutting and re-welding. The thick 3 mm mounting plate provides a stable base for welding to metal posts or frames, and the plain bearing design ensures smooth operation under heavy loads. Because it comes in raw steel, you can finish it to match your project — powder coat, paint, or galvanize as needed.

Ideal use cases

• Heavy driveway and farm gates that need periodic realignment
• Industrial doors and access panels in warehouses or workshops
• Custom metal frames and structural assemblies where weld precision is challenging
• Projects requiring a corrosion-resistant finish applied after installation

Good to know

The hinge is supplied as two components: the hinge body with threaded pin and the separate mounting plate. It is designed for welding to metal surfaces only. For outdoor use, apply a protective coating to prevent rust. The plain bearing may require occasional lubrication for optimal performance.
