PSG 61.019 nastaviteľný zvárací záves s montážnou doskou 100x100x4 mm - M20 závit

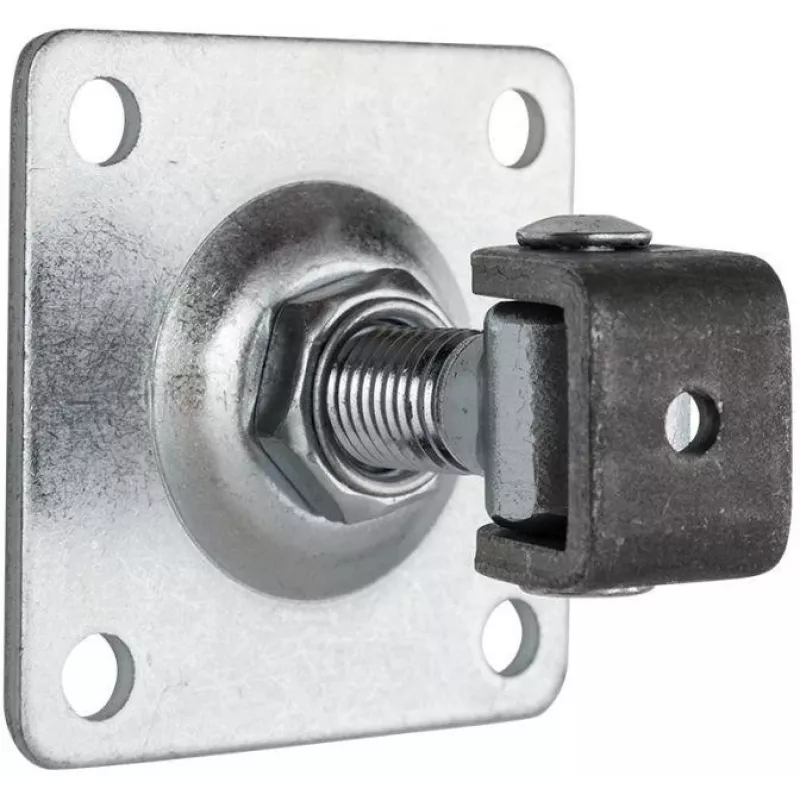

The PSG 61.019 adjustable weld-on hinge is a robust and versatile solution for heavy-duty gates, industrial doors, and machinery. Designed with a 100x100x4mm mounting plate and M20 threaded adjustment mechanism, this hinge allows precise alignment and easy installation. The galvanized steel construction ensures excellent corrosion resistance, making it suitable for outdoor and industrial environments.

Advantages

Adjustable design with threaded rod and locking nut enables fine-tuning of door or gate alignment after installation. Weld-on mounting provides a permanent, secure attachment. Galvanized finish offers long-lasting protection against rust and weathering.

Suitable for

• Heavy-duty gates
• Industrial doors
• Machinery enclosures
• Outdoor structures requiring corrosion resistance

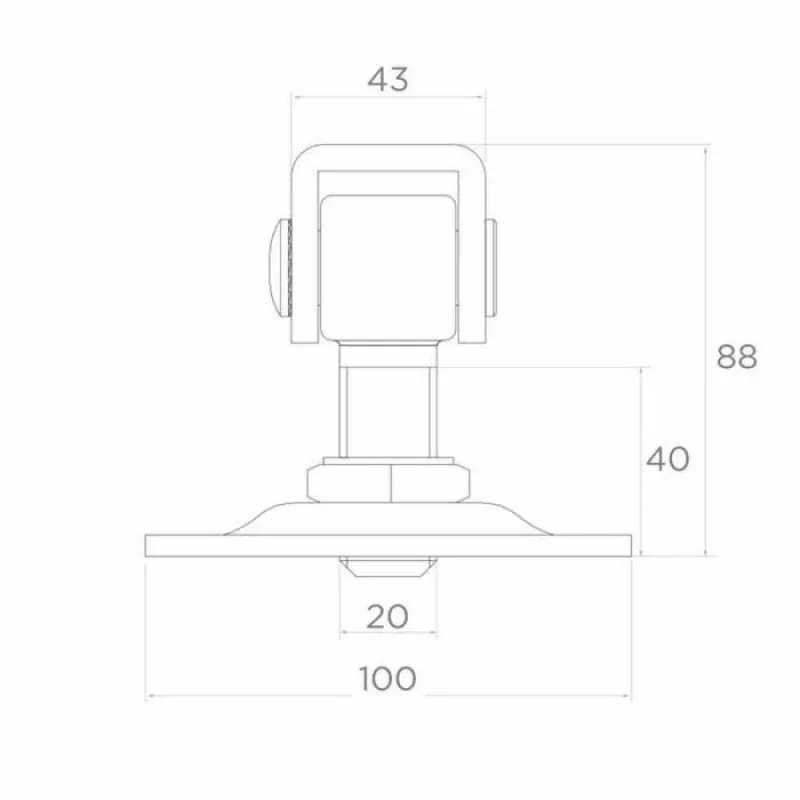

Key specifications

• Hinge Type: Adjustable Weld-On Hinge
• Mounting Plate: 100 x 100 x 4 mm
• Thread Size: M20
• Material: Steel, Galvanized
• Rotation Angle: Up to 180 degrees
• Number of Parts: 2 (hinge leaf with pin assembly)

Recommendations

For optimal performance, ensure proper welding technique and use appropriate safety gear. The adjustable feature allows for minor corrections post-installation, reducing the need for precise initial alignment.
