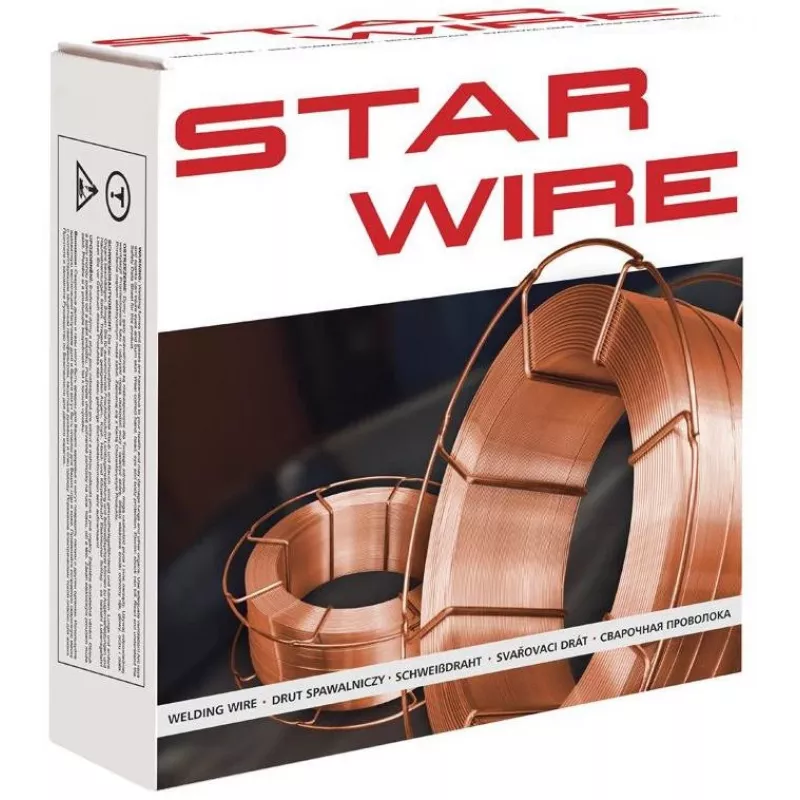

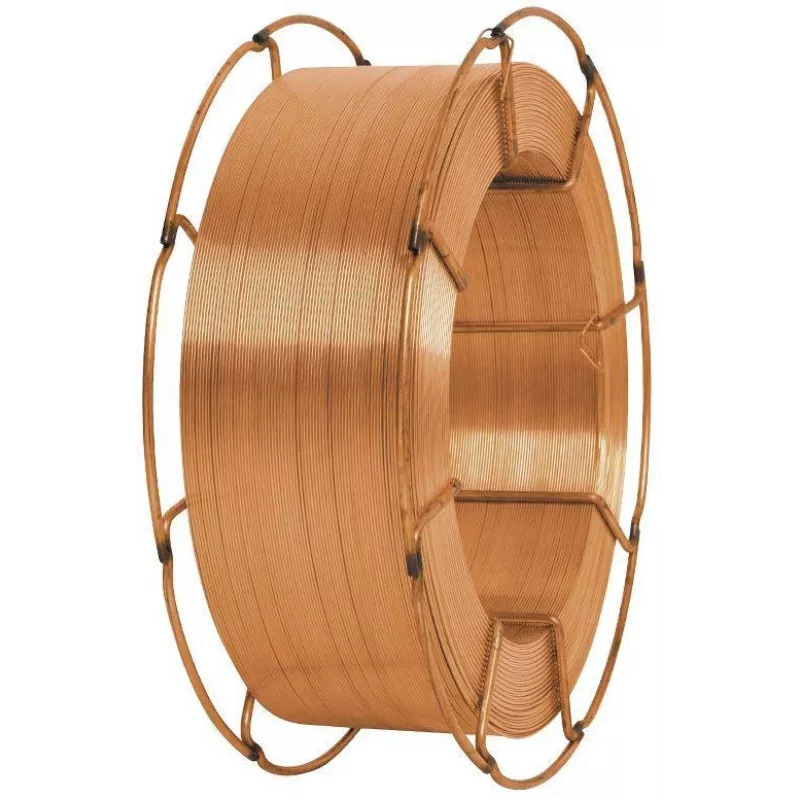

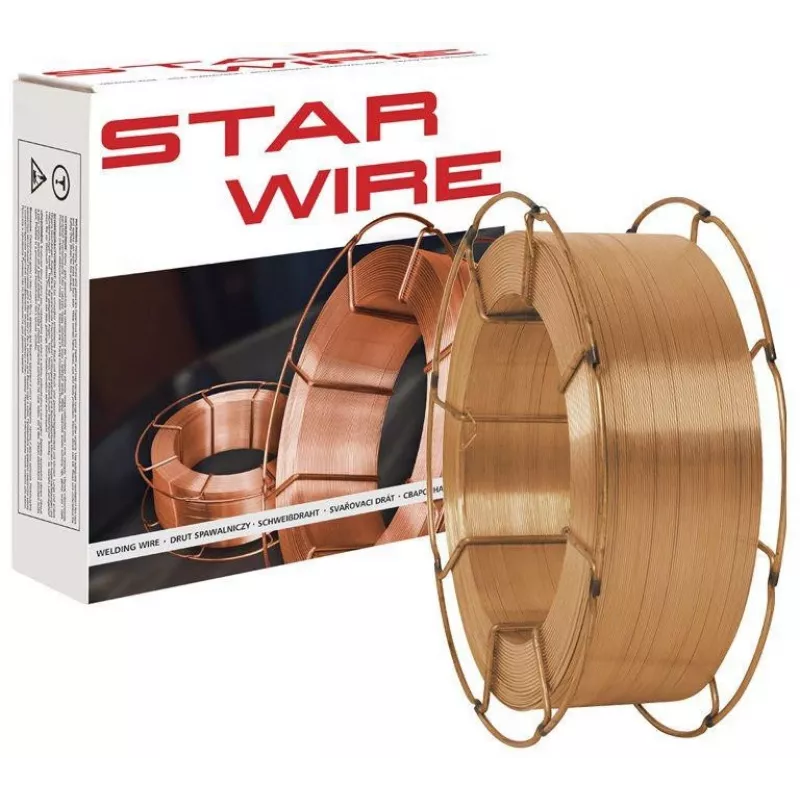

PSG STAR WIRE zvárací drôt 0,8 mm 15 kg ER70S-6 G3Si1 SP.001.08X

The PSG STAR WIRE SP.001.08X is a premium quality solid welding wire designed for MIG/MAG (GMAW) processes. With a diameter of 0.8 mm and a spool weight of 15 kg, this copper-coated low alloy steel wire offers excellent arc stability, low spatter, and high-quality welds. It is classified under AWS ER70S-6 and EN ISO G3Si1, making it suitable for a wide range of applications including general fabrication, structural steel, automotive repair, and shipbuilding.

Advantages

This welding wire provides superior feeding performance due to its uniform copper coating and precise winding. It ensures consistent weld quality with high tensile strength (500-640 MPa) and excellent elongation (>22%). The wire is compatible with CO2 and Ar/CO2 shielding gas mixtures, offering versatility for different welding conditions.

Suitable for

• General fabrication and structural steel welding
• Automotive repair and maintenance
• Shipbuilding and heavy equipment manufacturing
• Pipe welding and pressure vessel construction

Key specifications

• Wire Diameter: 0.8 mm
• Spool Weight: 15 kg
• Spool Diameter: 300 mm (D300)
• Material: Low Alloy Steel, Copper Coated
• Welding Process: MIG/MAG (GMAW)
• Classification: AWS ER70S-6, EN ISO G3Si1
• Tensile Strength: 500-640 MPa
• Yield Strength: >420 MPa
• Elongation: >22%
• Chemical Composition: C 0.06-0.12%, Si 0.80-1.20%, Mn 1.40-1.85%
• Polarity: DC Electrode Positive (DC+)
• Shielding Gas: CO2, Ar/CO2 Mix

Recommendations

For optimal welding results, use with appropriate shielding gas and maintain proper wire feed speed and voltage settings. Store in a dry environment to prevent rust. Suitable for both manual and automated welding applications.
