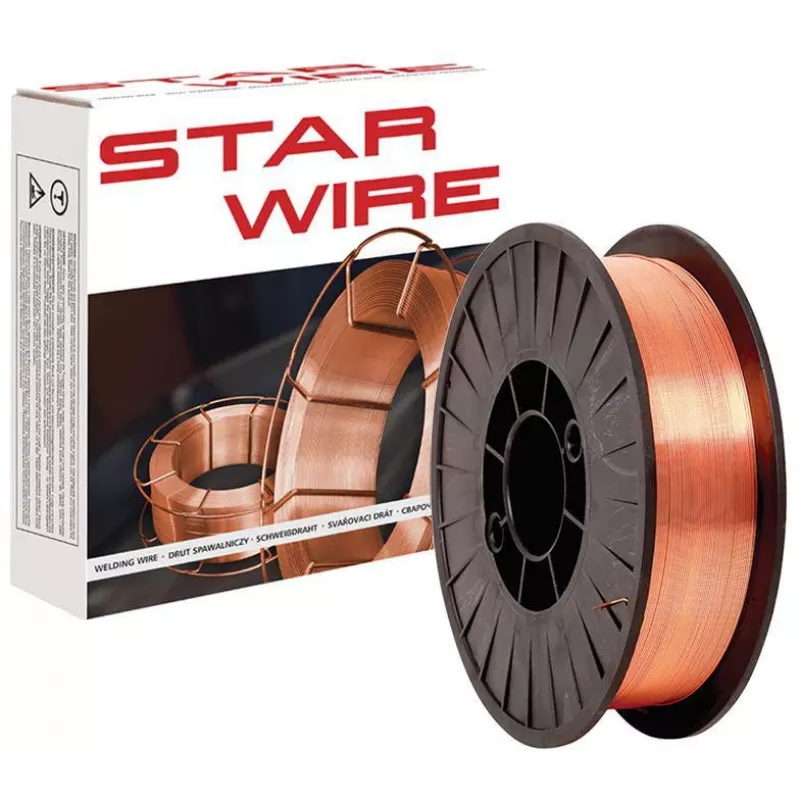

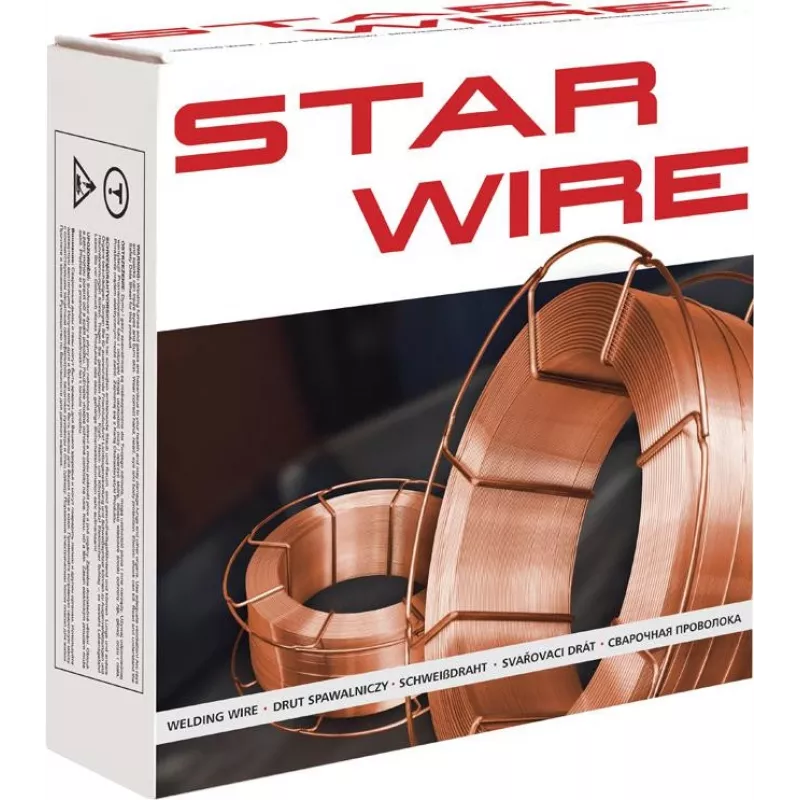

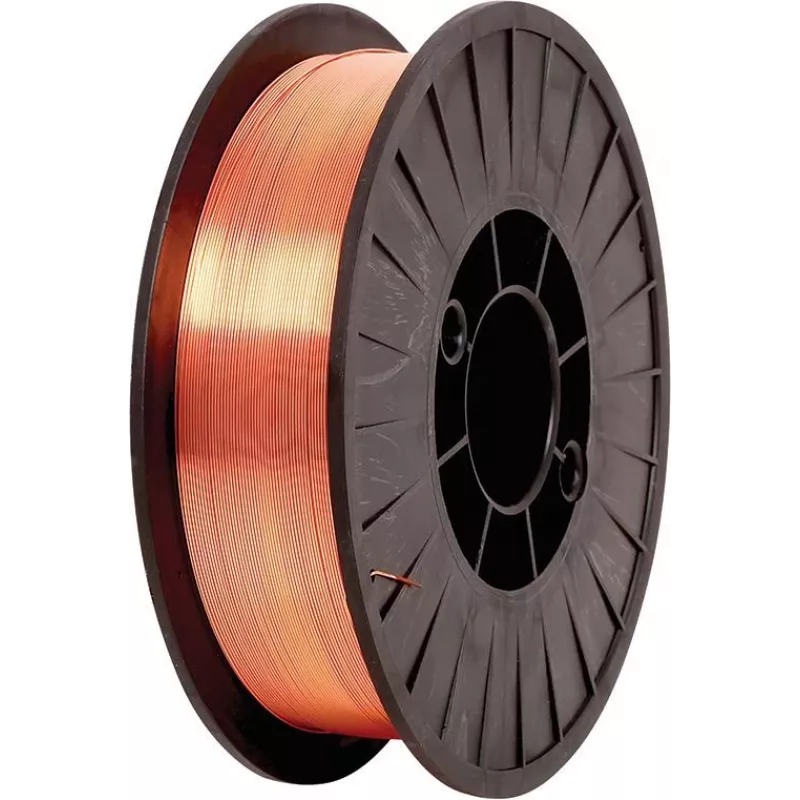

PSG STAR WIRE zvárací drôt 1 mm (5 kg) SP.005.10X

The PSG STAR WIRE SP.005.10X is a premium copper-coated solid welding wire designed for MIG/MAG (GMAW) processes. With a diameter of 1.0 mm and a 5 kg spool, this wire is ideal for welding mild steel and low-alloy steel, offering stable arc characteristics and low spatter for professional results.

Advantages

This welding wire provides excellent arc stability, minimal spatter, and consistent weld quality. The copper coating ensures good electrical conductivity and corrosion resistance, while the plastic spool packaging allows for smooth wire feeding. It meets international standards AWS A5.18 ER70S-6 and EN ISO 14341-A G3Si1, ensuring reliability and performance.

Suitable for

• MIG/MAG welding of mild steel and low-alloy steel
• Automotive repair and fabrication
• General metalworking and construction
• Industrial manufacturing and maintenance

Key specifications

• Wire Diameter: 1.0 mm
• Spool Weight: 5 kg
• Welding Process: MIG/MAG (GMAW)
• Material Compatibility: Mild Steel, Low-Alloy Steel
• Classification (AWS): A5.18 ER70S-6
• Classification (EN ISO): 14341-A G3Si1
• Shielding Gas: Required (e.g., Ar/CO2 mix, CO2)
• Polarity: DC+ (DCEP)
• Coating: Copper-coated
• Tensile Strength (Rm): 500 - 640 MPa
• Yield Strength (ReH): >420 MPa
• Elongation (A5): >22%
• Impact Strength (ISO-V): >47 J at -30°C
• Carbon Content: 0.06 - 0.12%
• Silicon Content: 0.80 - 1.15%
• Manganese Content: 1.40 - 1.85%
• Arc Characteristics: Stable arc, low spatter
• Slag Formation: Slag-free (solid wire)
• Packaging Type: Plastic Spool

Recommendations

For optimal welding results, use with appropriate shielding gas (e.g., 75% Ar / 25% CO2) and ensure proper storage in a dry environment to maintain wire quality. Suitable for both semi-automatic and automatic welding applications.
