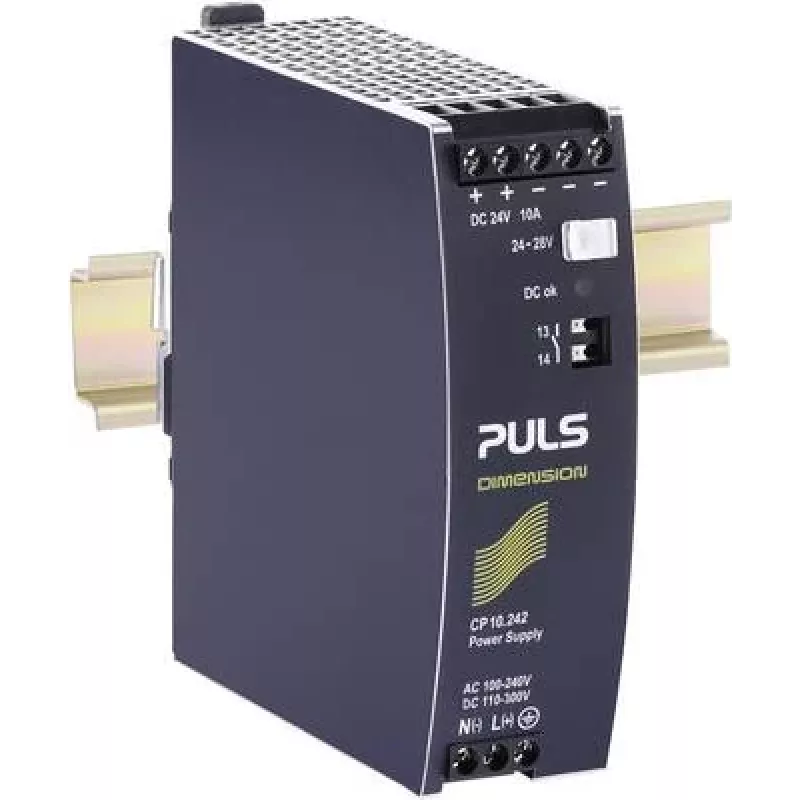

PULS CP10.242 napájací zdroj na DIN lištu 24V DC 10A 240W 1 výstup

In industrial control cabinets, the PULS CP10.242 DIN rail power supply delivers a stable 24 V DC output with 10 A current and 240 W power. It is built for automation systems, machine builders, and panel shops that need reliable power conversion from a wide-range AC input.

Key specifications

• Output voltage: 24 V DC (adjustable 24-28 V)
• Output current: 10 A
• Output power: 240 W
• Input voltage: 90-264 V AC (110-150 V DC)
• Efficiency: 94.3% at 230 V AC, 24 V, 10 A
• Mounting: DIN rail
• Operating temperature: -25 to +70 °C (derating above +60 °C)
• Protection: IP20, overload, short circuit, overvoltage
• Connections: Screw terminals
• Power factor correction: Active PFC
• Ripple & noise: <50 mVpp
• Hold-up time: >20 ms at 230 V AC, 24 V, 10 A
• MTBF: >900,000 hours (IEC 61709)
• Cooling: Convection
• Certifications: UL 61010-1, UL 61010-2-201, UL 508, IEC 61010-1, IEC 61010-2-201, EN 61010-1, EN 61010-2-201, SEMI F47

Why choose it

The CP10.242 combines high efficiency with a compact DIN rail form factor. Active PFC ensures clean power usage, and the wide temperature range supports demanding environments.

Ideal use cases

• Industrial automation and PLC systems
• Machine building and control panels
• Process control and instrumentation

Good to know

The output voltage is adjustable from 24 to 28 V DC to compensate for voltage drops. Convection cooling means no fan is required, reducing maintenance and noise.
