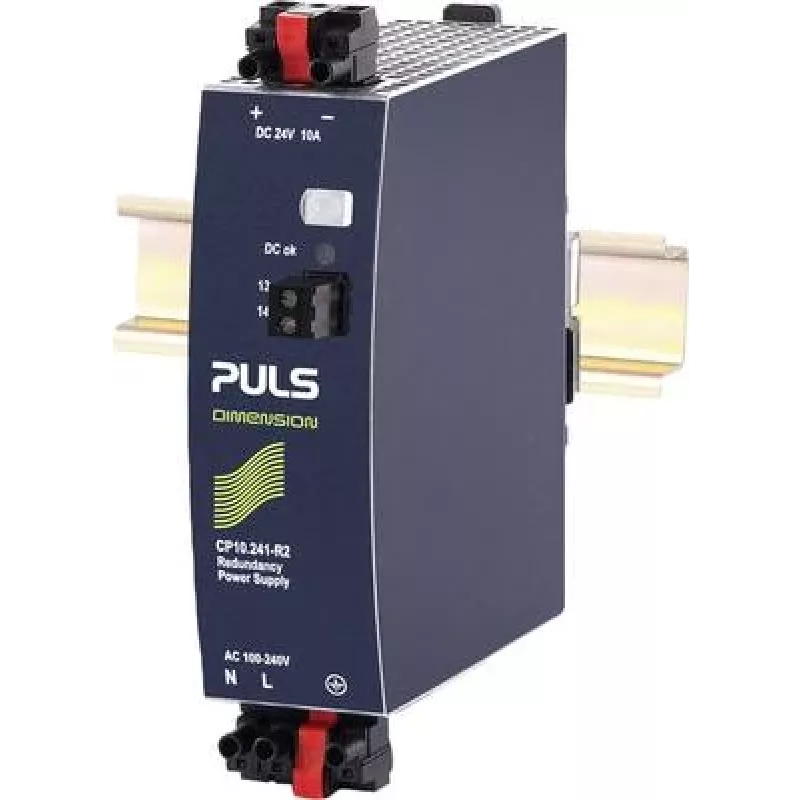

PULS DIMENSION napájací zdroj na DIN lištu 10 A 240 W (CP10.241-R2)

Industrial DIN-rail power supply delivering 240 W output power at 24 VDC and 10 A, with active power factor correction and high efficiency for demanding automation applications.

Advantages

The CP10.241-R2 achieves 94.3% efficiency at 230 VAC, reducing energy losses and heat generation. Active PFC (>0.99) ensures compliance with harmonic current standards. Convection cooling eliminates fan noise and maintenance, while the robust metal housing withstands harsh industrial environments.

Suitable for

• Machine building and control cabinets
• Industrial automation systems
• Process control and instrumentation
• Building automation

Key specifications

• Output: 24 VDC, 10 A, 240 W
• Input: 100-240 VAC (85-264 VAC nominal) or 110-150 VDC (90-300 VDC nominal)
• Efficiency: 94.3% at 230 VAC
• Active PFC: >0.99
• Ripple & noise: <50 mVpp
• Hold-up time: >20 ms at 230 VAC
• Operating temperature: -25°C to +70°C
• Protection: Overload, short-circuit, overvoltage, overtemperature
• Output voltage adjustment: 24-28 V
• Parallel operation: Yes (for increased power or redundancy)
• MTBF: >1,000,000 hours (SN 29500, 40°C)
• Connection: Screw terminals
• Mounting: DIN rail TS35/7.5 or TS35/15

Recommendations

For reliable 24 VDC power in industrial control systems, the CP10.241-R2 offers high efficiency and active PFC. Its convection cooling and wide temperature range make it suitable for demanding environments.
