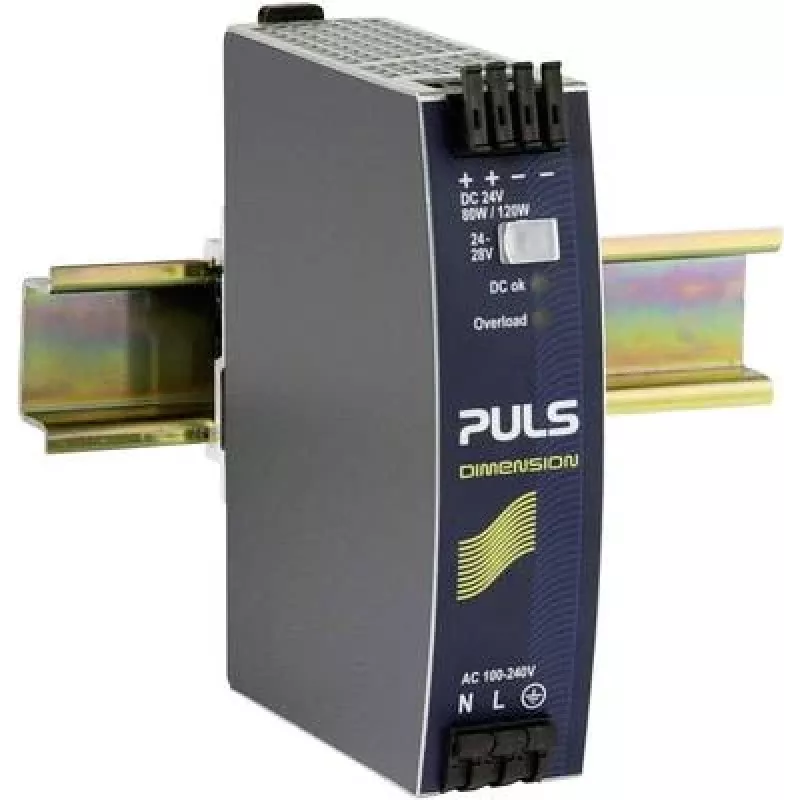

PULS DIMENSION QS3.241 DIN lištový napájací zdroj 24 V/DC 3,4 A 80 W

Industrial control systems often struggle with unstable power, leading to downtime and equipment damage. The PULS DIMENSION QS3.241 DIN rail power supply solves this by delivering a reliable 24 VDC output at 3.4 A, ensuring consistent performance for automation and machine building applications.

Who is it for

This power supply is ideal for control engineers, panel builders, and system integrators who need a compact, efficient, and robust power source for DIN rail mounting in industrial cabinets.

Main features

• Output: 24 VDC, 3.4 A, 80 W
• Wide input range: 100-240 VAC (85-276 VAC continuous) or 88-300 VDC
• High efficiency up to 90.5% at 230 VAC
• DIN rail mounting for easy installation
• Operating temperature from -25°C to +70°C
• Overload, short-circuit, overvoltage, and overtemperature protection

Specifications

• Output voltage: 24 VDC
• Output current: 3.4 A
• Output power: 80 W
• Input voltage AC: 100-240 VAC (85-276 VAC continuous)
• Input voltage DC: 88-300 VDC
• Input frequency: 45-65 Hz
• Efficiency: up to 90.5%
• Operating temperature: -25°C to +70°C
• Mounting: DIN rail
• Protection class: IP20
• Hold-up time: >20 ms at 115 VAC
• Ripple and noise: <50 mVpp
• Output adjustment range: 24-28 VDC

Tips

Ensure proper ventilation around the unit to maintain optimal performance, especially when operating near the upper temperature limit. Use appropriate wire sizes for input and output connections to minimize voltage drop.
