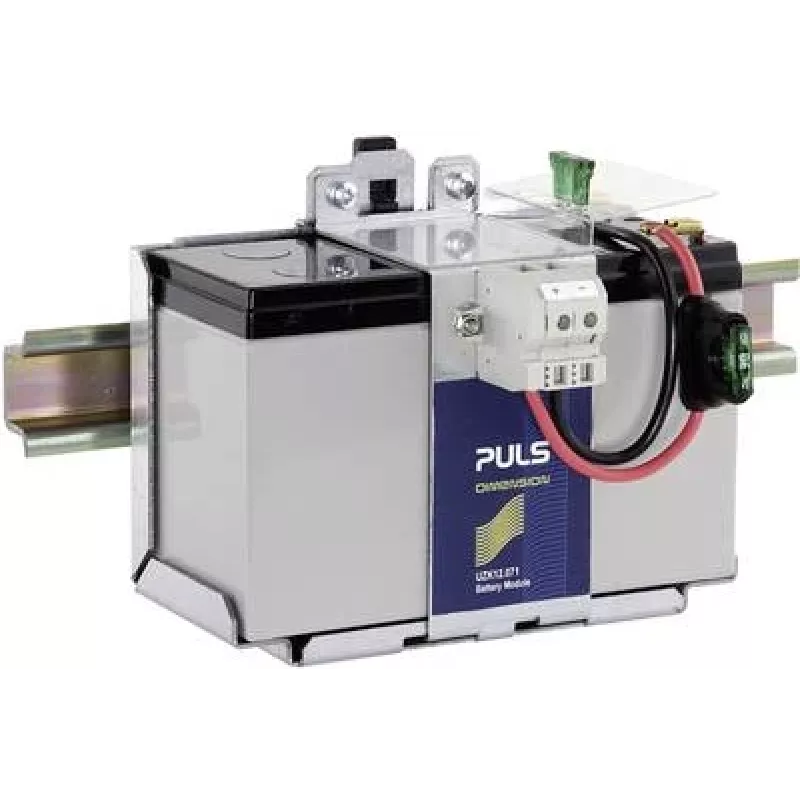

PULS DIMENSION UZK12.071 modul batérie UPS 12 V/7 Ah, doba preklenutia 6 min pri 1 A / 45 s pri 10 A

Industrial control engineers use the PULS DIMENSION UZK12.071 to keep 12 V DC systems alive during brief power interruptions. Mounted on a DIN rail next to a PULS DIMENSION UB-series UPS module, it supplies sealed lead-acid energy for safe shutdowns or ride-through.

Key specifications

• Battery technology: Sealed Lead-Acid (SLA), maintenance-free
• Nominal voltage: 12 V
• Capacity: 7 Ah (C20)
• Backup time: 6 minutes at 1 A load, 45 seconds at 10 A load
• Operating temperature: -15°C to +50°C
• Charging temperature: 0°C to +40°C
• Housing material: Metal
• Mounting: DIN-rail (35 mm)
• Connection: M5 screw terminals
• Protection rating: IP20
• Number of cells: 6
• Float charge voltage: 13.6 – 13.8 V
• Internal resistance: approx. 19 mΩ
• Expected service life: 3-5 years (Eurobat Standard Commercial)

Why choose it

This module integrates directly with PULS DIMENSION UB-series UPS units, providing a compact and reliable backup solution for industrial applications. Its metal housing and DIN-rail mounting suit control cabinets where space is at a premium.

Ideal use cases

• Bridging short power gaps in PLC and automation systems
• Safe shutdown of 12 V DC equipment during outages
• Backup for sensors, controllers, and small actuators

Good to know

The battery is maintenance-free and designed for a service life of 3 to 5 years under normal conditions. Charge only within 0°C to +40°C to avoid damage.
