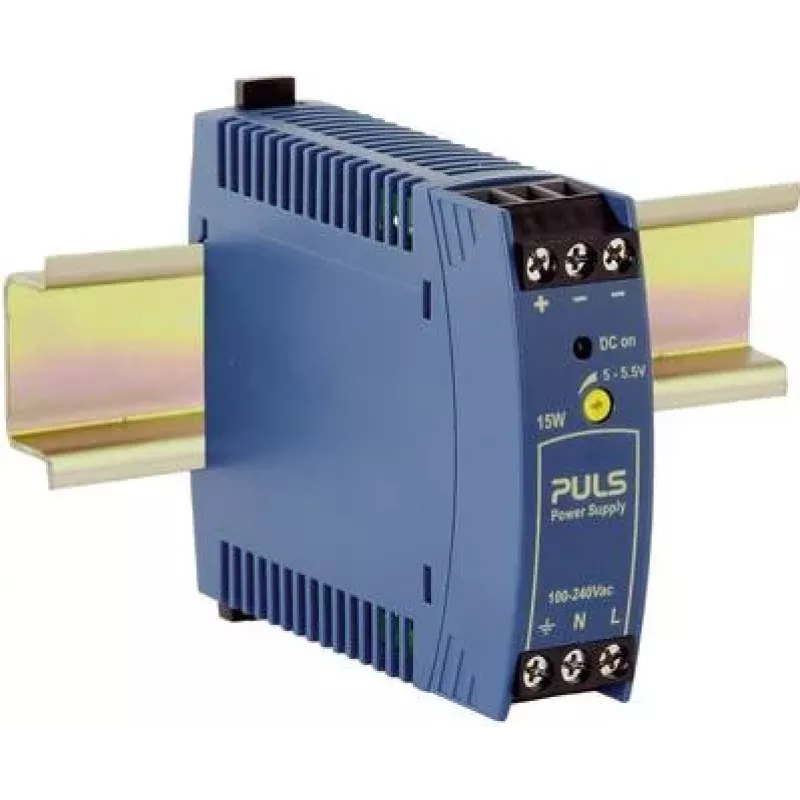

PULS MiniLine ML15.051 napájací zdroj na DIN lištu 5V DC 3A 15W

Automation engineers and panel builders often need a compact, reliable 5V DC source for sensors, controllers, and small actuators in industrial cabinets. The PULS MiniLine ML15.051 mounts on a standard DIN rail and delivers 5V DC at up to 3A (15W) from a universal 100-240V AC input, making it a practical choice for space-constrained applications.

Key specifications

• Output: 5V DC, 3A, 15W
• Input: 100-240V AC or 110-150V DC
• Efficiency: 80.5% at 230V AC
• Mounting: DIN rail TS35
• Operating temperature: -10 to +70°C
• Protection: overload, short circuit, overvoltage, overtemperature
• Adjustable output: 4.5-5.5V DC
• Ripple and noise: < 50 mVpp
• Hold-up time: > 20 ms
• Connection: screw terminals
• MTBF: > 1,000,000 hours
• Housing: plastic

Why choose it

The MiniLine ML15.051 is designed for long-term reliability in industrial environments. Its wide input range and compact plastic housing simplify installation, while built-in protections reduce the risk of downtime.

Ideal use cases

• Powering 5V logic circuits in control panels
• Supplying sensors and small actuators
• Retrofitting existing DIN-rail installations

Good to know

The output voltage can be adjusted from 4.5 to 5.5V DC to compensate for voltage drops in wiring. The unit operates at full power up to 70°C without derating.
