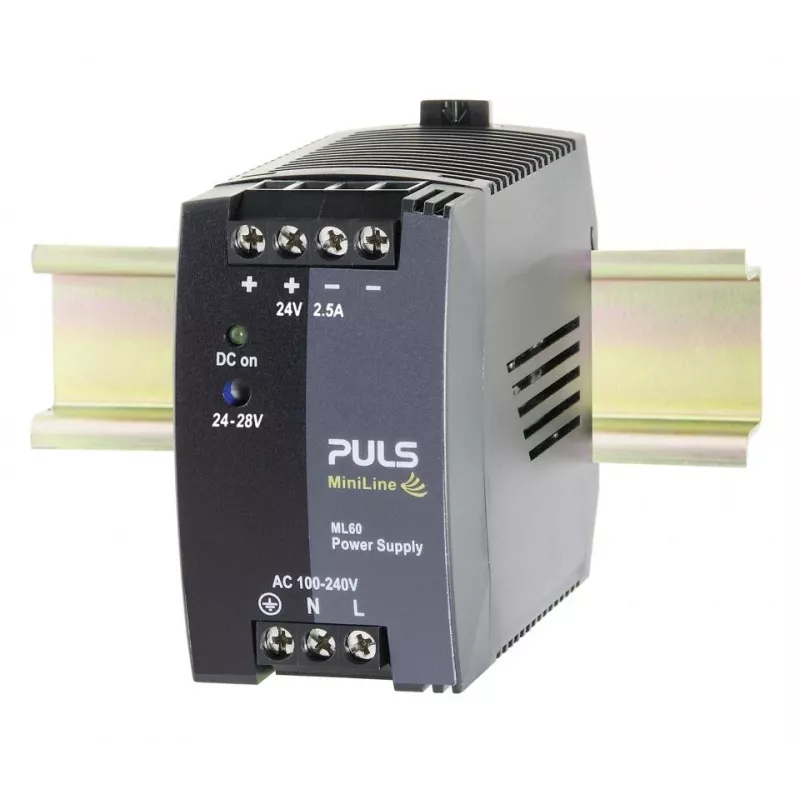

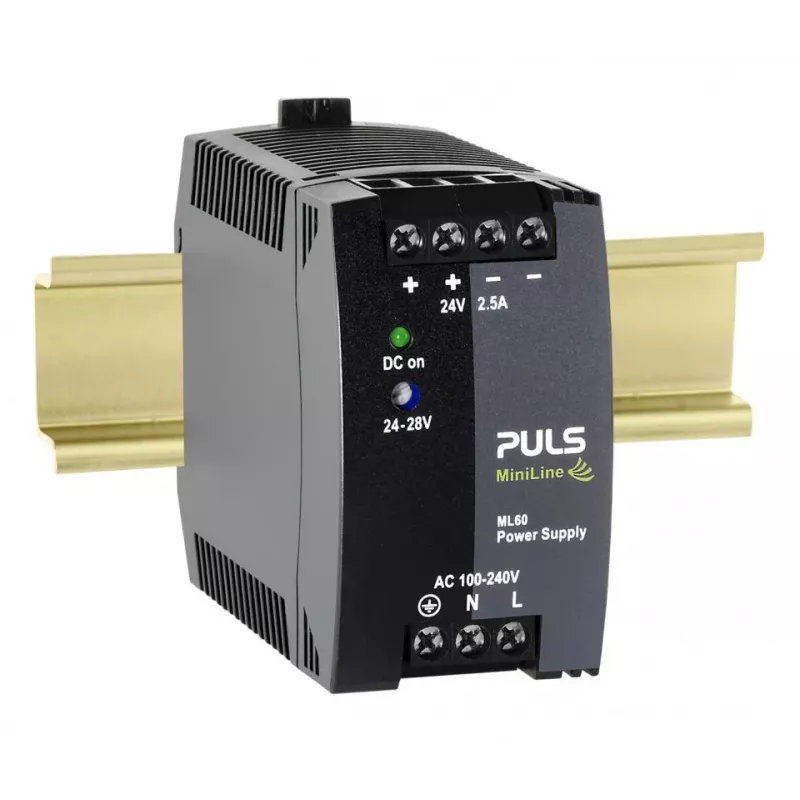

PULS MiniLine ML60.242 DIN-lištový napájací zdroj 24V DC 2,5A 60W

Industrial control systems often face unstable or inadequate power, leading to downtime and equipment failure. The PULS MiniLine ML60.242 DIN rail power supply solves this by providing a reliable 24V DC output from a wide range of AC or DC inputs, ensuring consistent operation of sensors, PLCs, and other automation components.

Who is it for

This power supply is intended for control panel builders, system integrators, and maintenance engineers who need a compact, efficient, and durable power source for DIN rail mounted equipment in industrial environments.

Main features

• Output: 24 V DC, 2.5 A, 60 W
• Input: 100-240 V AC (single phase) or 110-150 V DC
• High efficiency of 90.5% at 230 V AC
• Mounts on DIN rail TS35/7.5 or TS35/15
• Operating temperature range: -10 °C to +70 °C
• Overload, short circuit, and overvoltage protection
• Output voltage adjustable from 24 to 28 V DC
• Screw terminal connections

Specifications

• Output voltage: 24 V DC
• Output current: 2.5 A
• Output power: 60 W
• Input voltage (AC): 100 - 240 V AC
• Input voltage (DC): 110 - 150 V DC
• Efficiency: 90.5%
• Ripple & noise: <50 mVpp
• MTBF: >700,000 hours

Tips

Ensure adequate ventilation around the unit to maintain performance within the specified temperature range. Use appropriate wire sizes for the screw terminals to handle the rated current.
