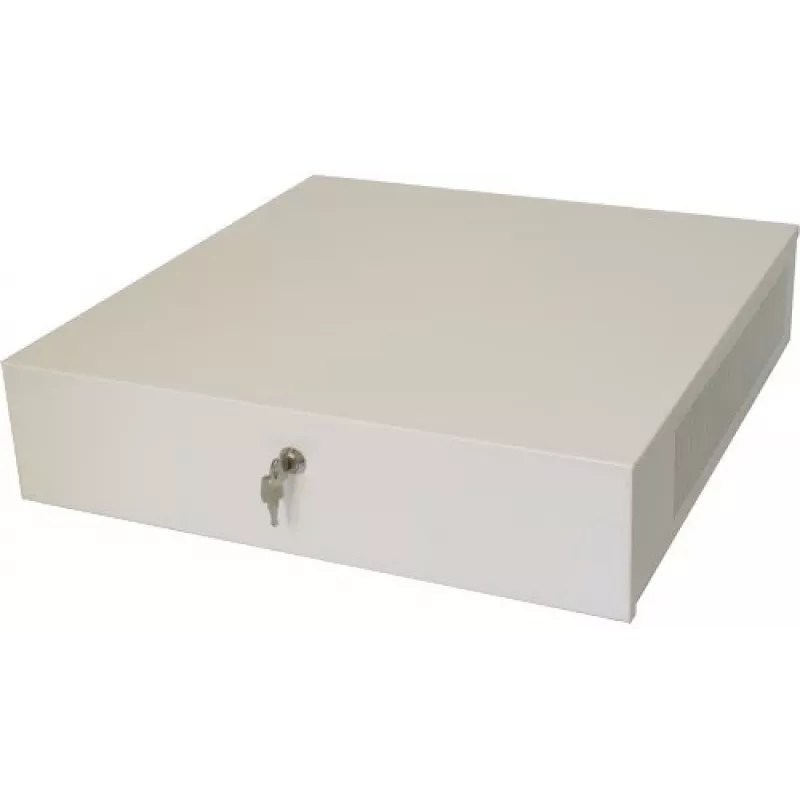

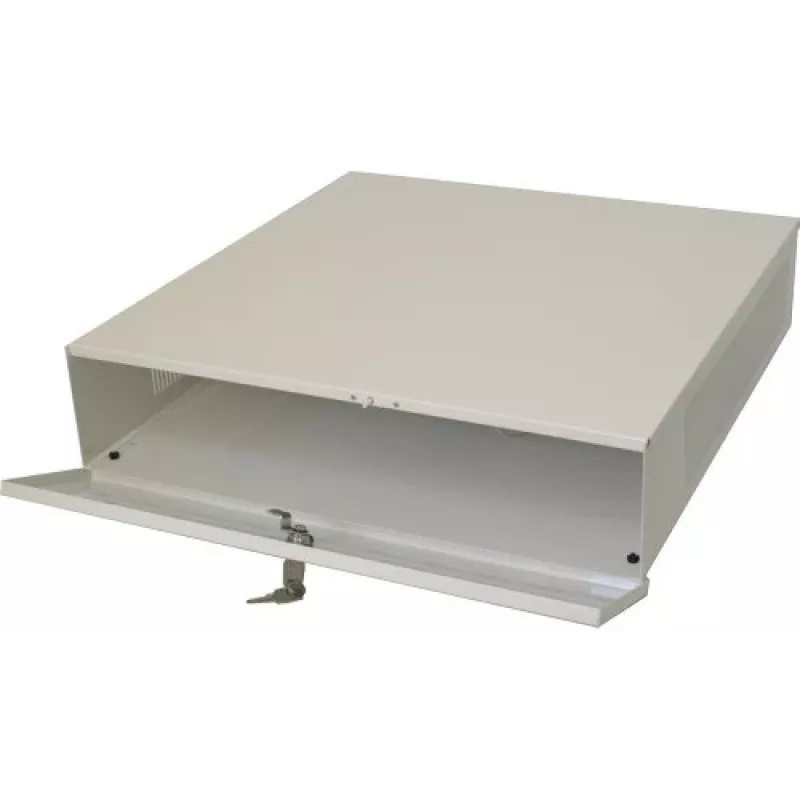

Pulsar AWO471 oceľové puzdro DVR/NVR so zámkom, čierne

Keeping surveillance recorders and their backup batteries secure, organized, and properly ventilated is a challenge in many installations. The Pulsar AWO471 enclosure solves this by providing a robust, lockable housing that accommodates a universal DVR/NVR along with a power supply and backup battery, all in one compact wall-mounted unit.

Who is it for

This enclosure is ideal for installers and system integrators who need a reliable, tamper-resistant housing for video surveillance recorders in indoor commercial or residential settings. It suits anyone requiring a neat, secure installation with room for essential power components.

Main features

• Sturdy 1 mm steel sheet construction with black powder coating (RAL 9005) for durability and a professional look.
• Cylinder lock with two keys and tamper protection via NC microswitch for enhanced security.
• Passive ventilation openings and optional 120x120 mm fan support to maintain optimal operating temperatures.
• Multiple cable entry points on top, bottom, and rear for flexible wiring.
• Universal internal layout fits various DVR/NVR models, a power supply (e.g., 12V/7A or 12V/10A), and a backup battery up to 17 Ah (or two 7 Ah batteries).
• Wall-mounted design with IP20 rating for indoor use.

Specifications

• Brand: Pulsar
• Model: AWO471
• MPN: AWO471
• EAN: 5906881447055
• Enclosure type: DVR/NVR system enclosure
• Mounting: Wall-mounted
• Material: Steel sheet, 1 mm thick
• Colour: Black (RAL 9005)
• Finish: Powder coated
• Lock: Cylinder lock with 2 keys
• Tamper protection: NC microswitch
• Ventilation: Passive openings, optional 120x120 mm fan
• Cable entries: Top, bottom, rear
• Battery capacity: 1x 17 Ah or 2x 7 Ah
• Protection class: IP20
• Application: Indoor

Tips

For optimal cooling in high-temperature environments, consider installing a 120x120 mm fan in the designated mounting location. Ensure the enclosure is mounted on a flat, stable wall surface and that all cable entries are properly sealed to maintain the IP20 rating and prevent dust ingress.
