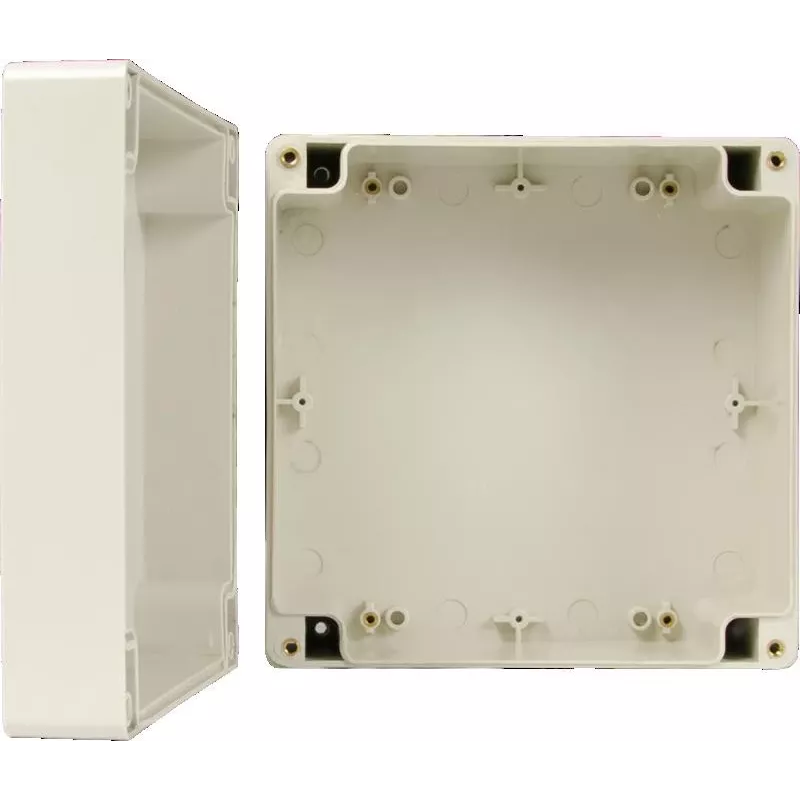

PULSAR AWP161609 univerzálne ABS puzdro, IP65, IK07, 160x160x90 mm, svetlosivá (RAL 7035)

The PULSAR AWP161609 is a robust universal enclosure made from high-quality ABS plastic, designed for a wide range of electrical and industrial applications. With an IP65 protection rating and IK07 impact resistance, it offers reliable protection against dust, water jets, and mechanical impacts. The light grey (RAL 7035) color and solid lid with four plastic screws ensure a clean, secure installation.

Advantages

This enclosure provides excellent durability and weather resistance, making it suitable for both indoor and outdoor use. The UV-stabilized ABS material ensures long-term performance even in direct sunlight. The integrated mounting bosses allow for easy installation of PCBs or DIN rails, while the polyurethane foam gasket guarantees a tight seal.

Suitable for

• Electrical installations and junction boxes
• Industrial automation and control systems
• Security systems and telecommunications
• Outdoor equipment housing

Key specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Protection class: IP65
• Impact resistance: IK07
• External dimensions (L x W x H): 160 x 160 x 90 mm
• Color: Light Grey (RAL 7035)
• Lid type: Solid / Opaque
• Lid fastening: 4x plastic screws
• Gasket material: Polyurethane (PU) foam
• Mounting type: Surface mount, wall mount
• Operating temperature: -25°C to +70°C
• Flammability rating: UL94-V0
• Internal mounting: Mounting bosses for PCB/DIN rail
• UV resistance: Yes
• Standards compliance: RoHS, CE

Recommendations

For optimal installation, use appropriate cable glands and mounting brackets. Ensure the gasket is properly seated before closing the lid to maintain IP65 protection. This enclosure is ideal for customizing with internal components such as terminal blocks, power supplies, or control modules.
