PULSAR AWZ594 modul poistky v puzdre, 8 výstupov, 1A na výstup, 8A celkom, 10-30V DC

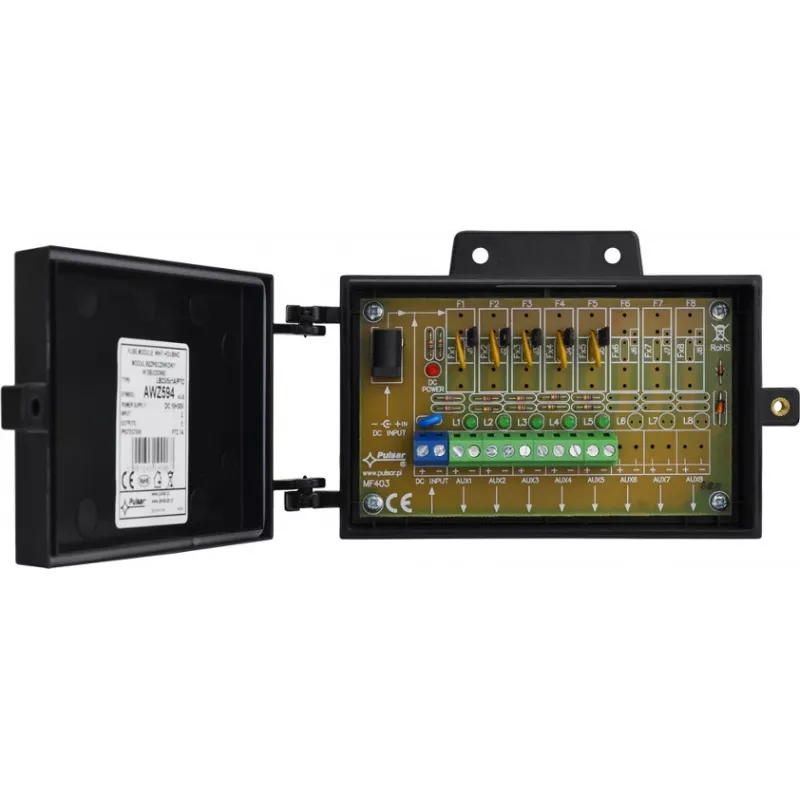

The PULSAR AWZ594 is a professional fuse module housed in a durable ABS plastic enclosure, designed for reliable overcurrent and short-circuit protection in CCTV, access control, alarm, and IT systems. With 8 glass fuse outputs (5x20mm) each rated at 1A and a total maximum current of 8A, this module accepts an input voltage range of 10V to 30V DC and provides unregulated output equal to the input voltage. Surface mountable with screw terminals for secure connections, it operates in temperatures from -10°C to +40°C and has an IP20 protection rating.

Advantages

Compact and robust design ensures easy installation and long-lasting performance. Individual fuse outputs allow precise protection for each connected device, minimizing downtime. The transparent enclosure cover provides quick visual inspection of fuse status.

Suitable for

• CCTV systems
• Access control systems
• Alarm systems
• IT and network equipment

Key specifications

• Number of fuse outputs: 8
• Max current per output: 1A
• Total max current: 8A
• Fuse type: Glass, 5x20mm
• Input voltage: 10V - 30V DC
• Output voltage: Unregulated (equal to input)
• Protection: Overcurrent, short-circuit
• Housing material: ABS plastic
• Mounting: Surface mount
• Connection terminals: Screw terminals
• Operating temperature: -10°C to +40°C
• Enclosure protection rating: IP20
• Number of fuses supplied: 8
• Input connection: 2-pin screw terminal
• Output connection: 8x 2-pin screw terminals

Recommendations

For optimal performance, use only 5x20mm glass fuses with appropriate current rating. Ensure the total load does not exceed 8A. Suitable for indoor use only.
