Pulsar EXT-POE2H PoE extender v hermetickom puzdre pre 2 IP kamery

Deliver up to 60W of total PoE power across two outputs from a single IEEE 802.3af/at input—the Pulsar EXT-POE2H is built to drive demanding IP cameras in the harshest outdoor conditions. Its IP66 hermetic enclosure and 4kV surge protection ensure uninterrupted surveillance connectivity, even when mounted directly on a wall or pole without an extra junction box.

Overview

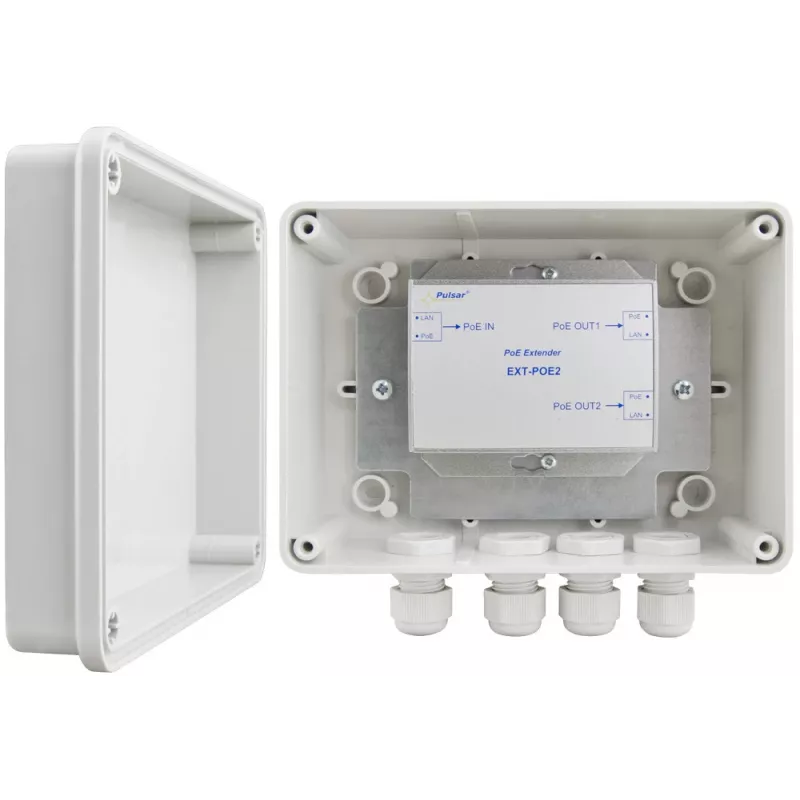

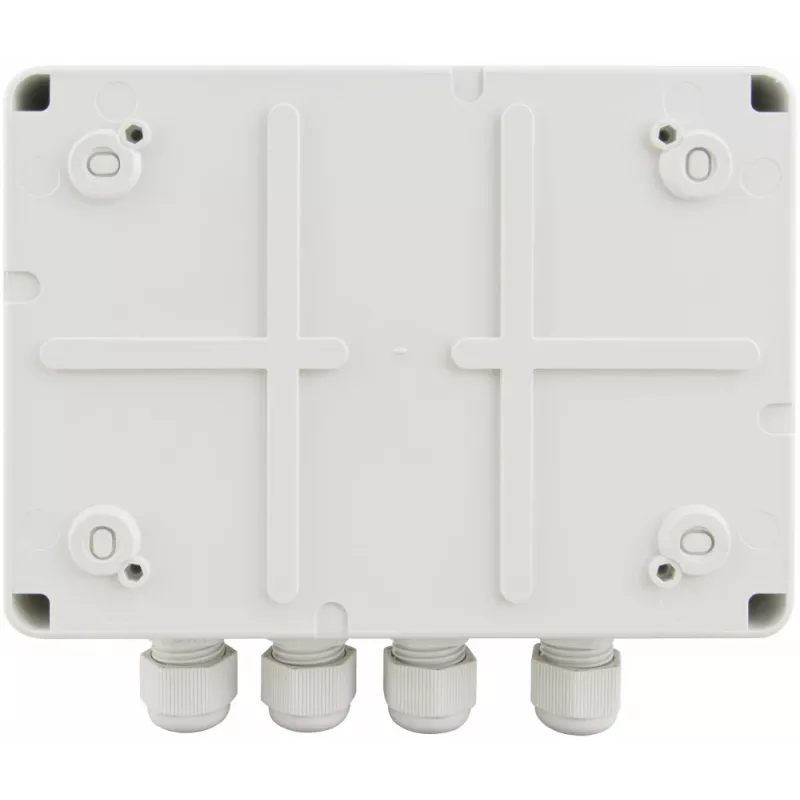

The Pulsar EXT-POE2H is a Power over Ethernet extender engineered specifically for IP camera installations. It accepts one IEEE 802.3af/at PoE input and provides two independent PoE outputs, each capable of delivering up to 30W—60W total if the input source allows. This enables simultaneous operation of two demanding cameras while extending data and power over standard Cat5e/6 cabling. The hermetic ABS housing with IP66 protection allows direct outdoor mounting without an additional junction box, making it ideal for surveillance deployments in challenging weather.

What stands out

• Dual 30W PoE outputs (60W total) for high-power cameras
• IP66 hermetic enclosure for harsh outdoor conditions
• Extends network distance up to 100m per segment
• 4kV surge protection for data lines
• LED indicators for power and link/activity status
• Wall or pole mountable with included accessories

Technical details

• PoE standard: IEEE 802.3af/at (input & output)
• Ports: 1× RJ45 input, 2× RJ45 output
• Data rate: 10/100 Mbps
• Extension distance: up to 100 m per segment
• Input voltage: 44–57V DC
• Output power: 30W per port, 60W total (if input source allows)
• Enclosure rating: IP66
• Operating temperature: -30°C to +60°C
• Surge protection: 4kV for data lines
• LED indicators: Power, Link/Activity per port
• Transmission medium: UTP Cat. 5e/6 or higher
• Power consumption: < 2W
• Mounting: Wall or pole (accessories included)
• Connectors: Sealed RJ45
• Housing material: ABS
• Certifications: CE

Our verdict

The Pulsar EXT-POE2H is a rugged, high-capacity PoE extender that solves the challenge of powering multiple IP cameras over long distances in outdoor environments. Its hermetic design and surge protection make it a reliable choice for professional surveillance systems.
