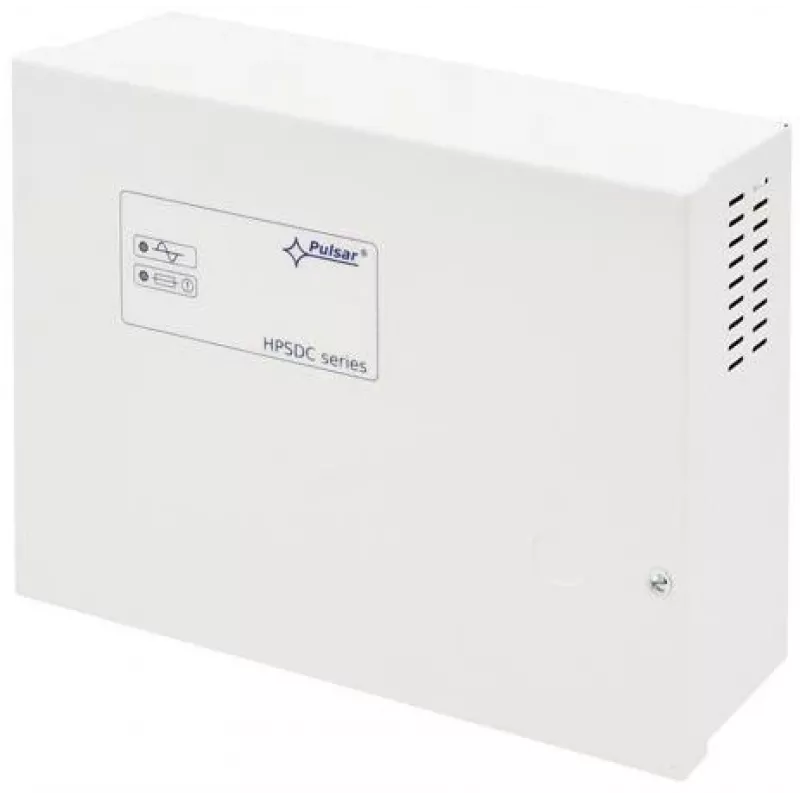

Pulsar HPSDC-12V4X1A 12V 4A 4x1A spínaný napájací zdroj pre HD kamery

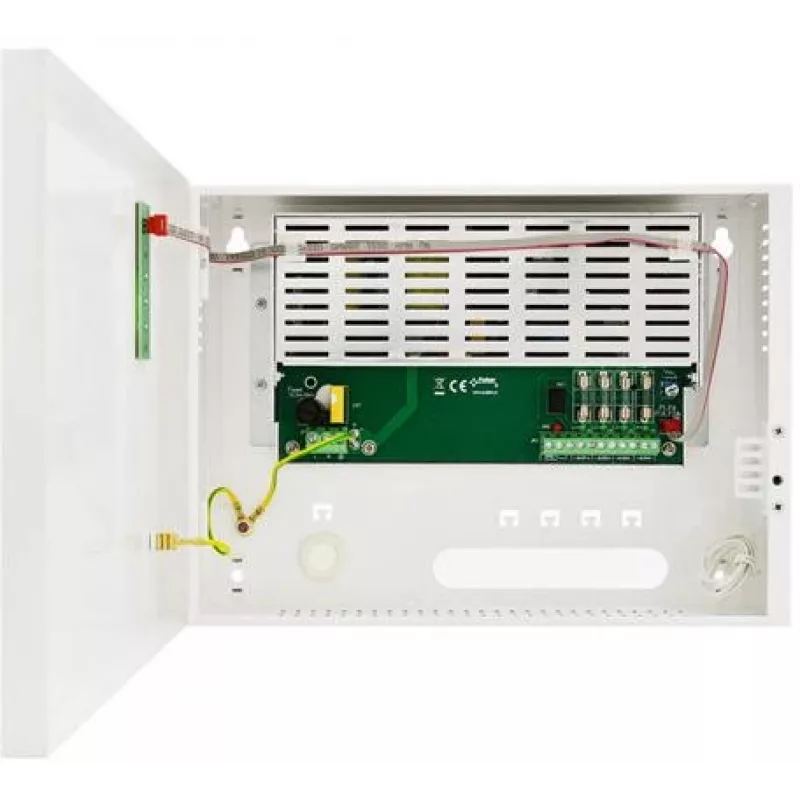

The Pulsar HPSDC-12V4X1A is a stabilized switching power supply designed for powering up to 4 HD cameras. It delivers a total output current of 4A, with each of the 4 outputs providing up to 1A. The unit features screw terminal connections for both input and output, ensuring secure and reliable installation. With protections against short-circuit, overload, overvoltage, and thermal issues, this power supply guarantees safe operation for your CCTV system.

Advantages

Stabilized output ensures consistent voltage for sensitive HD cameras. Compact design with surface or DIN rail mounting options. Passive cooling for silent operation and long lifespan. High efficiency (>85%) reduces energy consumption.

Suitable for

• CCTV systems with up to 4 HD cameras
• Security installations requiring reliable 12V DC power
• Indoor use in controlled environments

Key specifications

• Input voltage: 176-264V AC, 50/60 Hz
• Output voltage: 12V DC
• Total output current: 4A
• Number of outputs: 4 (each 1A max)
• Protections: SCP, OLP, OVP, TSP
• Efficiency: >85%
• Operating temperature: -10°C to +40°C
• Housing material: ABS plastic
• Mounting: Surface mount / DIN rail
• LED indicators: Power and output status
• Ripple and noise: <100mVp-p
• Compliance: CE, RoHS

Recommendations

For optimal performance, use with Pulsar compatible cameras and accessories. Ensure proper ventilation and avoid exposure to moisture.
