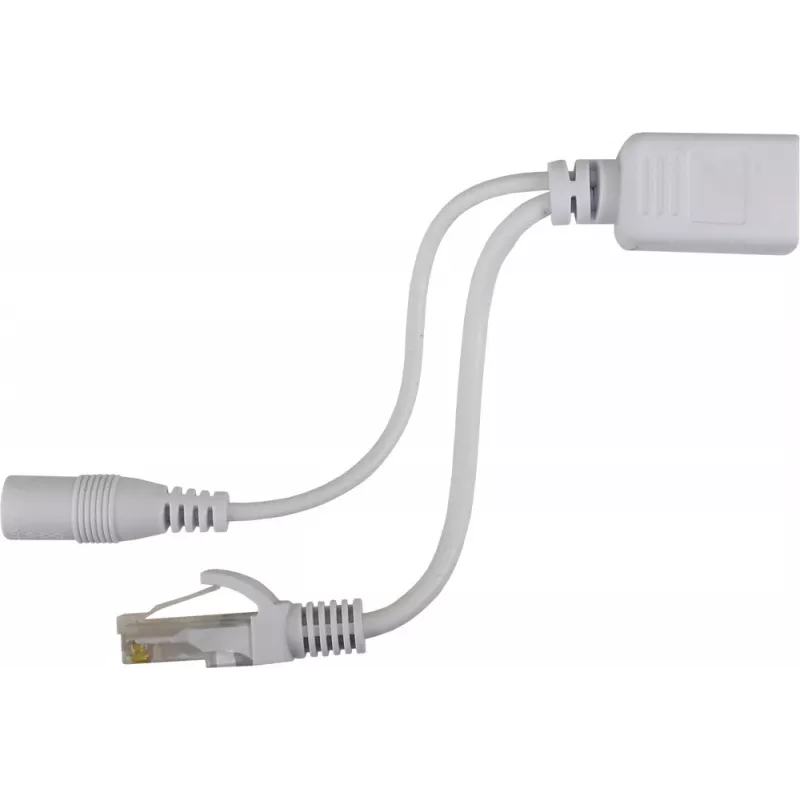

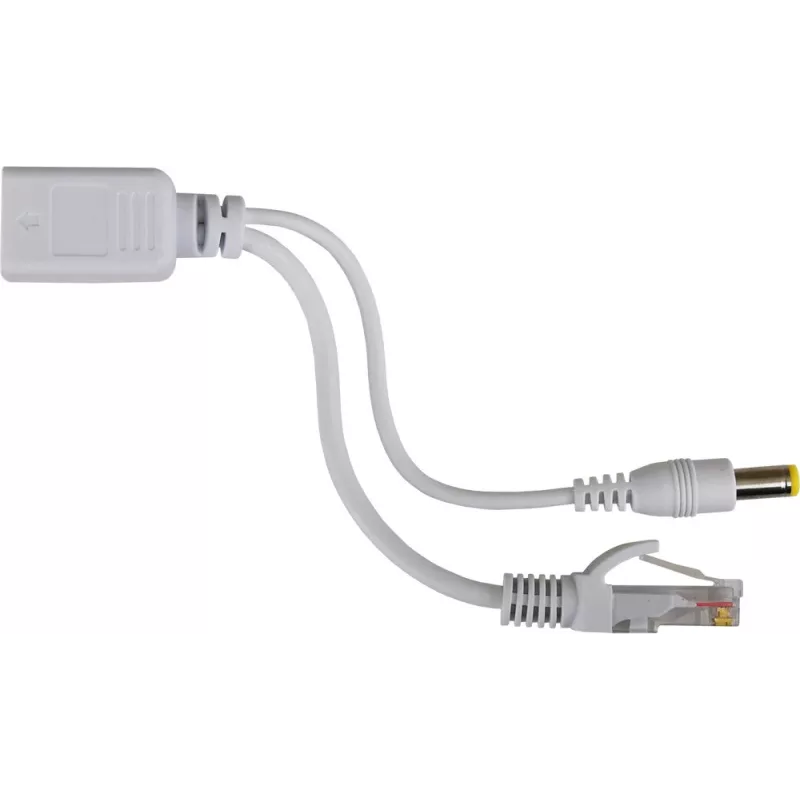

Pulsar P-POE1 pasívna PoE adaptérová sada s RJ45 konektormi

Many IP cameras and access points lack built-in PoE support, forcing installers to run separate power lines or place devices near outlets. The Pulsar P-POE1 solves this by converting a standard Ethernet cable into a power and data link, enabling flexible placement up to 40 meters from the power source.

Who is it for

This set is ideal for CCTV installers, network technicians, and DIY users who need to power non-PoE devices such as IP cameras, wireless access points, or VoIP phones over existing Cat. 5e cabling without upgrading the network infrastructure.

Main features

• Passive PoE injector and splitter pair for 10/100 Mbps networks
• Transmits DC power and data over a single UTP cable (pins 4/5 and 7/8)
• Supports input voltage up to 48V DC and output current up to 1A
• Standard RJ45 and 2.1/5.5mm DC connectors for broad compatibility
• Compact ABS plastic housings in black, plug-and-play installation

Specifications

• PoE type: Passive (no IEEE 802.3af/at negotiation)
• Data rate: 10/100 Mbps
• Ethernet connectors: RJ45 male/female
• DC connectors: 2.1/5.5mm jack male/female
• Max input voltage (injector): 48V DC
• Max output current (splitter): 1A
• Power pin assignment: 4/5 (+), 7/8 (-)
• Ethernet standards: IEEE 802.3, IEEE 802.3u
• Max cable length: 40 m (Cat. 5e UTP)
• Operating temperature: -10°C to +40°C
• Housing material: ABS plastic
• Color: Black

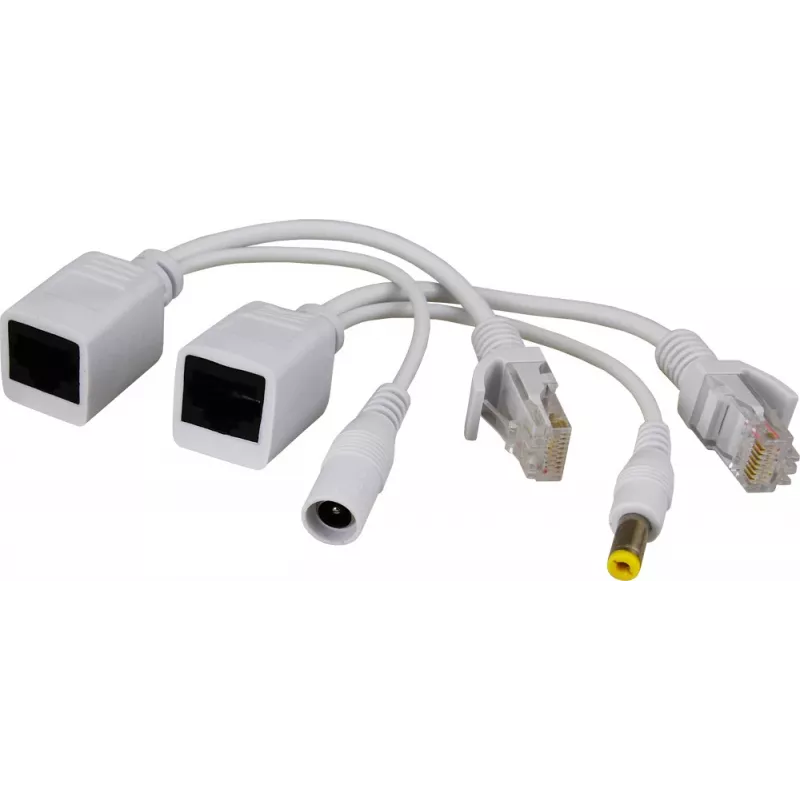

• Set includes: 1x PoE injector, 1x PoE splitter

Tips

Ensure the power supply voltage does not exceed 48V DC and matches the requirements of your powered device. For best performance, use solid copper Cat. 5e or higher cable and avoid running parallel to high-voltage lines.
