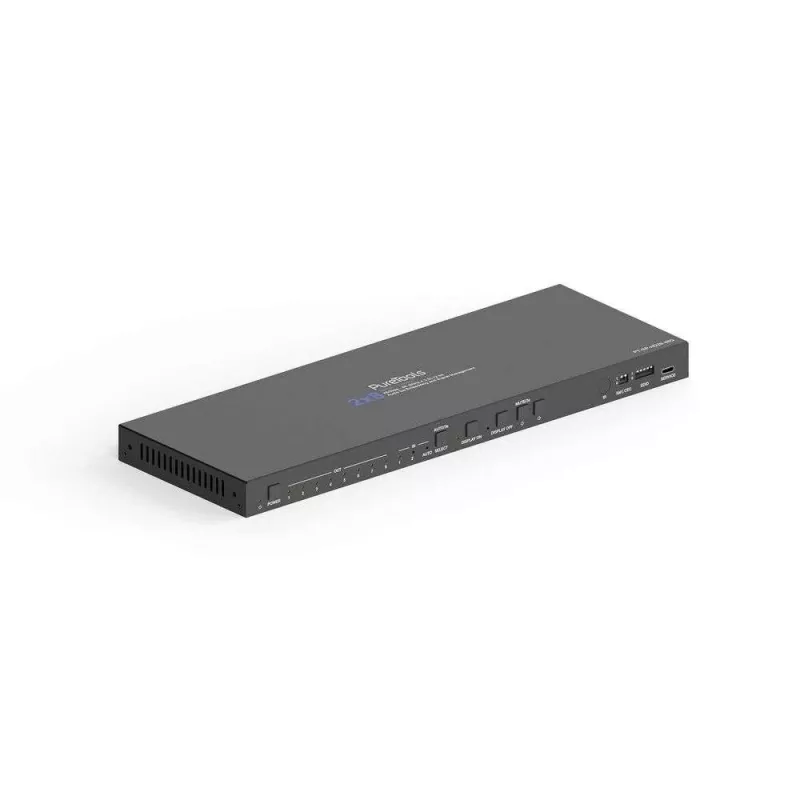

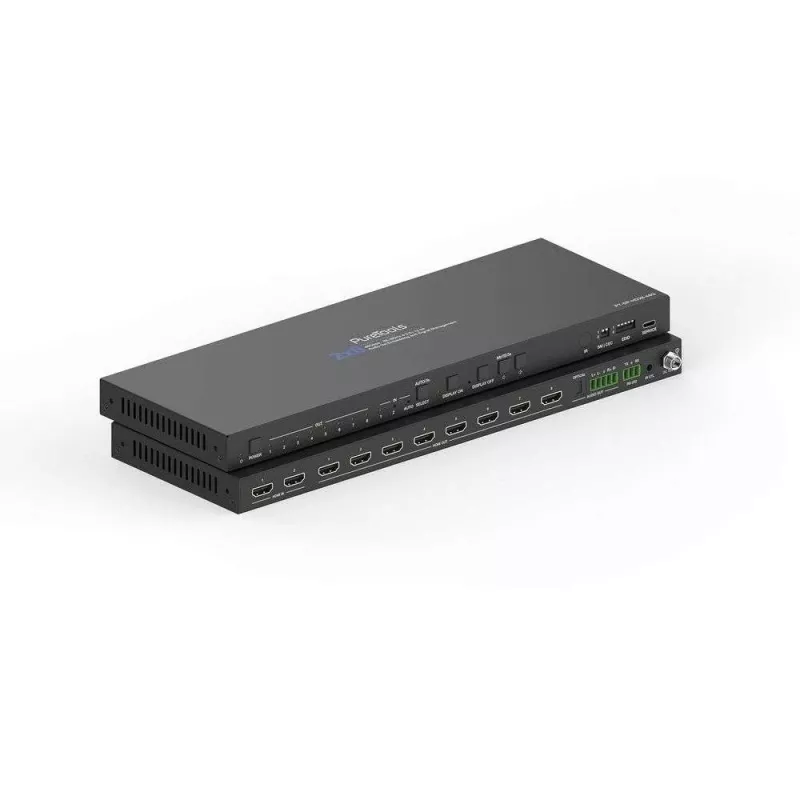

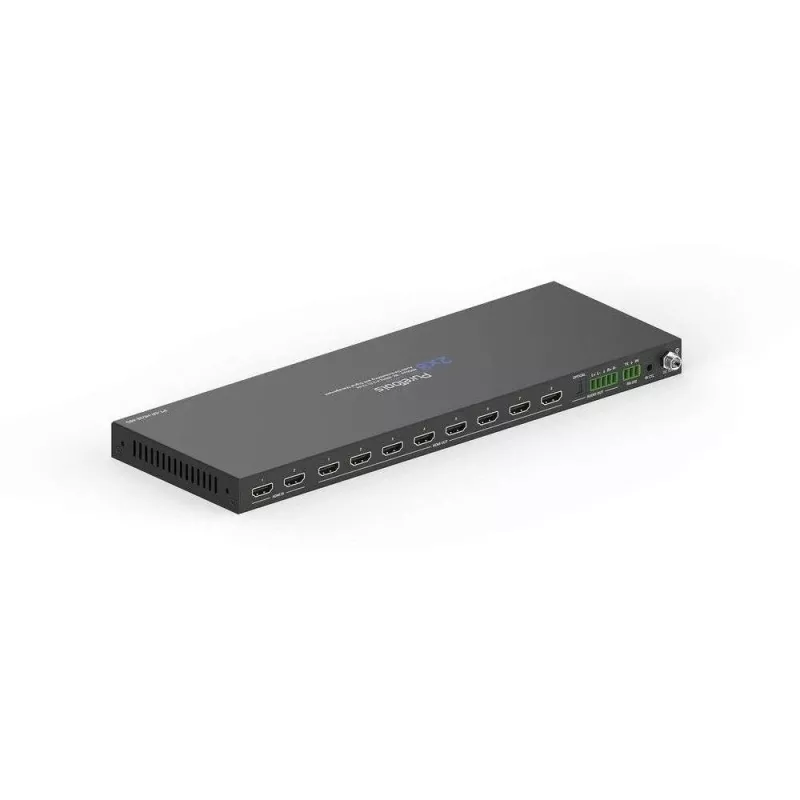

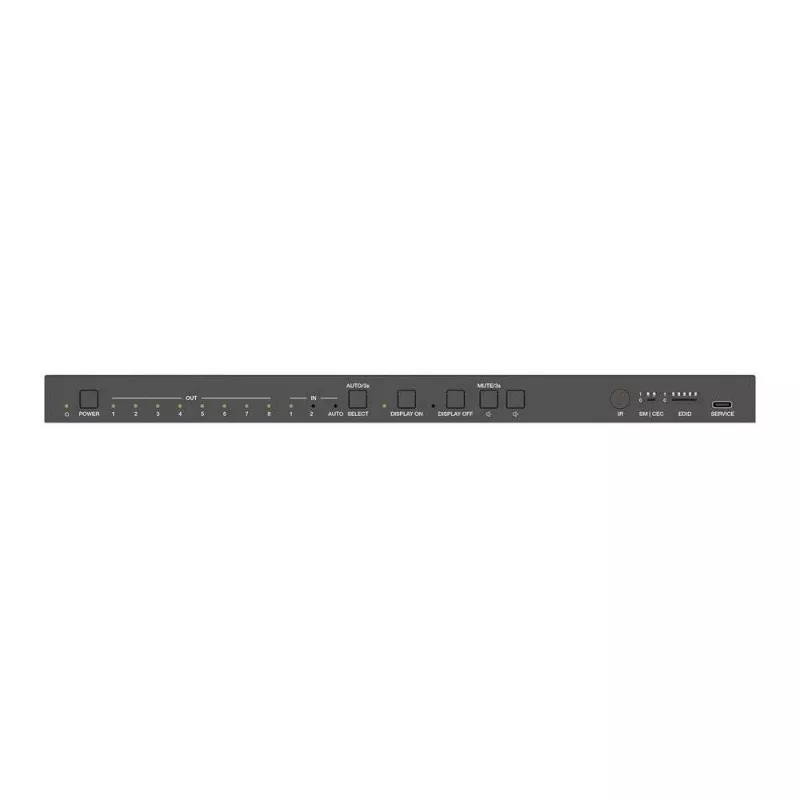

PureLink 2x8 HDMI 2.1 splitter - 48Gbps so scalerom a audio-de-embedding

The PureLink PT-SP-HD28-48G is a professional-grade 2x8 HDMI 2.1 splitter that distributes one HDMI input to eight outputs with full 48Gbps bandwidth. It supports 8K@60Hz (4:4:4) and 4K@120Hz (4:4:4) resolutions, HDCP 2.3, and all major HDR formats including Dolby Vision. Built-in video scaler allows downscaling from 8K to 4K or 4K to 1080p, while audio de-embedding extracts audio via optical S/PDIF or 3.5mm stereo jack. The metal housing ensures durability, and EDID management provides compatibility with various displays. Firmware updates are supported via USB.

Advantages

This splitter delivers pristine signal integrity for demanding AV installations. With HDMI 2.1 features like VRR, ALLM, QFT, and QMS, it is ideal for gaming and high-frame-rate content. The scaler ensures compatibility with older displays, and audio de-embedding simplifies integration with sound systems.

Suitable for

• Home theater setups requiring multiple displays
• Digital signage and commercial AV distribution
• Gaming enthusiasts needing low latency and high refresh rates
• Conference rooms with multiple screens

Key specifications

• HDMI Standard: HDMI 2.1
• Inputs: 1x HDMI
• Outputs: 8x HDMI
• Max Bandwidth: 48 Gbps
• Max Resolution: 8K@60Hz (4:4:4), 4K@120Hz (4:4:4)
• HDCP: 2.3
• HDR Support: HDR, HDR10+, HLG, Dolby Vision
• Audio De-Embedding: Optical S/PDIF, 3.5mm Stereo
• Video Scaler: 8K to 4K, 4K to 1080p
• HDMI 2.1 Features: VRR, ALLM, QFT, QMS
• EDID Management: Yes
• Power Supply: DC 12V
• Housing Material: Metal
• Firmware Update: Via USB
• Audio Formats: LPCM, Dolby Digital, DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos, DTS:X

Recommendations

For optimal performance, use certified Ultra High Speed HDMI cables. Ensure adequate ventilation for the metal housing. The splitter supports EDID emulation for reliable handshaking with all connected displays.
