PureLink 4x1 HDMI 2.1 prepínač - 48Gbps - 8K 60Hz 4:2:0 12-bit audio de-embedding a KVM prepínač - 4-portový

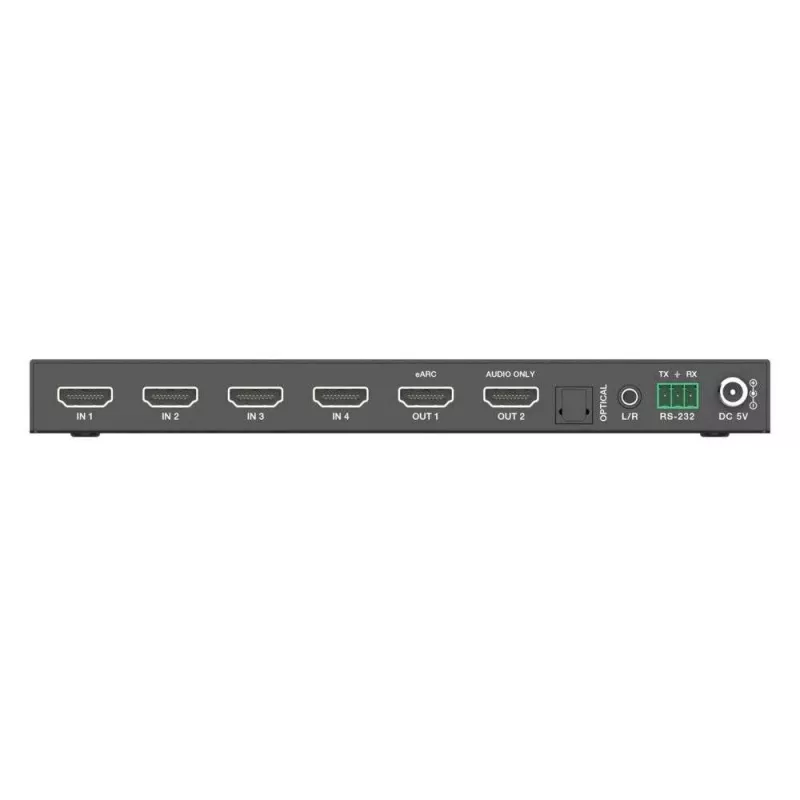

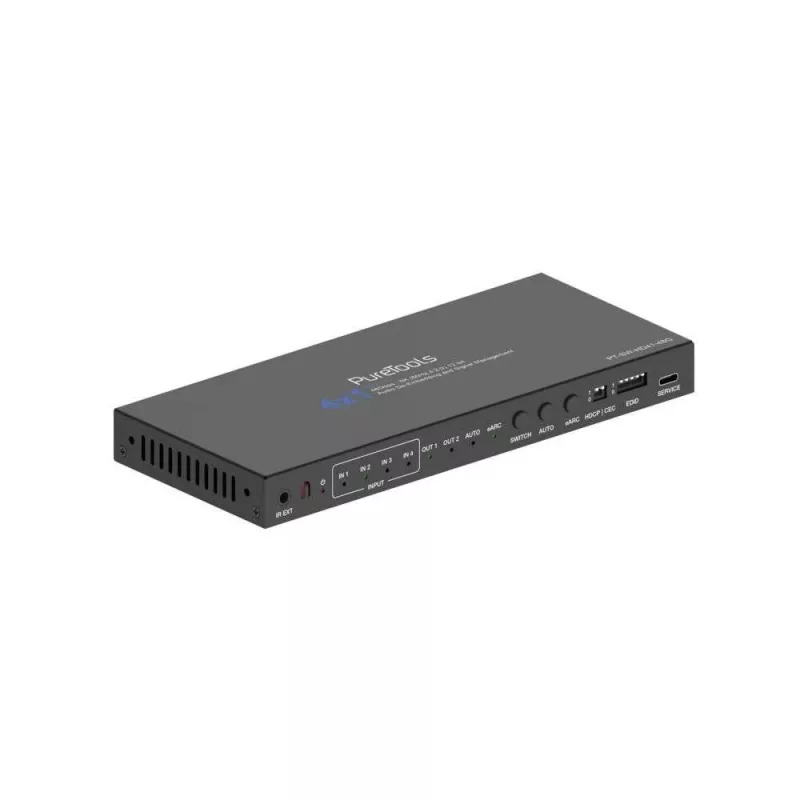

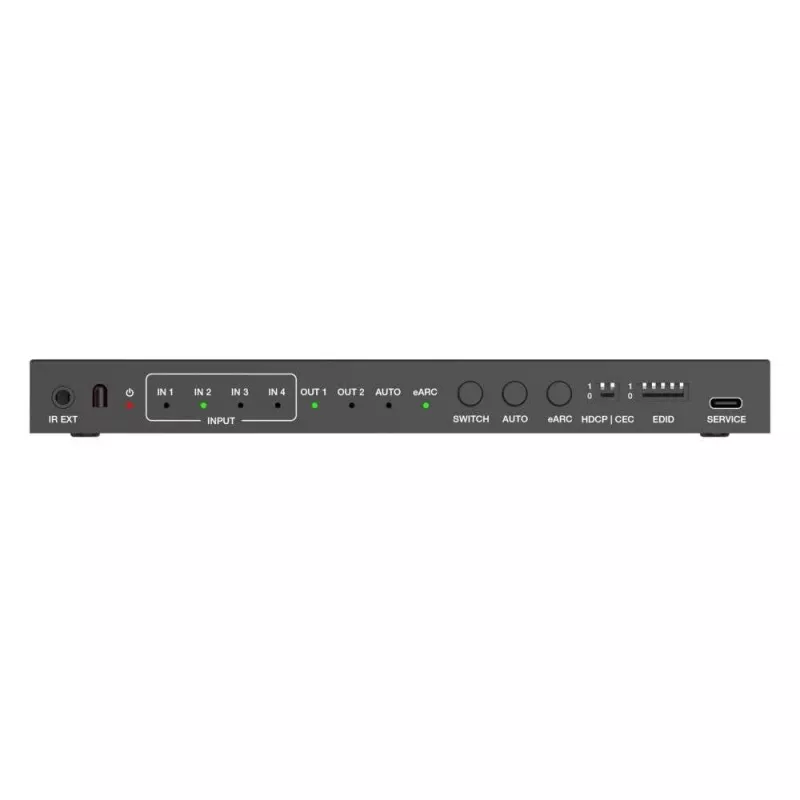

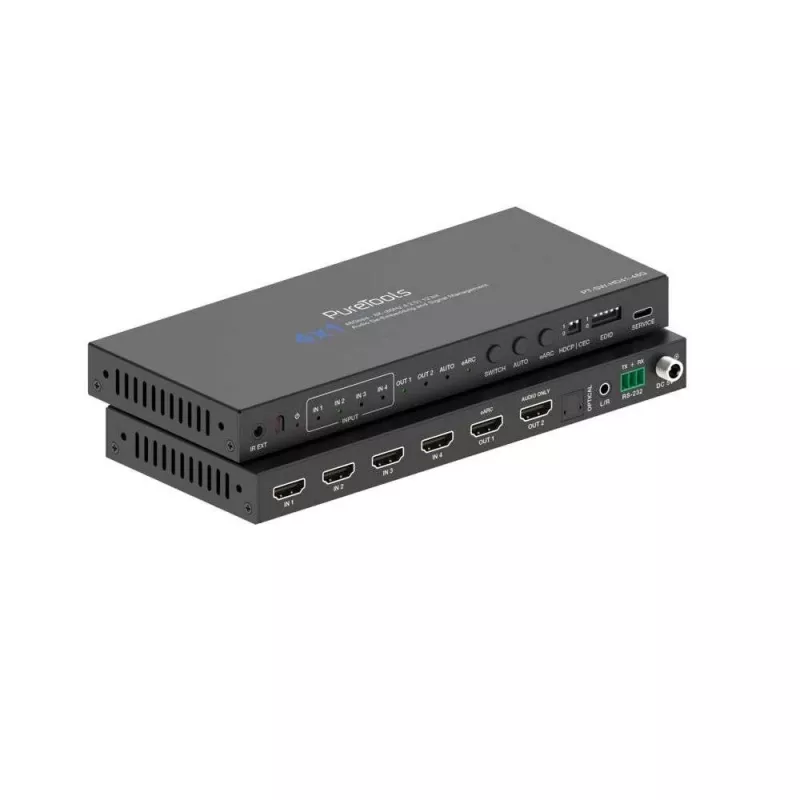

The PureLink PT-SW-HD41-48G is a high-performance 4x1 HDMI 2.1 switch that supports up to 48Gbps bandwidth, enabling 8K@60Hz (4:2:0 12-bit) and 4K@120Hz video. It features audio de-embedding via 3.5mm stereo jack and optical S/PDIF, and includes KVM functionality with 4 USB-B host ports and 3 USB-A peripheral ports. Ideal for professional AV setups, gaming, and multi-source environments.

Advantages

Supports the latest HDMI 2.1 features including VRR, ALLM, QFT, and QMS for a seamless gaming experience. Advanced EDID management ensures compatibility with various displays. The switch allows you to connect up to 4 HDMI sources and switch between them easily using front panel buttons, IR remote, or RS-232 control.

Suitable for

• Home theater systems with multiple 8K/4K sources
• Professional AV installations requiring audio extraction
• Gaming setups needing low latency and high refresh rates
• KVM applications controlling multiple computers

Key specifications

• HDMI Version: 2.1
• Max Bandwidth: 48 Gbps
• Video Inputs: 4 x HDMI Type A Female
• Video Outputs: 1 x HDMI Type A Female
• Max Resolution: 8K@60Hz (4:2:0 12-bit)
• HDR Support: HDR10, HDR10+, HLG, Dolby Vision
• HDCP: 2.3
• Audio De-embedding: 3.5mm Stereo, Optical S/PDIF
• KVM: Yes (4 USB-B host, 3 USB-A peripheral)
• Control: Front Panel, IR Remote, RS-232
• Power: DC 12V/1A

Recommendations

For optimal performance, use certified Ultra High Speed HDMI cables. The switch supports advanced gaming features; ensure your source and display are compatible. The external power adapter is included.
