PureLink PT-PSW-52KVM 5x2 KVM prepínač 4K 60Hz 4:4:4 USB-C HDMI

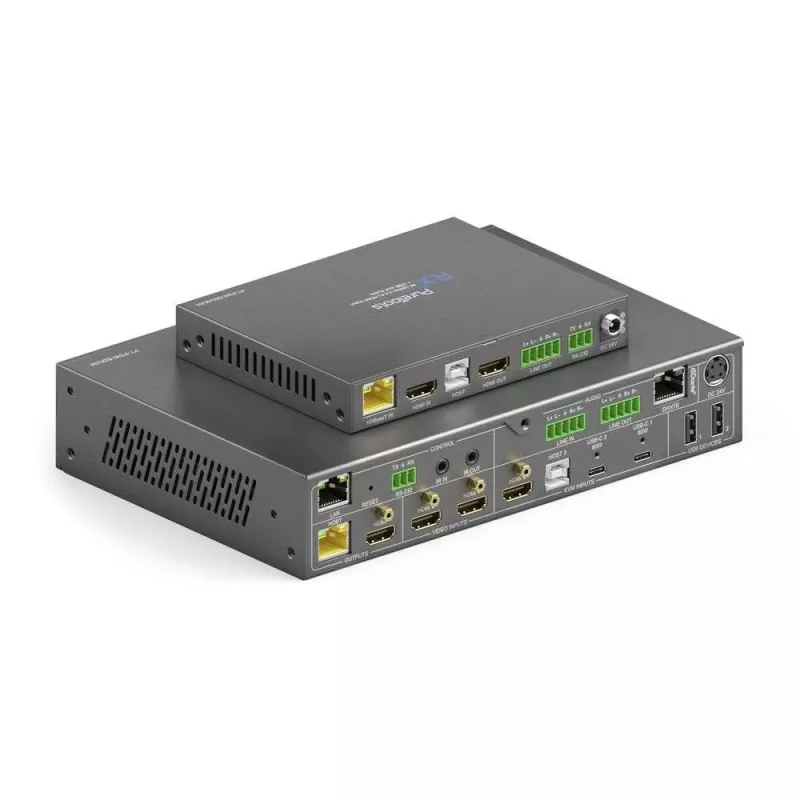

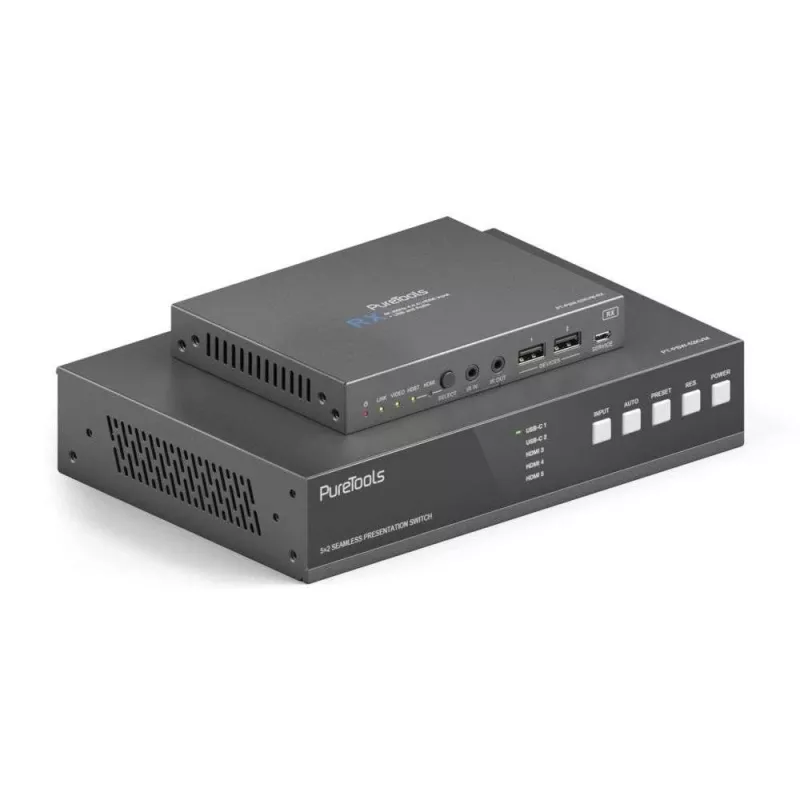

The PureLink PT-PSW-52KVM is a professional 5x2 KVM switcher supporting 4K UHD resolution at 60Hz with 4:4:4 chroma subsampling. It allows seamless switching between up to five computers and two displays, ideal for multi-workstation environments. Featuring three HDMI and two USB-C (DisplayPort Alt Mode) inputs, it provides flexible connectivity for modern devices. The integrated USB 3.0 hub enables sharing of peripherals, while analog audio output and RS-232 control enhance integration.

Advantages

Experience ultra-high-definition video with true 4K 60Hz 4:4:4, ensuring crisp and detailed visuals. The KVM functionality allows you to control multiple computers with a single keyboard, mouse, and monitor setup, boosting productivity. With EDID management, the switcher ensures optimal display compatibility. The metal enclosure provides durability and reliable performance in demanding environments.

Suitable for

• Professional video editing and production studios
• Control rooms and command centers
• IT administrators managing multiple servers
• Financial trading desks requiring multi-computer access

Key specifications

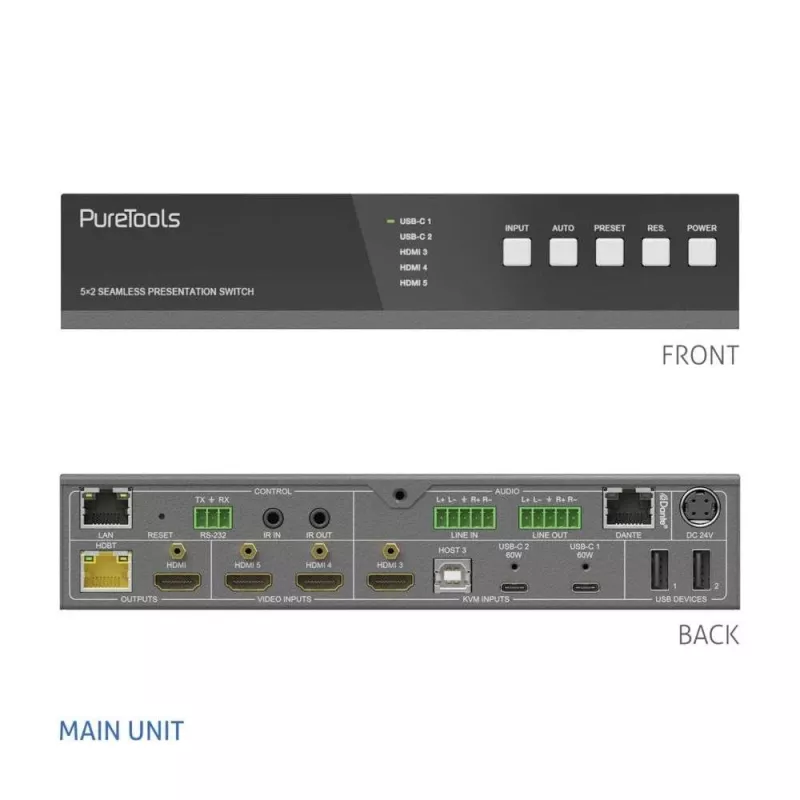

• Video Inputs: 3x HDMI, 2x USB-C (DisplayPort Alt Mode)
• Video Outputs: 2x HDMI
• Max Resolution: 4K UHD (3840x2160) @ 60Hz, 4:4:4
• HDCP: 2.2
• USB Host: 3x USB-B, 2x USB-C
• USB Peripherals: 4x USB 3.0 Type-A (up to 5 Gbps)
• Audio Output: 1x 3.5mm stereo jack
• Control: Front panel buttons, RS-232
• Power Supply: DC 12V/2A
• Housing: Metal enclosure

Recommendations

For optimal performance, use high-quality HDMI 2.0 cables and USB 3.0 cables. Ensure your source devices support USB-C with DisplayPort Alt Mode for full functionality.
