Puzdro a držiak Axis TQ1815-E univerzálny čierny biely 10-28V

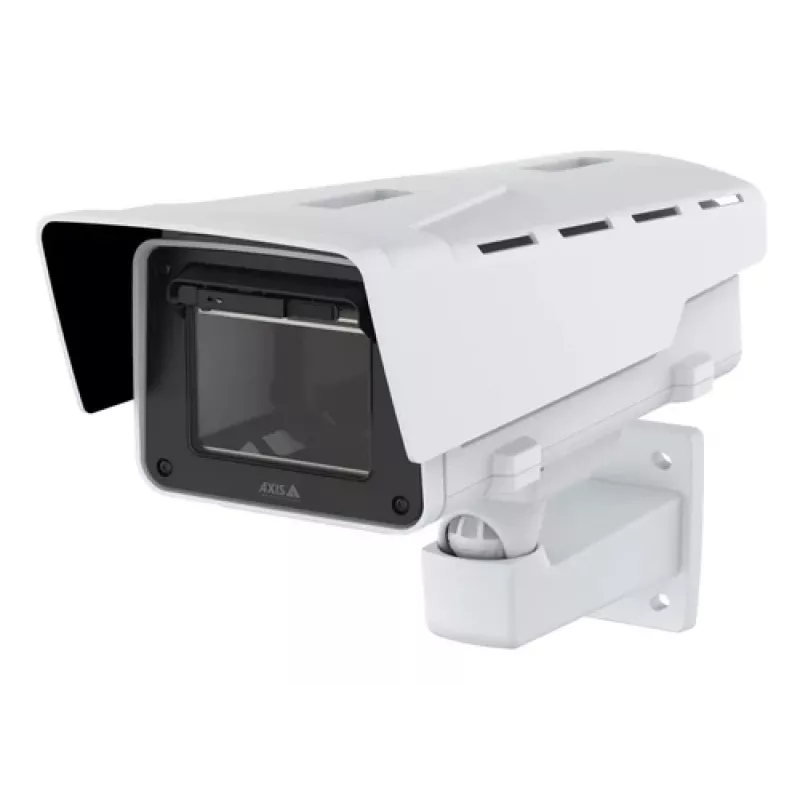

The AXIS TQ1815-E Housing is a durable outdoor housing and mount designed for selected Axis box cameras, including AXIS P13 and Q17 series. It features a built-in wiper, camera heater and fan, and a carbon nanotube window heater to maintain clear images in snow, rain, ice and fog. The housing is rated IP66/IP67/NEMA 4X and IK10, can operate from -40 °C to 60 °C, and resists hurricane-force winds. It supports multiple network and power options, including PoE and 10–28 V input, and is available in black or white with compact dimensions suitable for varied installations.

Advantages

This housing offers robust impact resistance and weather protection with IK10-rated glass and high ingress protection ratings, enabling reliable outdoor operation in harsh conditions. Its integrated heaters, fan and wiper maintain camera performance in extreme temperatures and precipitation. Installation is simplified by bottom-positioned electronics, IDC connectors and installation hooks that allow one-person mounting. The product is energy-efficient, compact, and uses bio-based and recycled materials to reduce weight and environmental impact while providing a lifespan designed to match multiple camera lifecycles.

Suitable for

Key specifications

How to use

Mount the AXIS TQ1815-E Housing on a suitable surface using the included mount and follow the installation instructions for secure attachment. Position the camera inside the housing and connect power and network using the available PoE or 10–28 V inputs and IDC connectors. Access the electronics kit by removing the top cover for wiring and configuration. Use the installation hooks to help pull cables during one-person mounting. Select and fit any compatible IR kit if required and configure the internal heater, fan and wiper settings according to camera and environmental needs.

Recommendations

For longest service life and optimal imaging, install the housing where the wiper can operate freely, ensure sealing surfaces are clean before closing the cover, and choose the appropriate IR kit for low-light scenarios. Verify compatibility with your specific Axis box camera model before installation.
