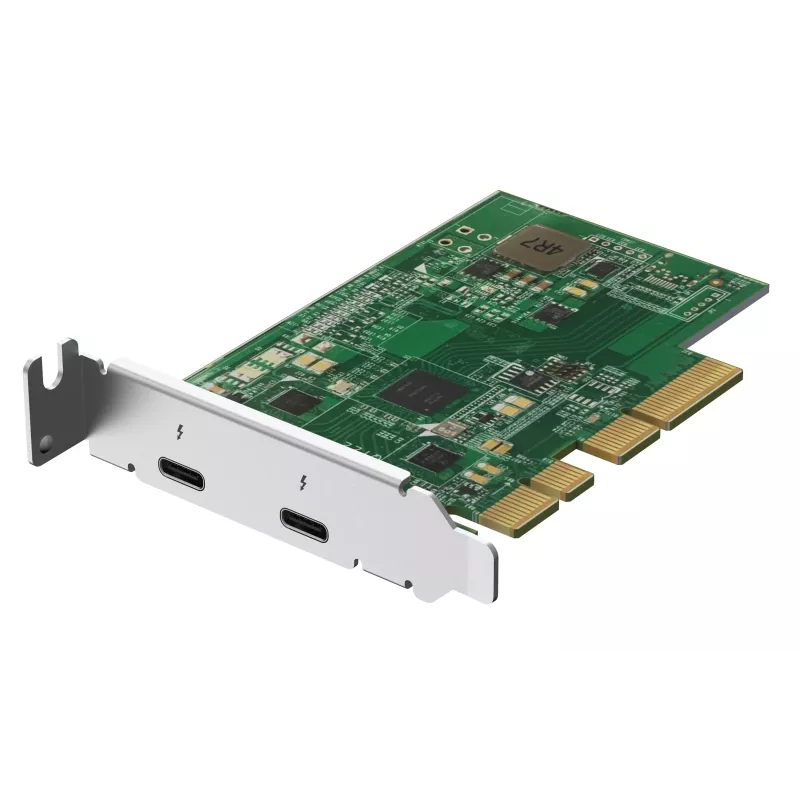

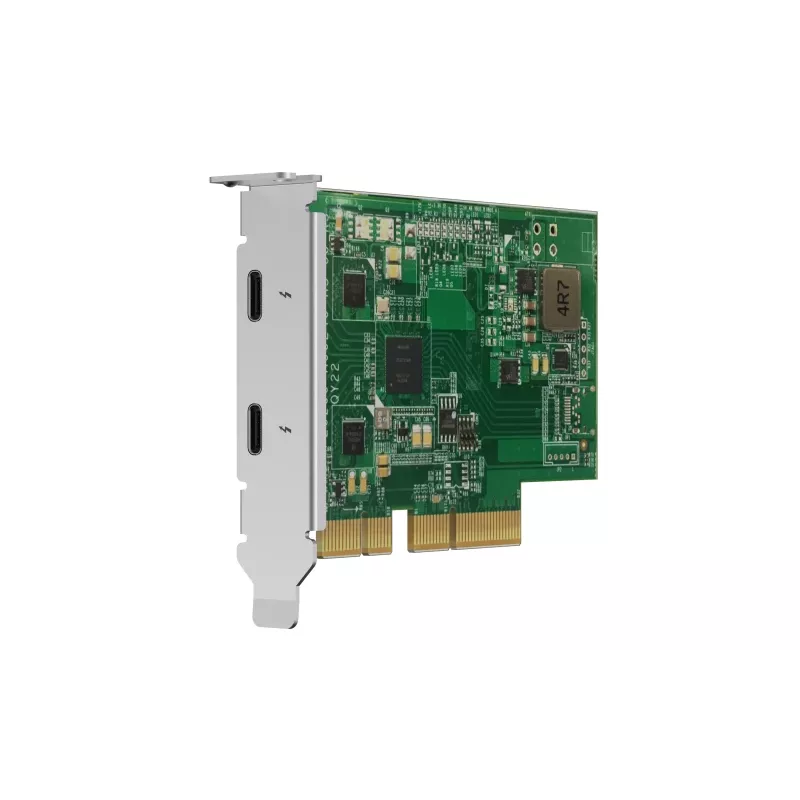

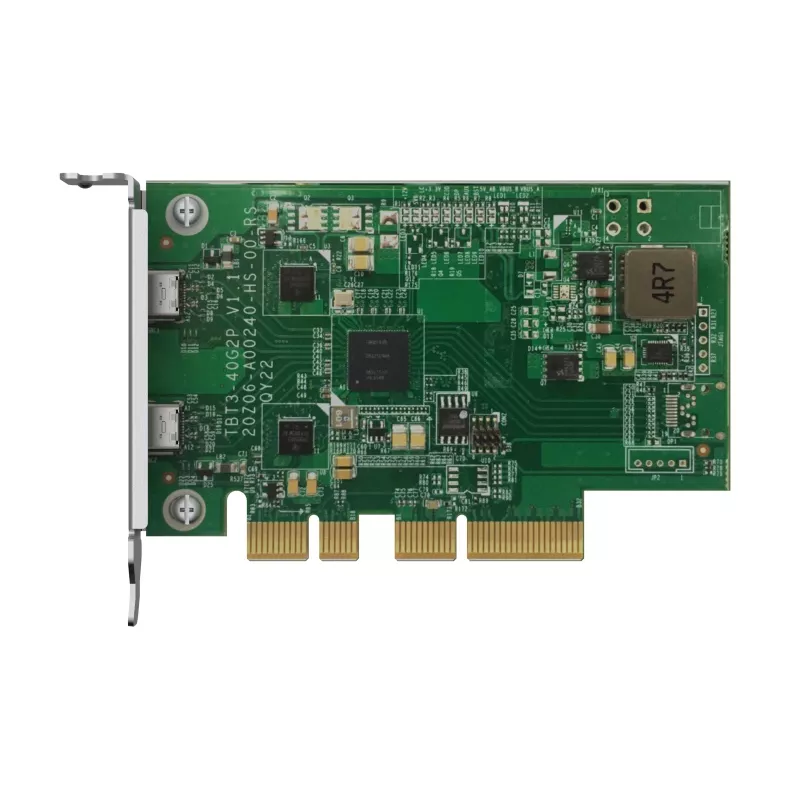

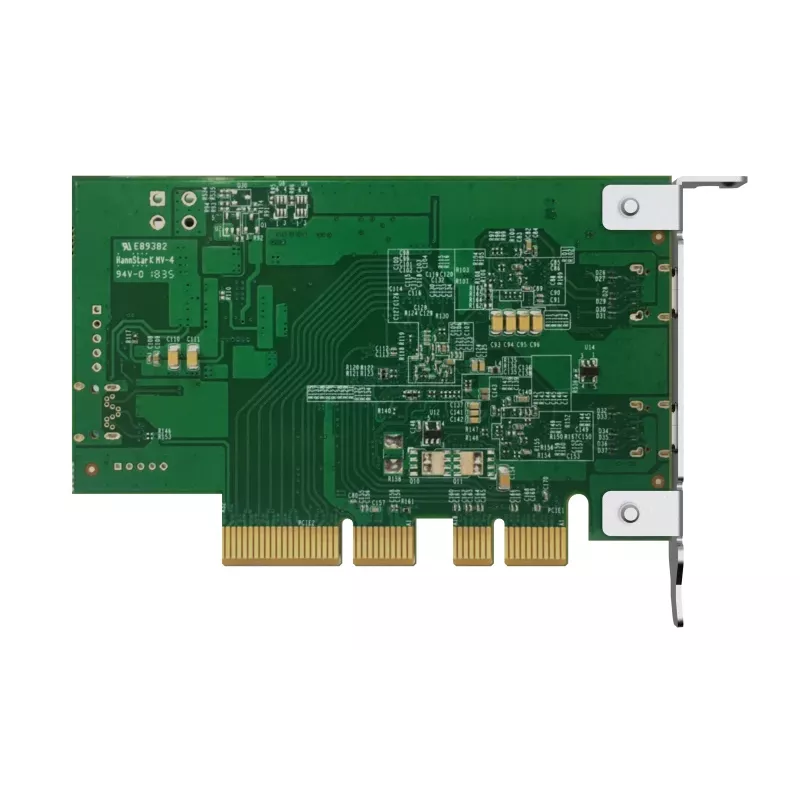

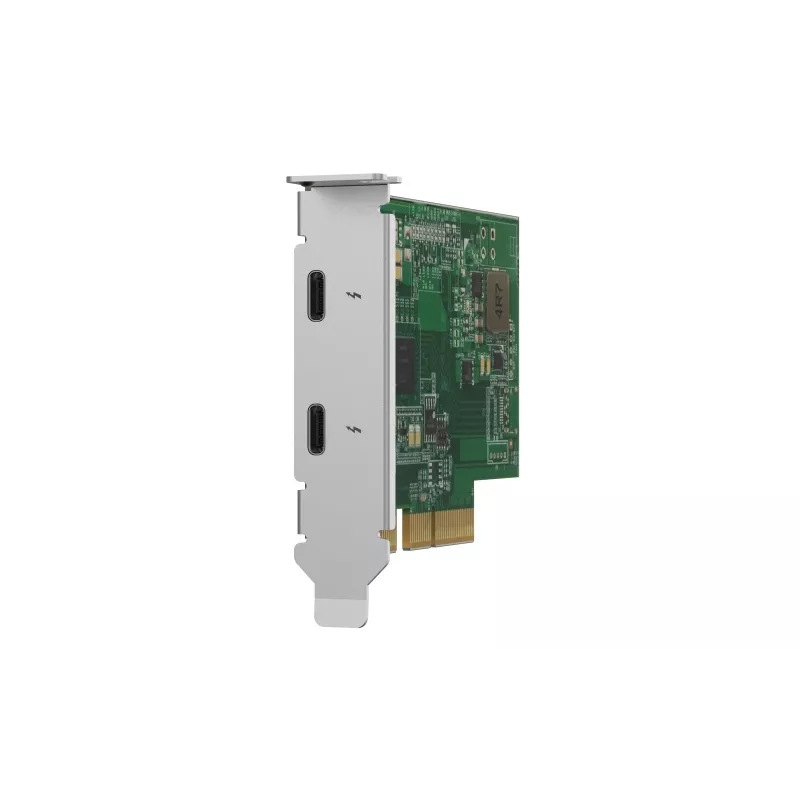

QNAP QXP-T32P rozširujúca karta/adapter interný Thunderbolt 3

The QNAP QXP-T32P is an internal Thunderbolt 3 interface card for NAS and storage servers that provides a PCIe host interface and Thunderbolt 3 output. Designed for both full-height and low-profile installations, the card delivers high-speed data transfer to accelerate tasks such as real-time 4K video editing and large file transfers.

Advantages

The QXP-T32P enables fast data throughput and low-latency connections between a NAS and Thunderbolt-enabled workstations, improving collaborative workflows for video editing and other I/O-intensive applications. Its compatibility with both full-height and low-profile chassis increases installation flexibility, while Thunderbolt 3 connectivity allows daisy-chaining of multiple devices and direct connection of high-performance external peripherals.

Suitable for

• Real-time 4K video editing and post-production workflows
• Multi-workstation collaborative editing environments (Final Cut Pro®, Adobe Premiere Pro®)
• High-speed file transfer between NAS and Thunderbolt-equipped computers
• Environments requiring daisy-chaining of Thunderbolt devices

Key specifications

• Model: QNAP QXP-T32P
• Host interface: PCIe
• Output interface: Thunderbolt 3 (USB-C)

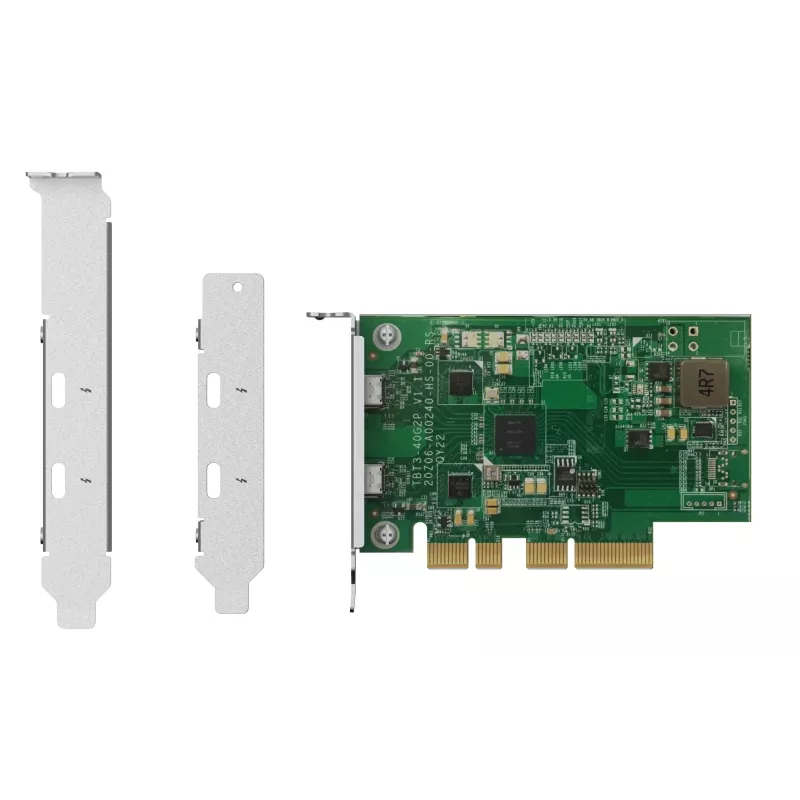

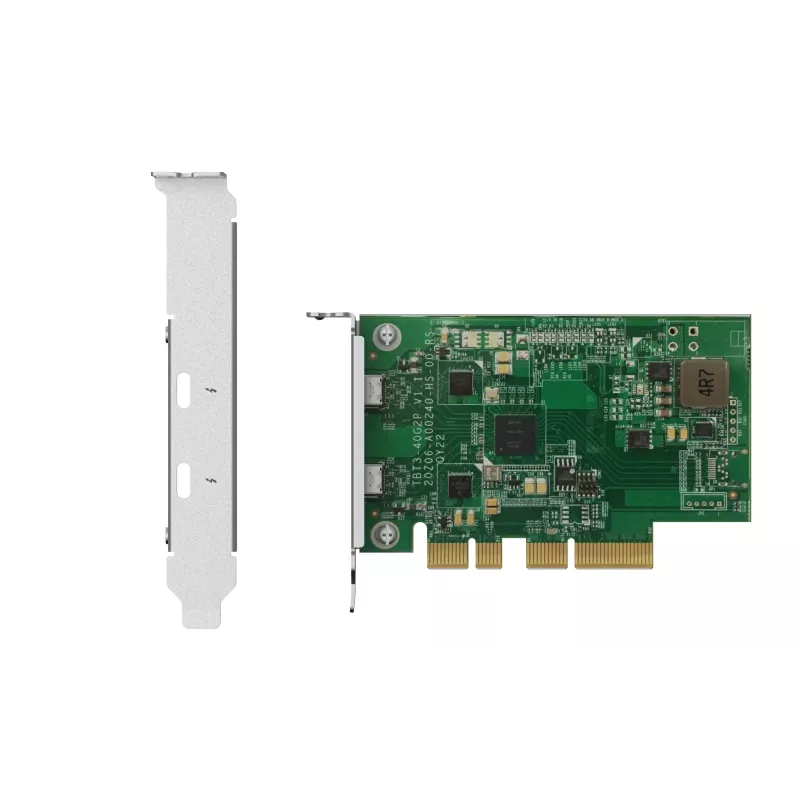

• Form factor: supports full-height and low-profile
• Internal: Yes
• EAN: 4713213518489

How to use

Install the QXP-T32P into an available PCIe slot of a compatible NAS or storage server following the device manufacturer’s installation guidelines. Connect a Thunderbolt 3 cable from the card’s USB-C port to a Thunderbolt-enabled computer or device. For collaborative video editing, configure SMB sharing on the NAS so Final Cut Pro® and Adobe Premiere Pro® workstations can access a centralized library on the NAS volume as if it were local storage. When connecting older Thunderbolt 2 Macs, use an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 adapter (adapter sold separately).

Recommendations

Use certified Thunderbolt 3 cables and ensure your NAS firmware and workstation drivers are up to date. For multi-workstation editing, store shared libraries on the NAS and enable SMB protocol support to minimize latency and maintain consistent access across workstations.
