QOLTEC LED spínaný napájací zdroj IP67 20W 12V 1,6A vodotesný

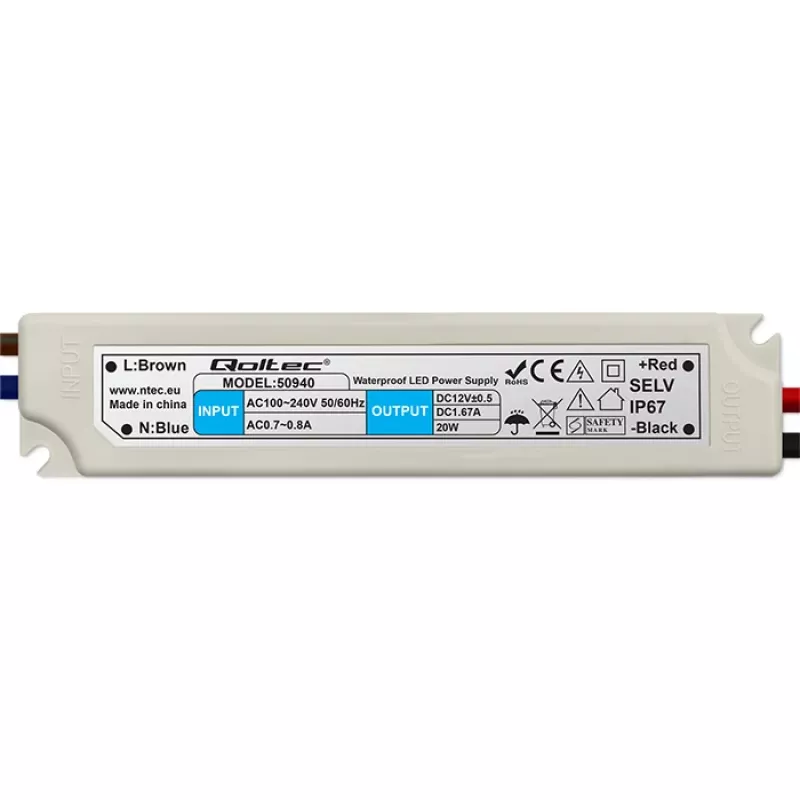

The QOLTEC LED Switching Power Supply is a high-quality, waterproof power adapter designed for indoor and outdoor LED lighting applications. With an IP67 rating, it is fully protected against dust and temporary immersion in water, making it ideal for use in damp or wet environments. This power supply delivers a stable 12V DC output at 1.6A (20W) and features a compact, fanless aluminum housing for passive cooling and long-lasting performance.

Advantages

This power supply offers reliable and efficient power conversion with over 85% efficiency, reducing energy waste and heat generation. Its IP67 waterproof rating ensures durability in harsh outdoor conditions, while built-in protection features (overload, short circuit, overvoltage, overheating) safeguard connected devices. The fanless design ensures silent operation, making it suitable for noise-sensitive areas.

Suitable for

• Indoor and outdoor LED strip lights
• LED signage and display lighting
• Landscape and garden lighting
• Security and accent lighting
• Any 12V DC LED application requiring waterproofing

Key specifications

• Product Type: LED Switching Power Supply
• Output Power: 20W
• Output Voltage: 12V DC
• Output Current: 1.6A
• Input Voltage: AC 100-240V, 50/60Hz
• Ingress Protection: IP67
• Efficiency: >85%
• Operating Temperature: -20°C to +50°C
• Housing Material: Aluminum
• Cooling: Passive (Fanless)
• Certifications: CE, RoHS
• Input Cable Length: Approx. 15 cm
• Output Cable Length: Approx. 15 cm

Recommendations

For optimal performance, ensure the power supply is installed in a well-ventilated area and not covered by insulating materials. Use appropriate gauge wiring for connections and verify that the total LED load does not exceed 20W. This unit is not dimmable unless used with a compatible dimmable LED driver.
