Rack konzola Secomp CL5708MW 17,3 inch (43,9 cm) LCD 1920×1080, USB/PS/2 klávesnica a myš, VGA, 1U, čierna

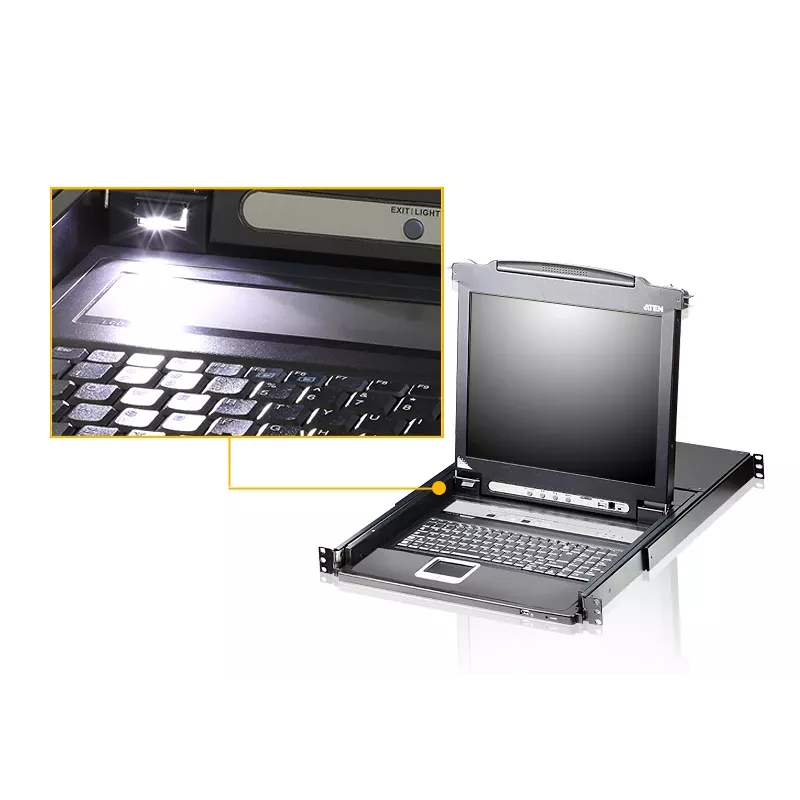

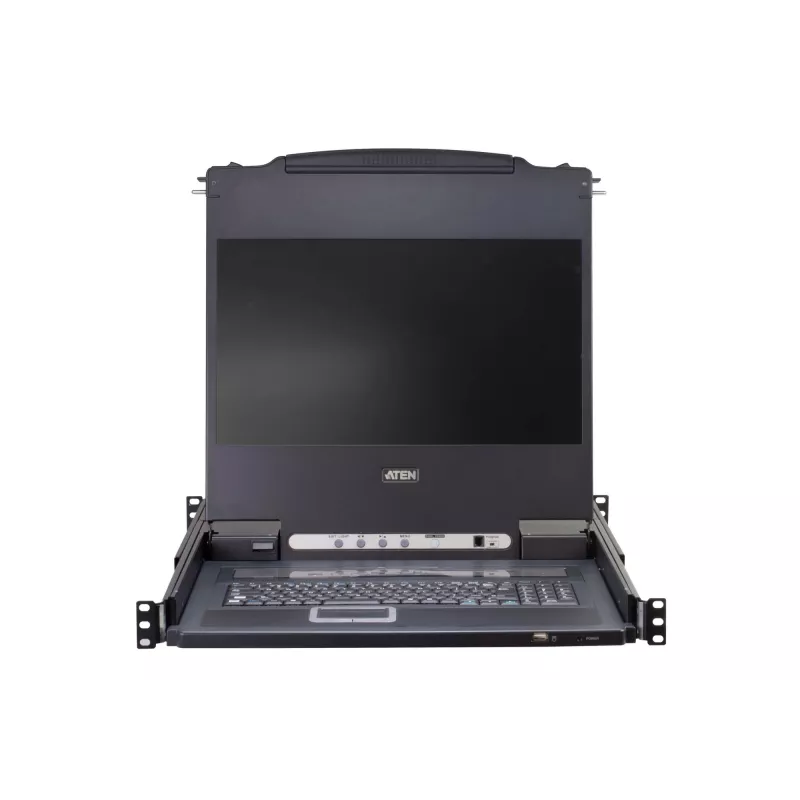

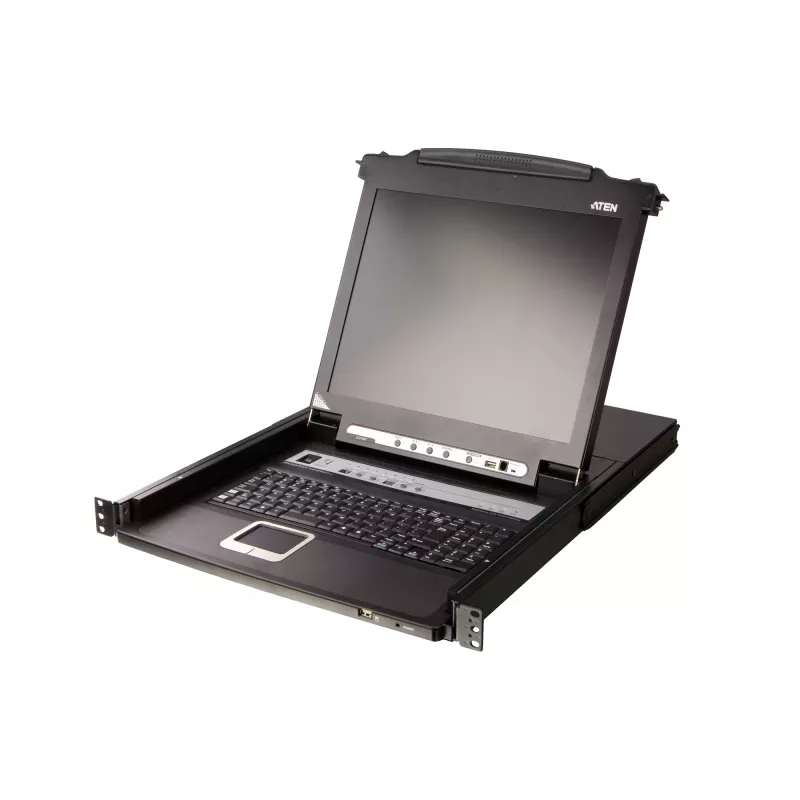

The Secomp CL5708MW Slideaway is a 1U rack-mountable LCD KVM console that integrates a 17.3" (43.9 cm) 1920×1080 LED-backlit monitor, USB/PS/2 keyboard and mouse (QWERTZ German layout), and touchpad into a sliding housing for server cabinet use. The CL5708 series allows a single console to control 8 or 16 computers and supports daisy-chaining up to 31 additional units, enabling control of up to 256 computers from one console. The unit supports VGA video input and is built from metal and plastic in a black finish. Typical power consumption is around 15.4 W.

Advantages

The CL5708MW provides a space-saving integrated solution for local server management by combining keyboard, video and mouse in a single 1U sliding housing with a high-resolution 17.3" monitor. It supports both USB and PS/2 interfaces and offers automatic interface detection and keyboard/mouse emulation to ensure smooth switching and simultaneous booting of multiple computers. The console supports daisy-chaining for large installations and includes on-screen display (OSD), front-panel controls, hotkeys and firmware upgrade capability across chained units.

Suitable for

• Local server management in data centers and server rooms
• Rack-mounted network closets and IT infrastructure cabinets
• Environments requiring centralized access to multiple servers (small to medium-sized installations)

Key specifications

• Model: Secomp CL5708MW
• LCD panel: 17.3" (43.9 cm) LED-backlit, 1920 × 1080 pixels, 250 cd/m², 800:1 contrast

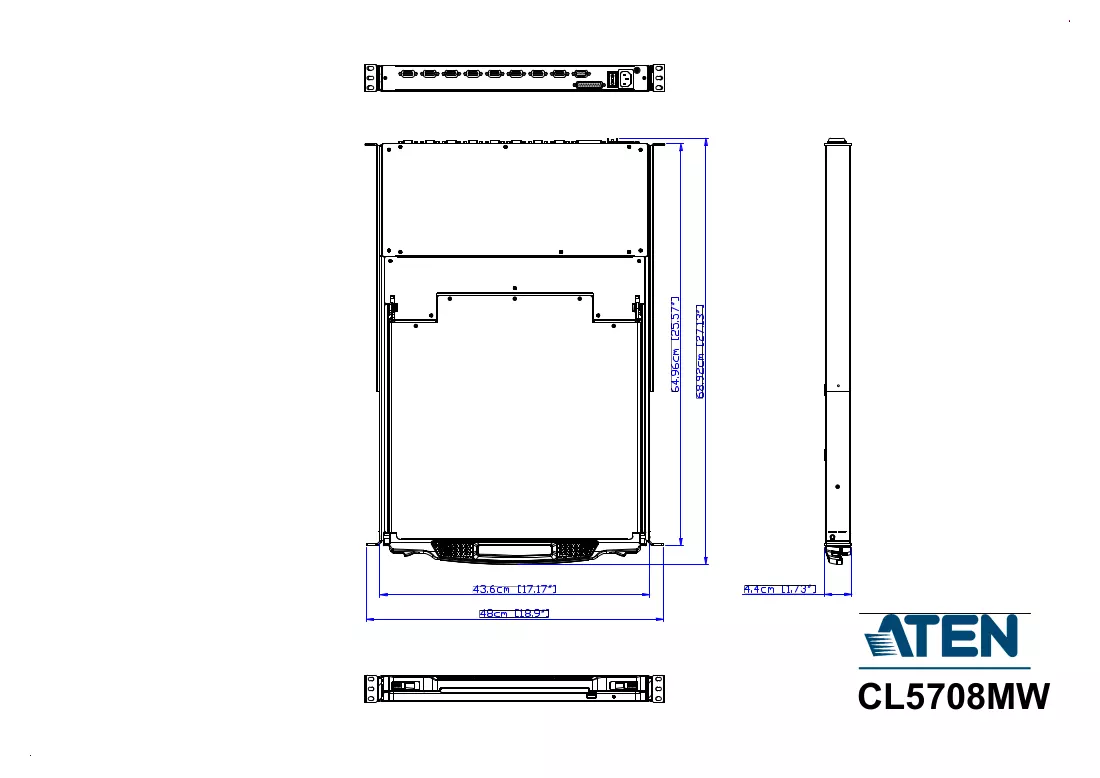

• Form factor: 1U rack-mountable Slideaway housing

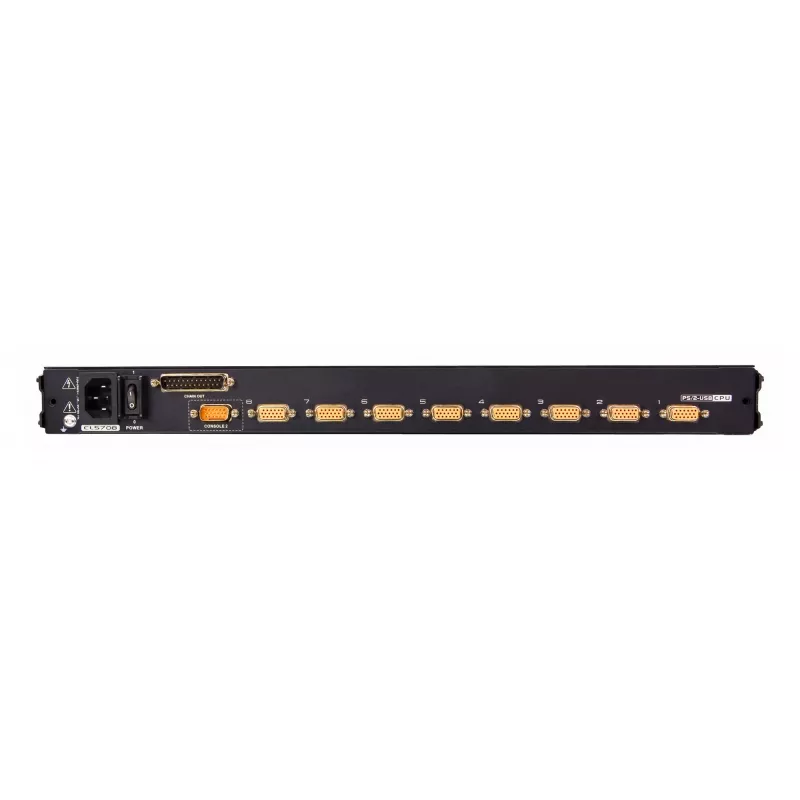

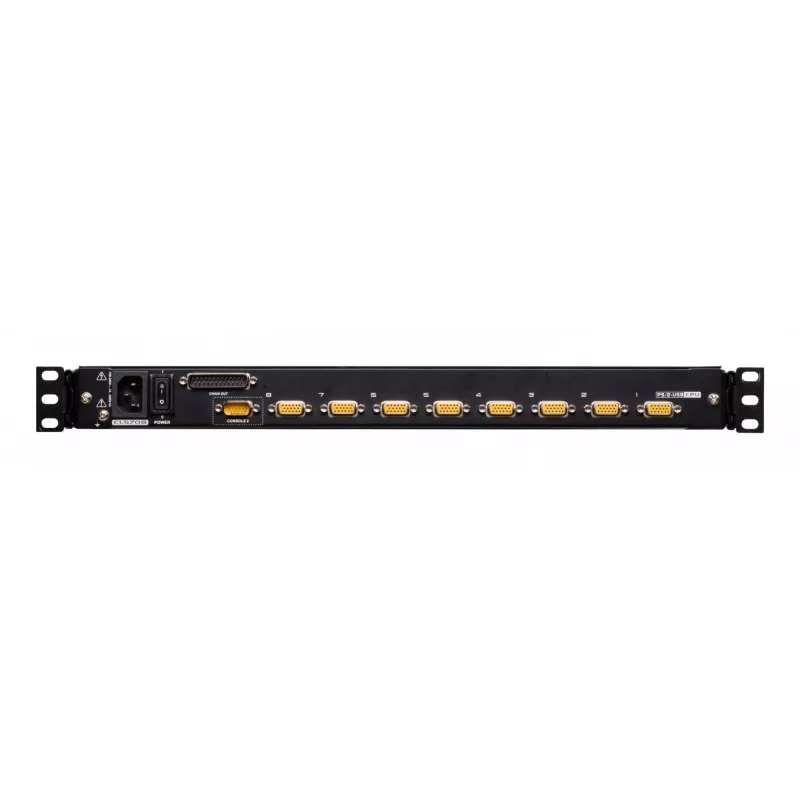

• Interfaces: USB and PS/2 for keyboard/mouse; VGA video input
• Keyboard layout: QWERTZ (German)
• Materials / color: Metal and plastic, black
• Control: Front-panel buttons, hotkeys, multilingual OSD
• Expandable: Daisy-chain up to 31 additional KVMs (control up to 256 computers)
• Security: Two-level password support (one admin, four users)
• Power consumption: Typical ~15.4 W

How to use

Install the CL5708MW into a 1U rack space and connect the console to servers using compatible KVM cables for USB or PS/2 keyboard and mouse and VGA video. Use the front-panel buttons, hotkeys or OSD menu to select target servers; the unit auto-detects PS/2 and USB interfaces and emulates keyboard and mouse to maintain operation during server boot. For larger setups, daisy-chain additional compatible CL5708 units using the provided daisy-chain ports to expand control up to 256 systems from the same console.

Recommendations

For reliable operation, use high-quality VGA and KVM cables, confirm keyboard layout settings in the OSD to match the QWERTZ physical layout, and keep firmware updated across all daisy-chained units when applying upgrades.
