Rack príslušenstvo Lanview RAD105WH

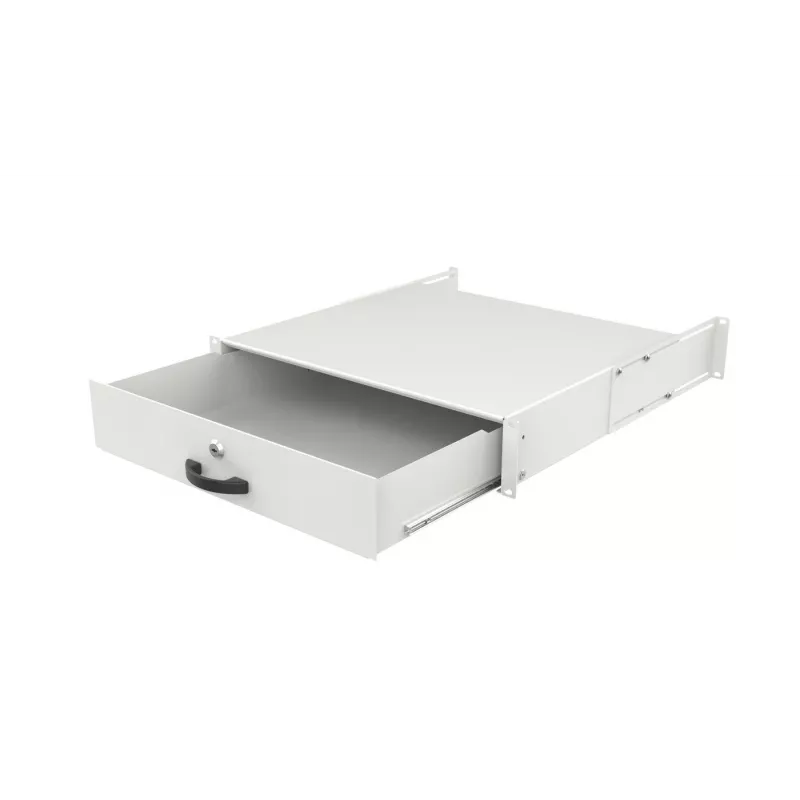

Lanview RAD105WH 19" lockable drawer module provides a secure, adaptable storage solution for standard 19" racks. The unit has external dimensions of 482 × 400 × 88 mm and is finished in RAL 7035. Constructed with extruded aluminium side panels, the drawer module offers a robust structure and high resistance while remaining compatible with common rack systems.

Advantages

The lockable design secures equipment and accessories inside the drawer while adjustable depth side brackets allow installation into racks of varying depths. Extruded aluminium side panels ensure strength and durability without adding excessive weight. The product is compatible with standard 19" cabinets and provides an organized storage option within server rooms and IT environments.

Suitable for

• Storage of tools, cables and small accessories in server racks
• Securing sensitive components or documentation inside 19" cabinets
• Use in data centres, network rooms and telecommunication cabinets

Key specifications

• Model: Lanview RAD105WH
• Dimensions (W×D×H): 482 × 400 × 88 mm
• Mounting: 19" rack compatible, adjustable depth side brackets
• Color: RAL 7035
• Material: extruded aluminium side panels
• Lock: lockable drawer
• MPN: RAD105WH
• EAN: 5715063317389

How to use

Install the drawer module into a standard 19" cabinet by aligning the front mounting flanges with the rack rails and adjusting the rear depth brackets to match the cabinet depth. Secure the module using appropriate rack screws. Place tools, cables or small devices inside the drawer and lock it to prevent unauthorised access. For maintenance or removal, unlock the drawer and detach the mounting screws.

Recommendations

Place heavier items close to the rear support and avoid exceeding typical rack load limits. Use appropriate rack hardware for secure installation and check that the cabinet depth is compatible with the adjustable brackets before mounting.
