Rack skriňa Lanberg SC01-5202-12B 2U čierna 3 ventilátory HDD+SSD

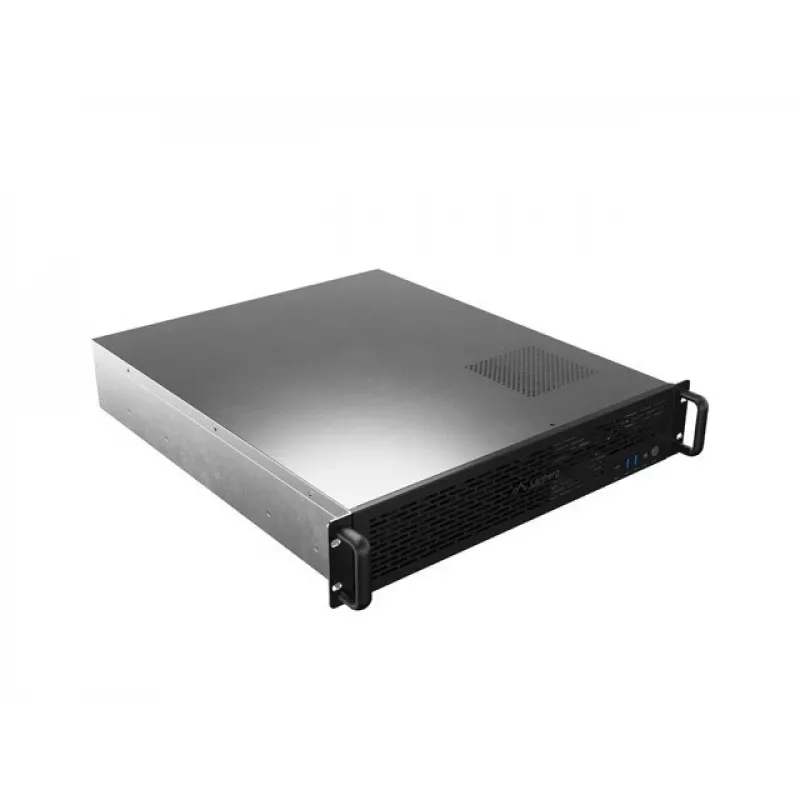

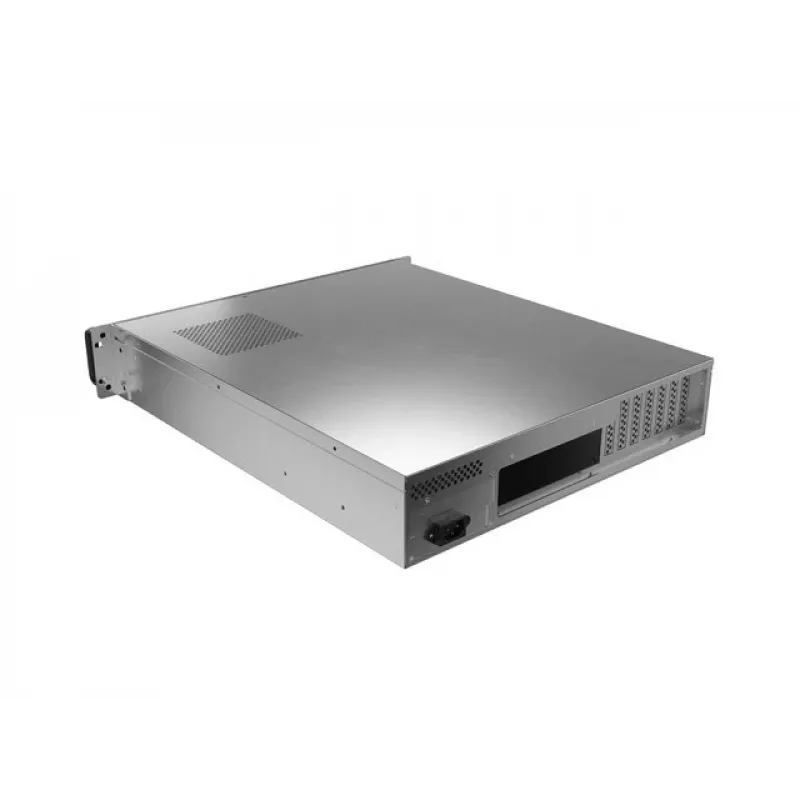

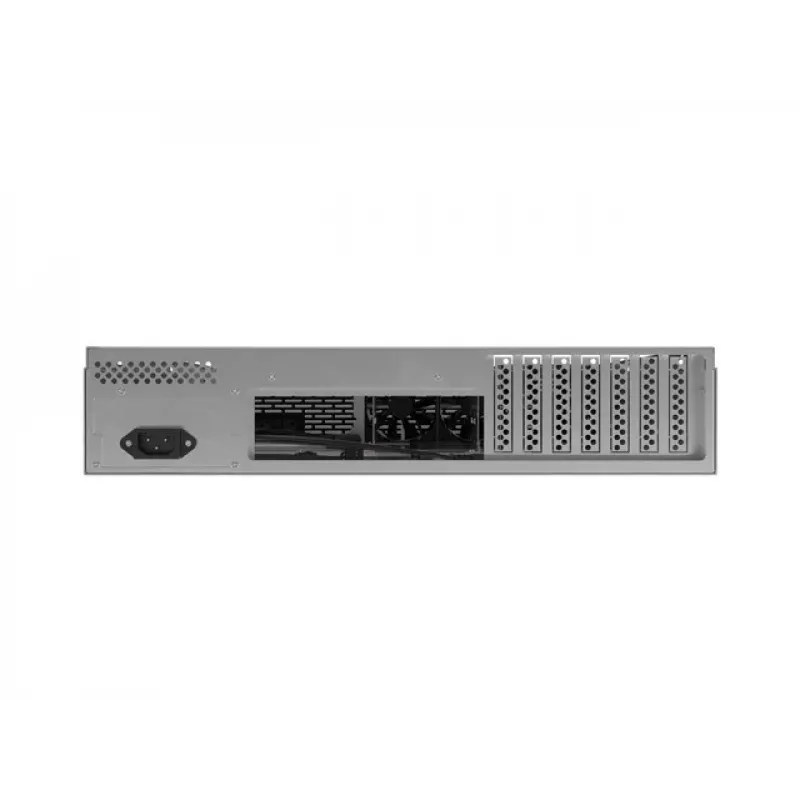

The Lanberg SC01-5202-12B is a 2U 19" rack server chassis designed for professional data centers and advanced individual users. It supports multiple motherboard form factors and offers a balance of expandability, airflow and robust construction to accommodate server and workstation configurations based on Intel Xeon and AMD Epyc platforms.

Advantages

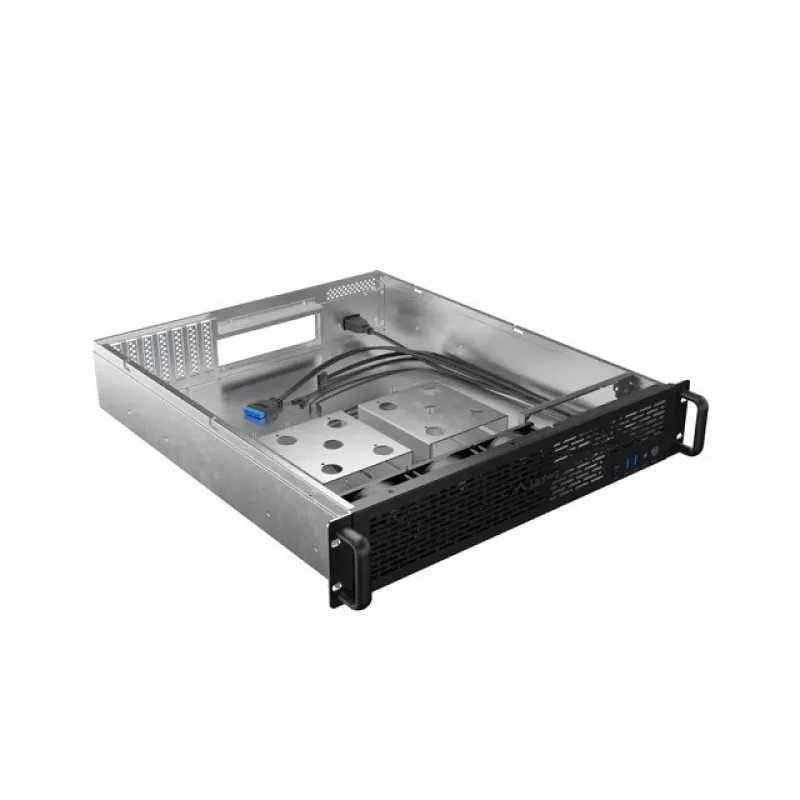

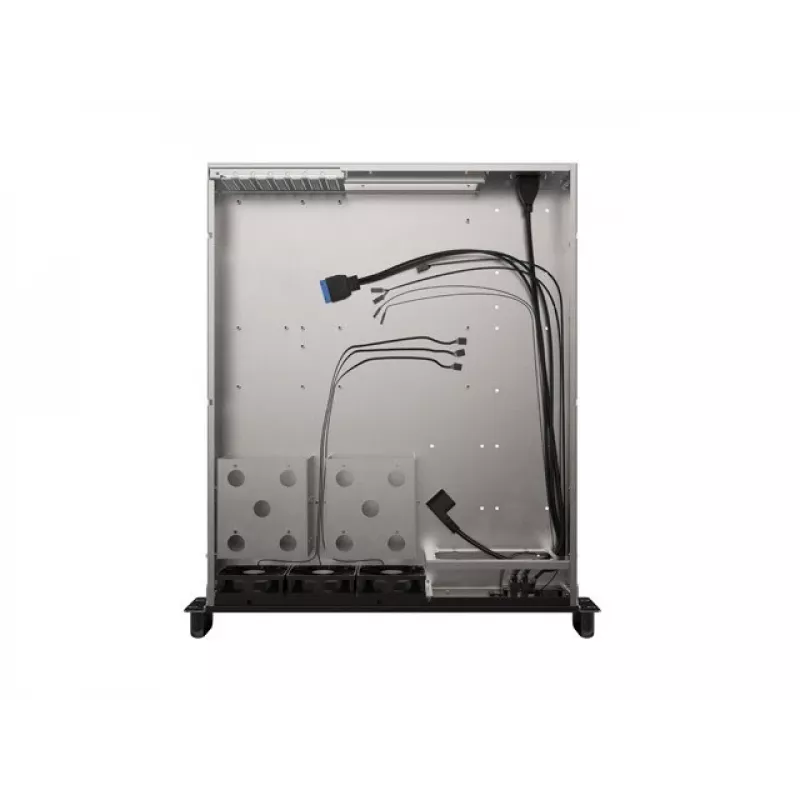

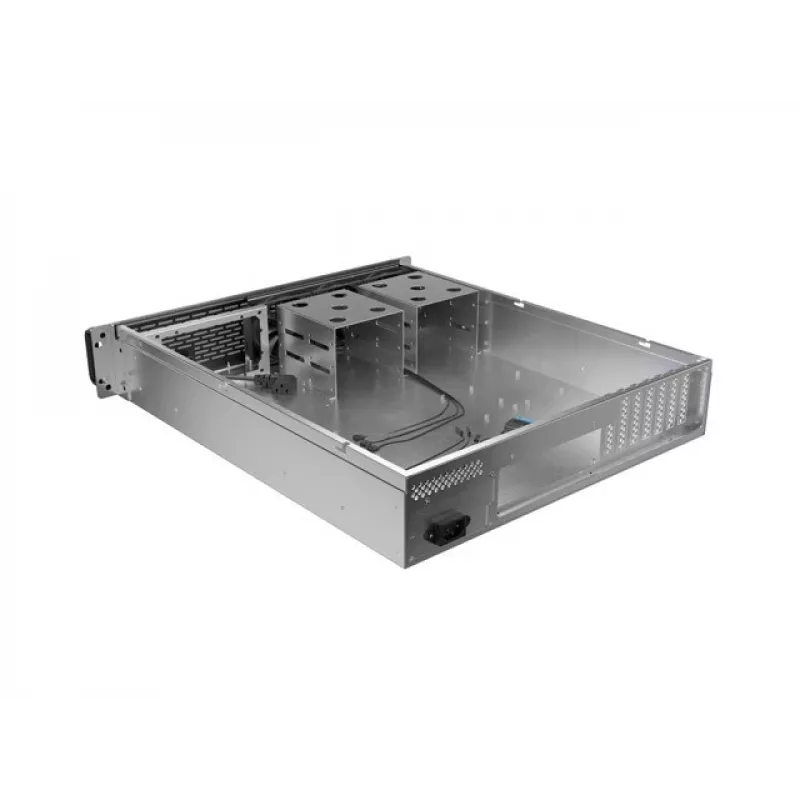

This rack chassis features a sturdy galvanized steel body (1.2 mm), a perforated front with a replaceable dust filter and three 80 mm PWM fans (900–2600 RPM, 26.1 dB) for effective airflow. It provides flexible drive mounting for up to four 2.5" drives and six 3.5" drives, front-panel access to two USB 3.0 Type-A ports, power and reset buttons, and a set of accessories including power supply adapters (ATX, SFX, Flex ATX 1U), a PWM splitter and a key lock for 19" rack installation.

Suitable for

• Small and medium business server racks
• Home lab and advanced individual server builds
• Workstations and compute nodes using ATX, Micro-ATX, ITX or SSI CEB motherboards
• Storage-focused systems requiring multiple HDD/SSD bays

Key specifications

• Model: Lanberg SC01-5202-12B
• Form factor: 2U 19" rack chassis
• Supported motherboards: ATX, Micro-ATX, ITX, SSI CEB
• Drive bays: up to 4 × 2.5" and 6 × 3.5"
• Cooling: 3 × 80 mm PWM fans (900–2600 RPM, 26.1 dB)

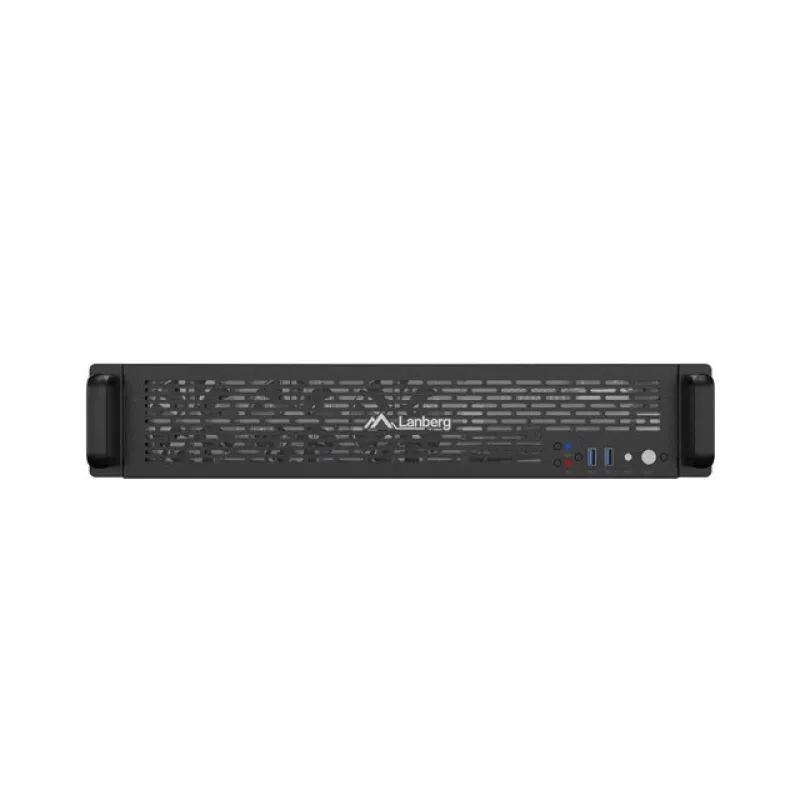

• Front I/O: 2 × USB 3.0 Type-A, Power and Reset buttons
• Construction: galvanized steel, 1.2 mm

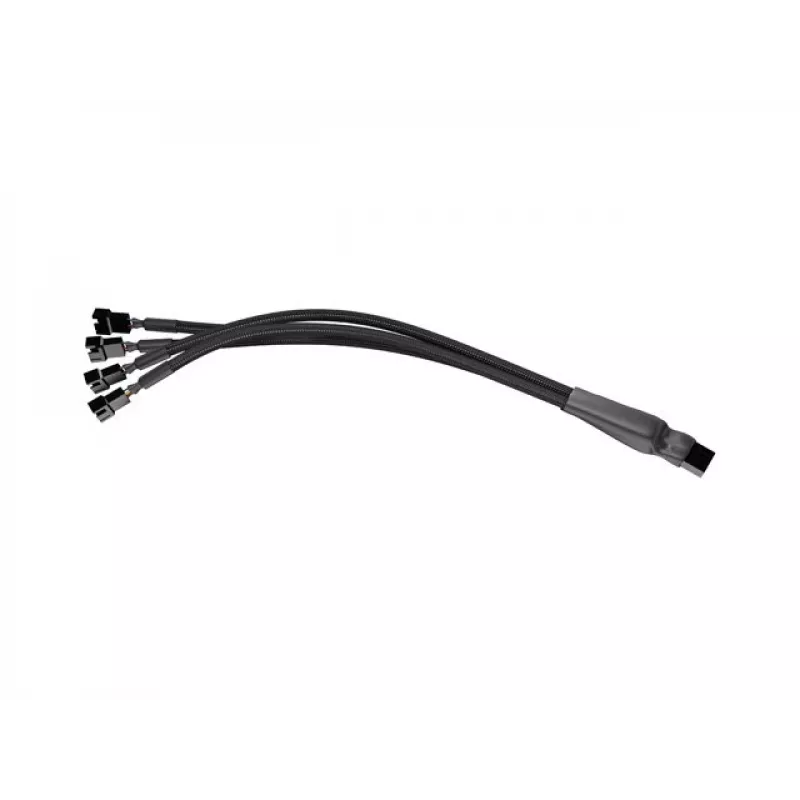

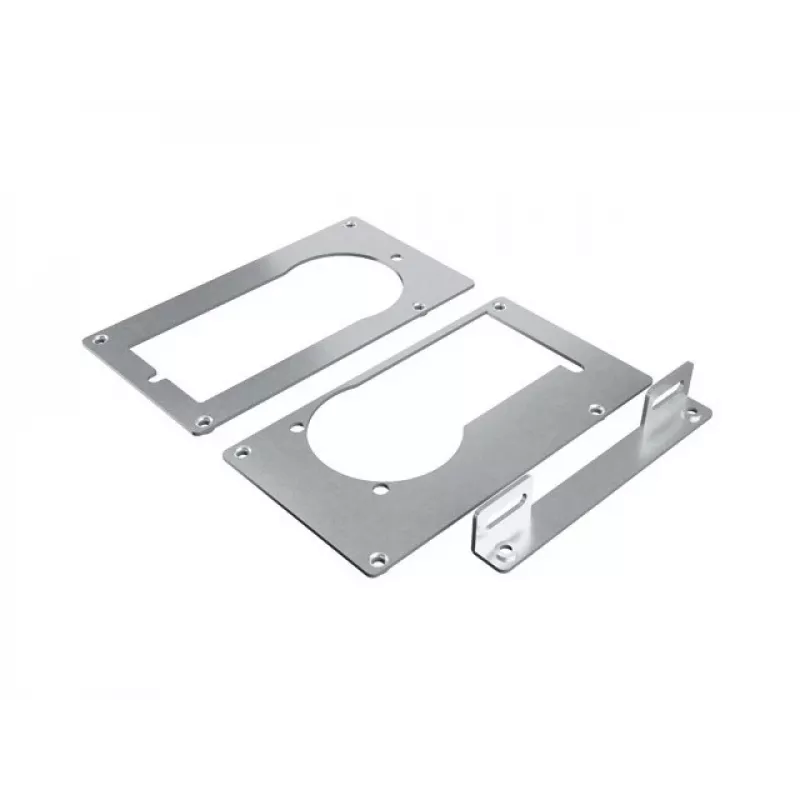

• Accessories: ATX/SFX/Flex ATX 1U power adapters, 1 × PWM splitter, key lock
• Dimensions (approx.): 430 mm (W) × 520 mm (D) × 89 mm (H)
• Color: Black

How to use

Install a compatible motherboard (ATX, Micro-ATX, ITX or SSI CEB) and secure the chosen power supply using the included adapters. Mount storage drives in the provided 2.5" and 3.5" bays and connect them to the motherboard. Use the front-panel USB 3.0 ports for quick access to external drives or maintenance tools. Ensure the front dust filter is fitted and fans are connected via the PWM splitter to the motherboard or a fan controller to allow automatic speed control.

Recommendations

For reliable operation, place the chassis in a ventilated rack environment, check airflow paths regularly, and replace or clean the front dust filter periodically. When configuring heavy storage or high‑TDP CPUs, verify that fan profiles and rack cooling capacity are adequate to maintain safe operating temperatures.
