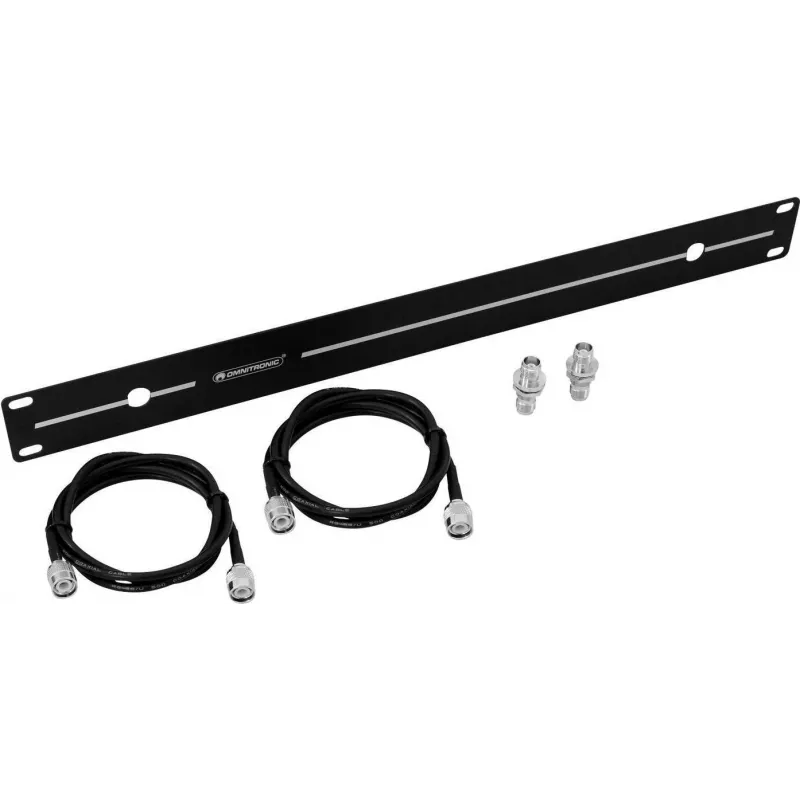

Rackmount set Omnitronic TNC set 13063050 19" 1HE

Omnitronic TNC-Set 13063050 19-inch 1U is a rackmount set engineered to mount compatible 19-inch devices into a standard 1U rack space. The set includes the necessary mounting brackets and hardware to secure audio, broadcast, AV, or IT equipment in server racks, studio racks or wall-mount frames. Designed for installations where reliable, space-saving mounting is required, the rackmount set supports straightforward installation and stable housing of one-rack-unit devices.

Advantages

The rackmount set provides a compact 1U mounting solution that preserves rack space while offering stable fixation of installed devices. Its brackets and fastening hardware are made to match standard 19-inch rack hole spacing, ensuring compatibility with a wide range of professional and consumer equipment. The design reduces vibration and movement in stacked installations and maintains a uniform rack appearance, simplifying cable routing and system organization.

Suitable for

Key specifications

How to use

Attach the supplied brackets to the device’s front or sides according to the device’s mounting points, align the brackets with the rack’s 19-inch mounting rails, and secure using the supplied screws and nuts. Verify that the device sits level and that fasteners are tightened to prevent movement. Ensure proper spacing for ventilation and cable access; when mounting multiple units, allow clearance for airflow and service access.

Recommendations

Before installation, check device mounting points and rack rail alignment; use compatible screw sizes and avoid overtightening to prevent thread damage. For heavy or long devices, support the unit during installation to prevent strain on brackets. Maintain airflow around mounted equipment and periodically inspect fasteners for tightness in high-vibration environments.
