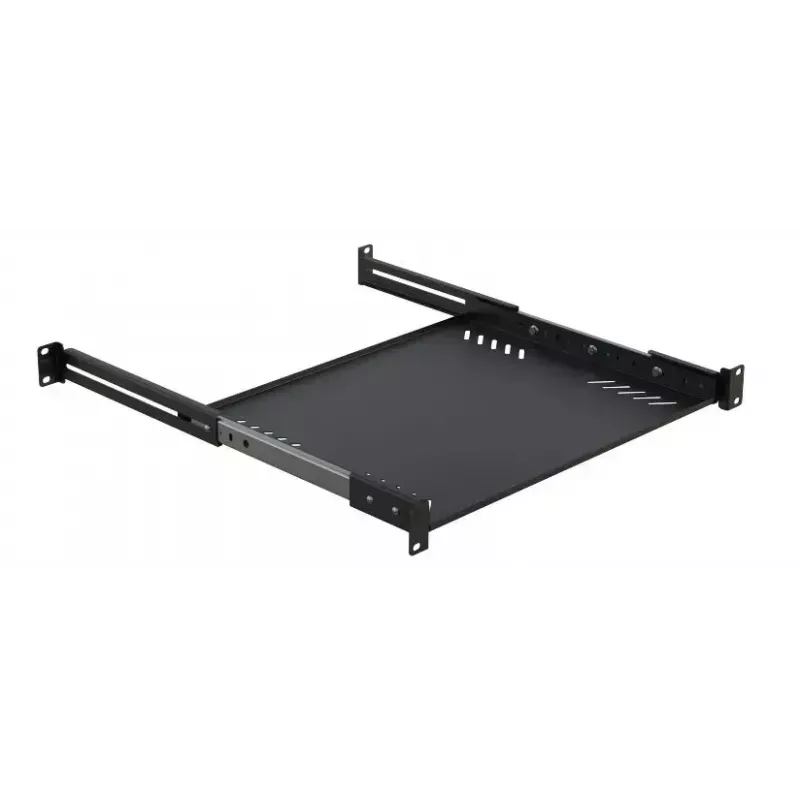

Racková polica Lanview LVR1U-SLIDE-600MM-BL — 1HE výsuvná 600 mm čierna

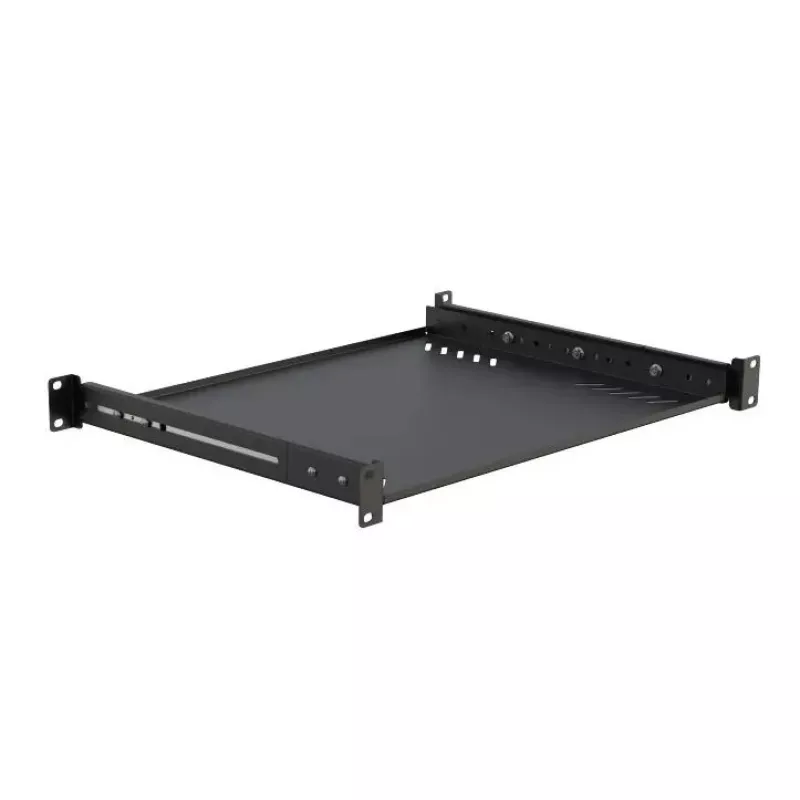

19" sliding shelf for 1U, designed for cabinets with 600 mm depth. The shelf measures 482 mm wide, 355.5 mm deep and 45 mm high, and is finished in RAL 9005. It features four mounting points, slides within the cabinet depth and includes ventilation slots to promote airflow. Maximum static load is 30 kg.

Advantages

The sliding shelf is compatible with LOGON cabinets and provides easy access to mounted equipment thanks to its sliding mechanism. Ventilation slots help maintain airflow around devices. The compact 1U height preserves rack space while allowing secure mounting at four connection points. The black RAL 9005 finish ensures a uniform appearance with standard cabinet interiors.

Key specifications

• Form factor: 19" 1U sliding shelf
• Compatible cabinet depth: 600 mm
• Dimensions (W x D x H): 482 x 355.5 x 45 mm
• Maximum static load: 30 kg
• Color: RAL 9005 (black)
• Mounting points: 4 connection points
• Features: sliding function and ventilation slots

How to use

Install the shelf into a compatible LOGON 19" cabinet at the desired U position using the four connection points. Slide the shelf in and out as needed to access mounted equipment; ensure the cabinet depth is 600 mm to allow full extension. Place devices evenly on the shelf and do not exceed the 30 kg maximum static load. Keep ventilation slots unobstructed to maintain airflow.

Recommendations

Verify cabinet compatibility with LOGON mounting standards and available depth before installation. For heavier or sensitive equipment, consider additional support or securing methods to prevent movement during sliding operations.
