Racková skriňa Lanview RWMIP55W16U60B 16U IP55 čierna 46kg

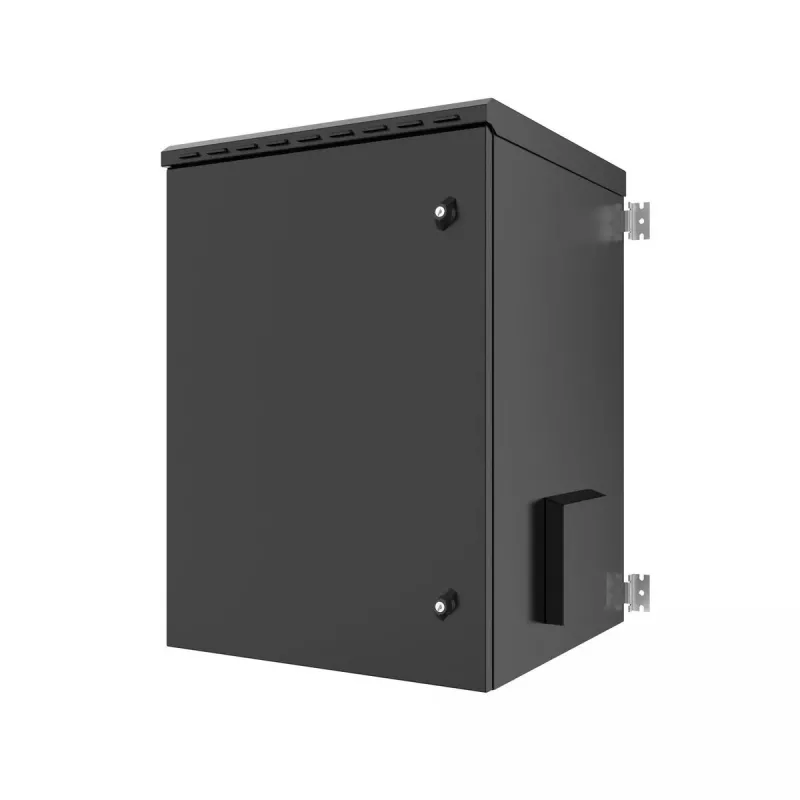

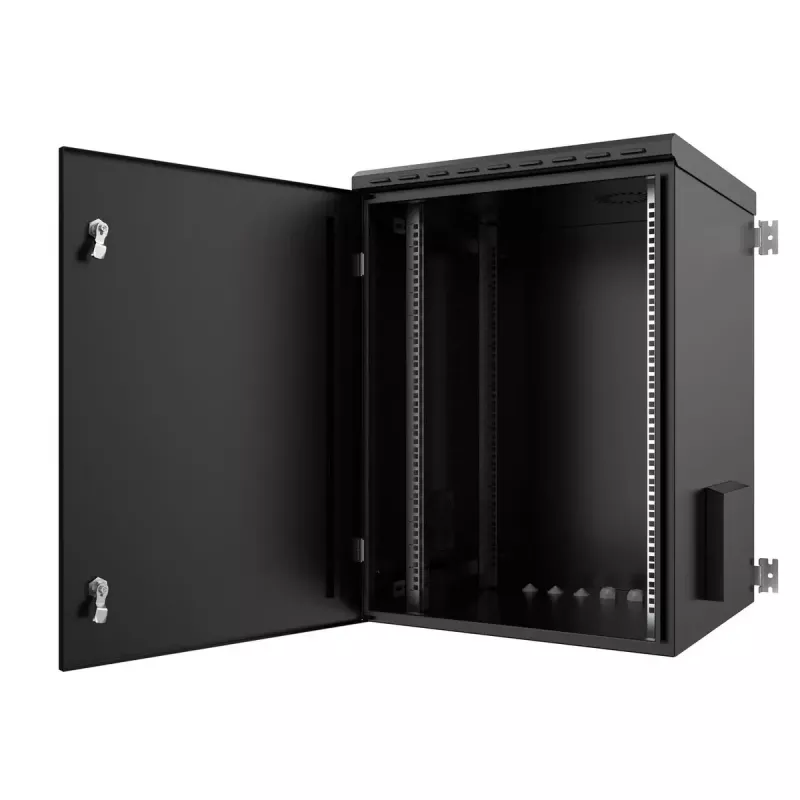

The Lanview RWMIP55W16U60B is a 16U IP55-rated 19" rack cabinet in black, with external dimensions of 600 x 600 x 810 mm and a weight of 46 kg. It is designed to house 19" devices and equipment using four device mounting rails in the 600×600 format, and its construction provides dust and splash protection suitable for harsher environments.

Advantages

The cabinet offers IP55 protection for dust and water resistance, removable bottom closure and dense cable entry options including one PG48 gland, two PG21 glands and three 28 mm PVC blind plugs. It includes a hinged top cover for easy access to fan modules, 125×125 mm dust filters on both sides for passive ventilation, and roof louvers to allow hot air to exhaust. Its 16U capacity and standard 19" mounting rails make it compatible with common network and server equipment.

Suitable for

• Network equipment and switches
• Small server or rack-mount appliances
• Environments requiring IP55 protection (dusty or splash-prone areas)
• Installations needing top fan access and passive side filtration

Key specifications

• Model: RWMIP55W16U60B
• Rack capacity: 16U
• IP rating: IP55
• Dimensions (W×D×H): 600 × 600 × 810 mm
• Weight: 46 kg
• Colour: Black
• Device mounting: 4 mounting rails (600×600 cabinets)
• Cable entries: 1 × PG48 gland, 2 × PG21 glands, 3 × 28 mm PVC blind plugs
• Ventilation: 125×125 mm side dust filters and roof louvers

How to use

Install rack-mount devices on the provided 19" mounting rails and secure them according to the equipment manufacturer's instructions. Use the detachable bottom closure and the provided cable glands or blind plugs to route and seal cables entering from the floor. Open the hinged top cover to access and service fan modules. Keep the side dust filters in place for passive airflow and clean them periodically to maintain ventilation efficiency.

Recommendations

Place the cabinet on a stable, level surface and ensure sufficient clearance above the roof louvers for effective hot-air exhaust. Regularly inspect and clean dust filters and check cable gland seals to preserve the IP55 protection. Follow individual device ventilation and mounting guidelines to avoid overheating and ensure secure installation.
