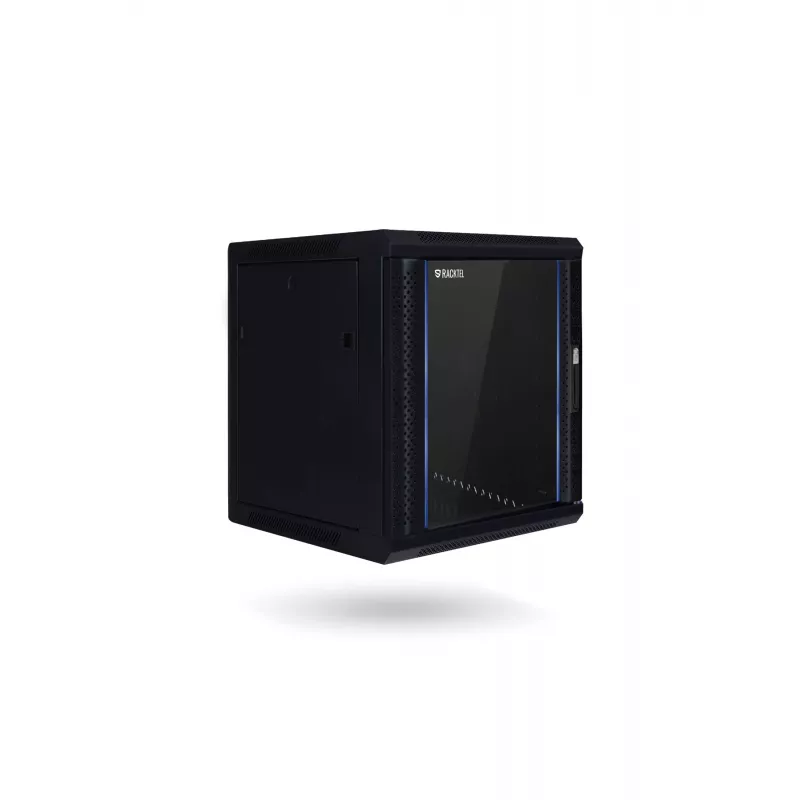

RACKTEL RL-4512WR 12U 600x450 nástenný rack, čierny

The RACKTEL RL-4512WR is a robust 12U wall-mount rack cabinet designed for secure and organized installation of 19-inch network and IT equipment. With external dimensions of 600x450 mm (WxD) and a height of 635 mm, this flat-pack (self-assembly) cabinet offers a practical solution for small to medium-sized server rooms, offices, and retail environments. Constructed from SPCC cold-rolled steel with a black (RAL 9005) finish, it provides reliable protection and a professional appearance.

Advantages

This cabinet combines space efficiency with high load capacity (up to 60 kg) and flexible cable management. The tempered glass front door with perforated steel frame allows equipment visibility while ensuring adequate airflow. Removable, lockable side panels and a lockable front door enhance security. Adjustable front and rear mounting rails accommodate various equipment depths (usable depth 380 mm). Passive ventilation slots and fan-ready cutouts on the top panel support thermal management.

Suitable for

• Network switches, patch panels, and routers
• Small server installations
• Audio/video equipment in commercial settings
• IT infrastructure in offices, schools, and retail spaces

Key specifications

• Rack Units: 12U
• Mounting Type: Wall-Mount
• External Dimensions (WxDxH): 600 x 450 x 635 mm
• Internal Usable Depth: 380 mm
• Material: SPCC Cold Rolled Steel
• Front Door: Tempered Glass with Perforated Steel Frame
• Side Panels: Removable, Lockable Steel
• Rear Panel: Solid Steel
• Load Capacity: 60 kg
• Cable Entry: Top and Bottom
• Ventilation: Passive slots, fan-ready cutouts (top)
• Color: Black (RAL 9005)
• Security: Lockable Front Door and Side Panels
• Adjustable Mounting Rails: Front and Rear
• IP Rating: IP20
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure the wall is capable of supporting the cabinet's full load. Use appropriate wall anchors (not included). Consider adding optional fans for active cooling if deploying high-density equipment.
